Telescoping Pivoting Adjustable Jib | Haugen Attachments

Vertical and Horizontal Adjusting Telehandler and Forklift Jib

Introducing Haugen's newest product, the Telescoping Pivoting Adjustable Jib. Made in America, this jib offers an extended reach of 12 feet and a maximum capacity of 2050lbs with an adjustable angle of up to 35 degrees. Take your operations to new heights with this cutting-edge addition to Haugen's lineup.

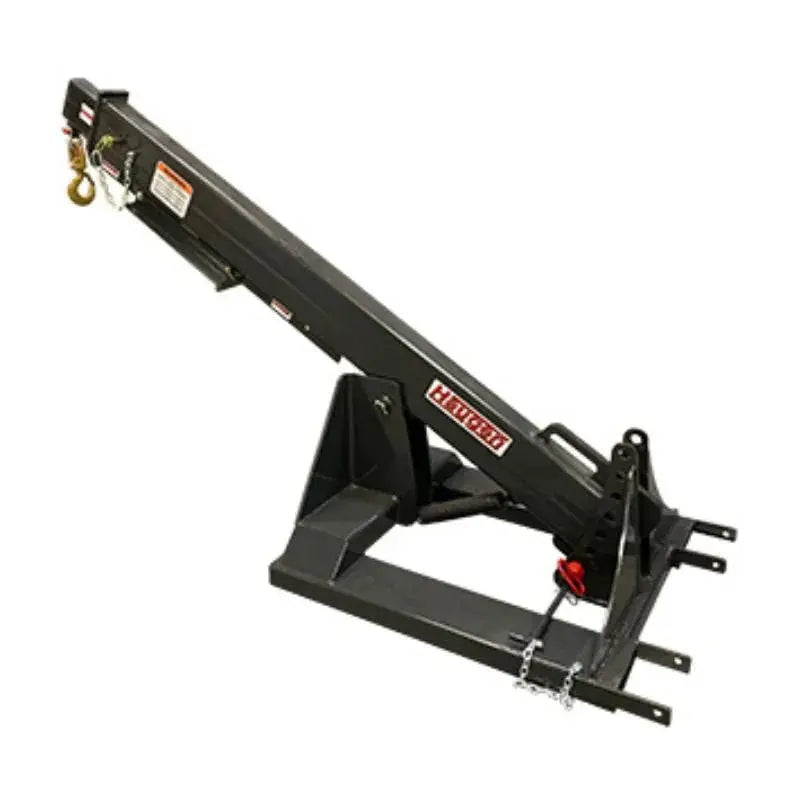

Telescoping Pivoting Adjustable Jib

• Adjustable Jib Booms for Forklifts
• Spring assisted angle adjustment up to 35 degrees

• Positions ranging from 48" to 12 feet
• Comes with one 5 ton Crosby Swivel Hook
• Position indicators ensure the operator is using the correct load chart
• Capacity at 12 feet is 2050 pounds
• Standard fork pocket model weighs 645 pounds
• Larger fork pocket model weighs 851 pounds
