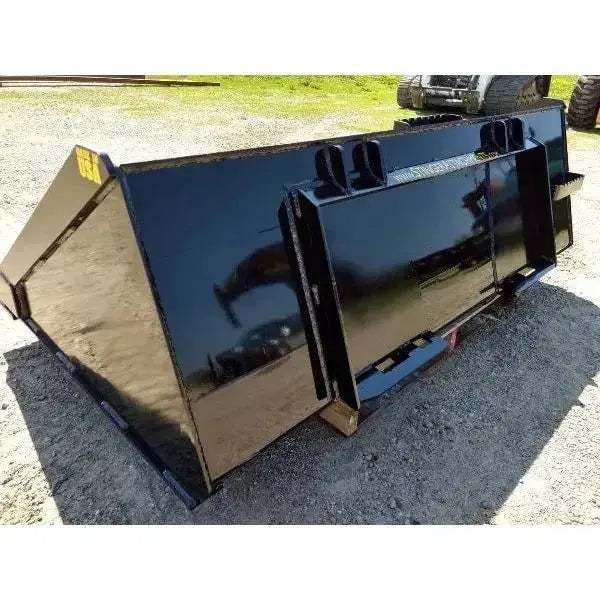

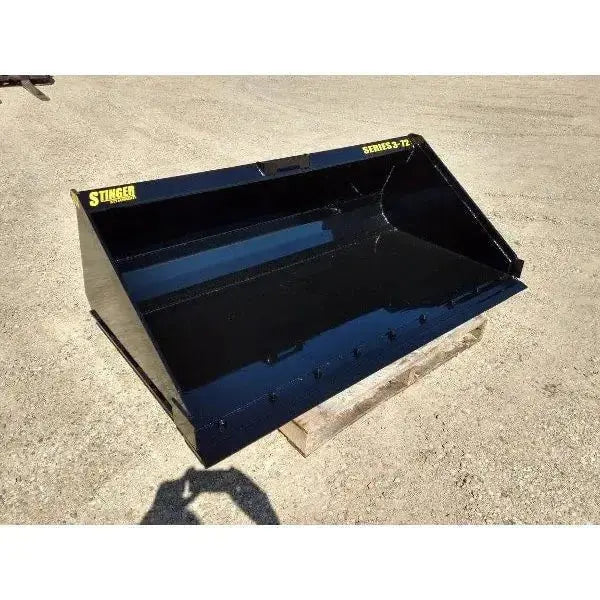

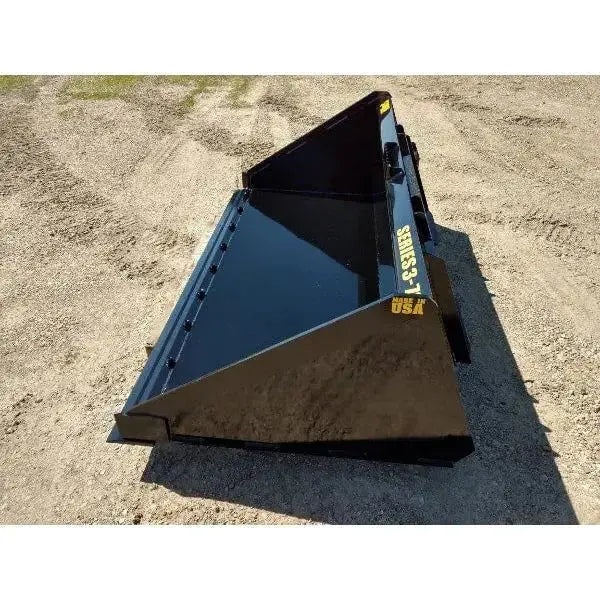

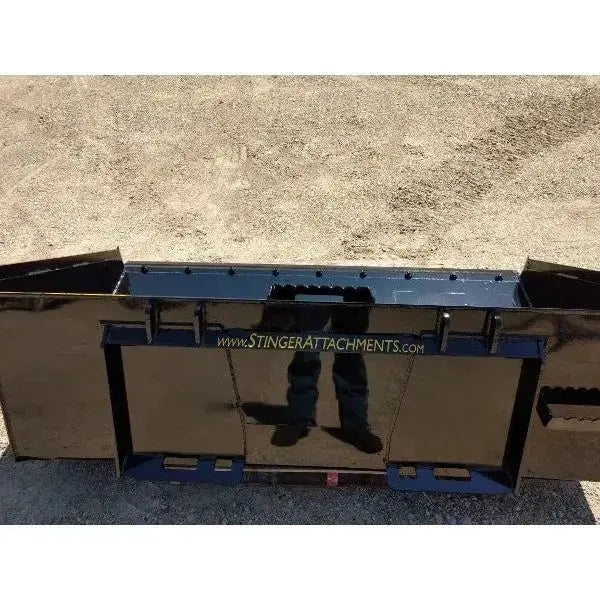

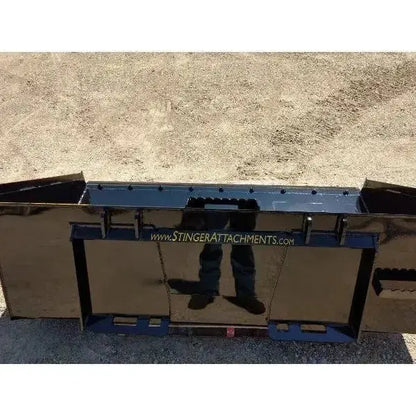

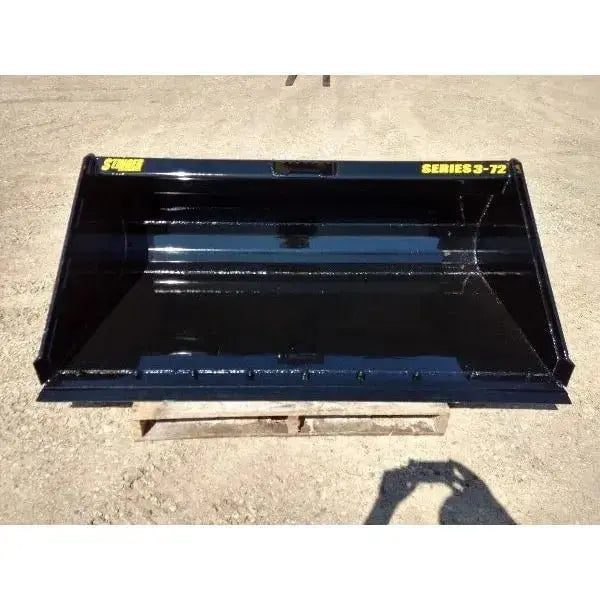

Skidsteer Material Bucket – Series 3
Skidsteer Material Bucket – Series 3
Regular price
$2,260.00 USD
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Selection will add to the price
Fast Shipping
Easy ReturnsReturn with Ease
Secure CheckoutSecure Payment
No reviews
- Specs, Features:
- Specs
- Warranty & Returns:
Specs, Features:
Features
- 3/16ths grade 50 shell.
- 40” deep bucket for increased capacity and greater visibility of the cutting edge.

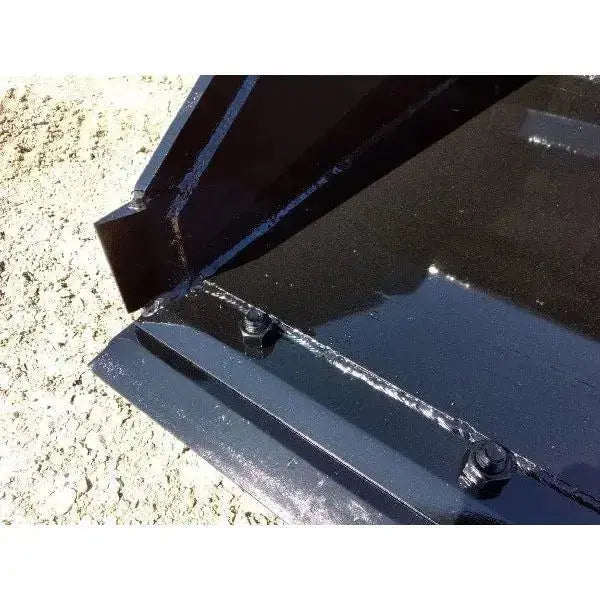

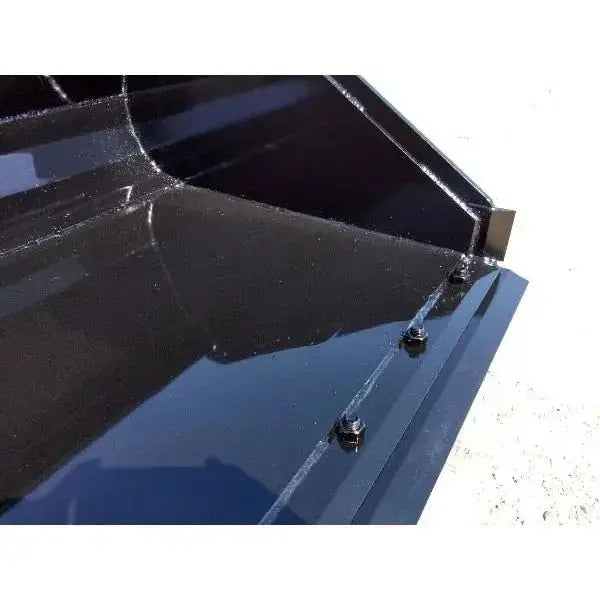

- Weld on, Or Bolt on Cutting Edge Options
- ¼” sides with½” thick side braces for added strength.

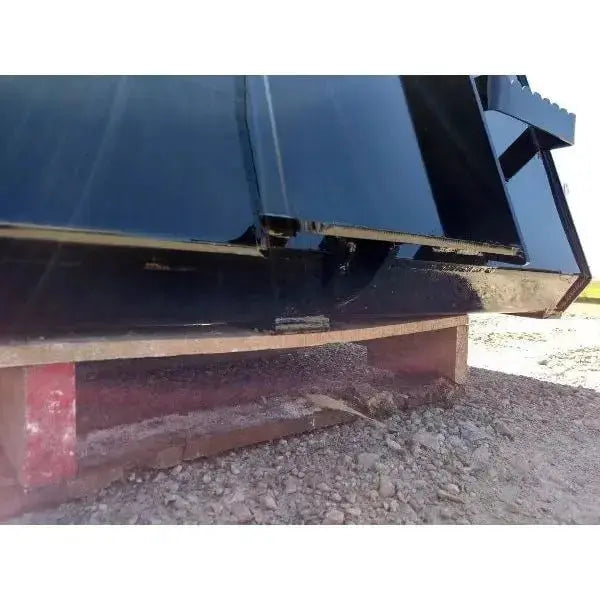

- 4 – 4” wide by ½” thick wear bars for improved strength and prolonged bucket life.

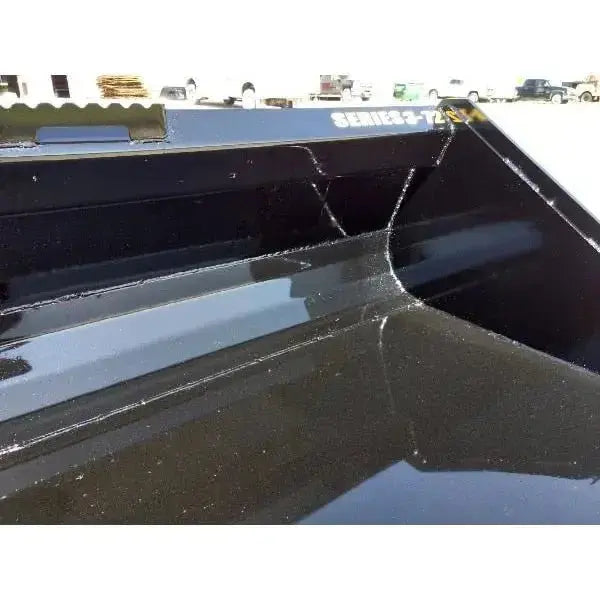

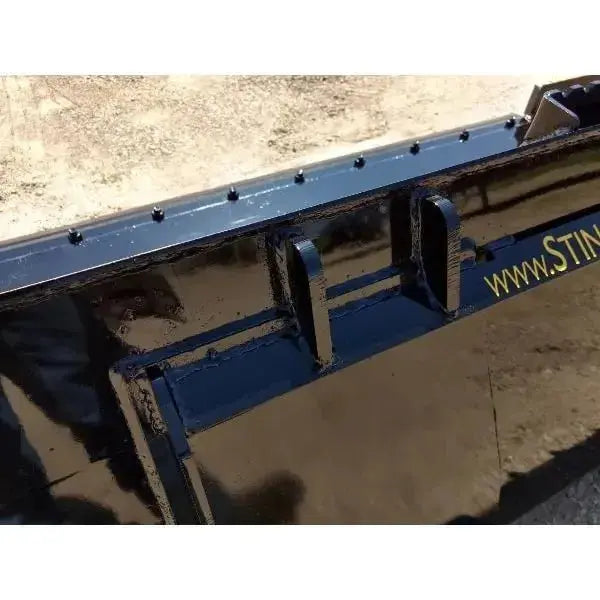

- Reinforcement tube across top of bucket for greater strength, durability and ultimate visibility.

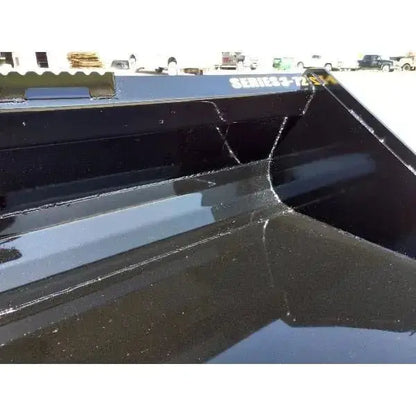

- 3/16ths rolled insert for added strength and better clean out.

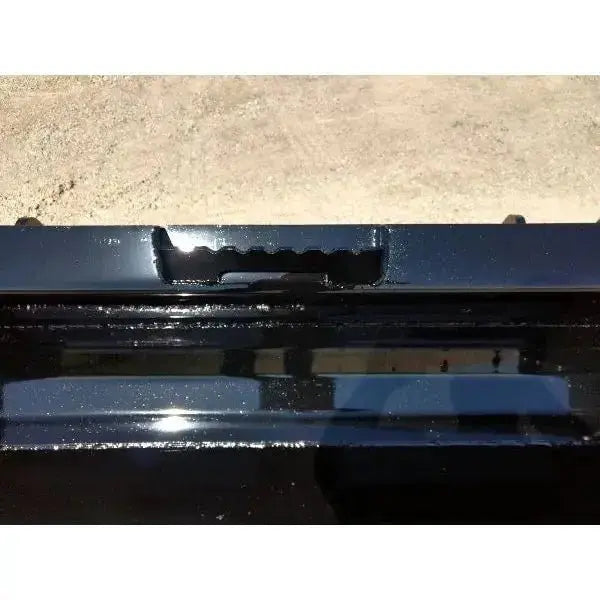

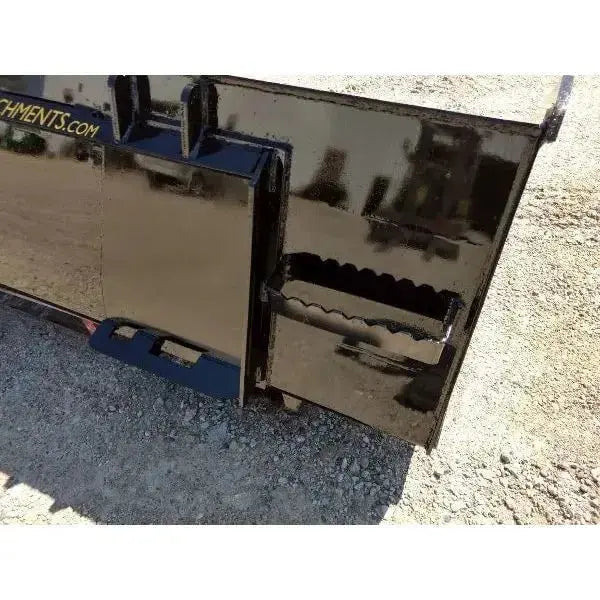

- Included step for easier access.

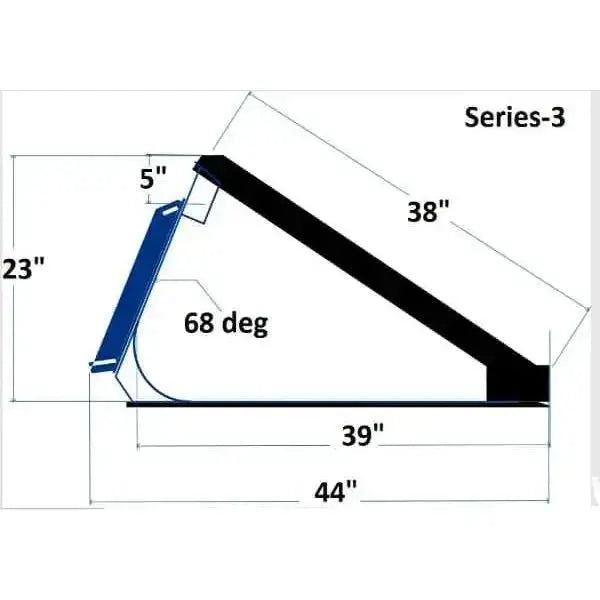

Specs
Size | Approx. LBS (Bolt-On) | Struck Capacity (CU.FT.) | Heap Capacity (CU.FT.) | Back Angle | # of 1/2 "X4" Wear Bars |
---|---|---|---|---|---|
60" | 614 LBS | 14.2 | 17.8 | 68 DEG | 4 |
66" | 653 LBS | 15.6 | 19.5 | 68 DEG | 4 |
72" | 690 LBS | 17 | 21.3 | 68 DEG | 4 |
78" | 743 LBS | 18.5 | 23 | 68 DEG | 5 |
84" | 780 LBS | 19.9 | 23.8 | 68 DEG | 5 |
Warranty & Returns:
Stinger Attachments warrants each new product manufactured by us to be free from defects in material and workmanship for a period of Twenty-Four (24) months from date of delivery to the original purchaser. Certain Items may have an extended warranty such as cascade forks, and eaton drive motors. Please check each product page for more information.
All returns must be in new condition with all freight costs the responsibility of the buyer. No returns accepted after 10 days of buyer receiving the product.
