| Size |
Weight |
Material |
Tine Depth |
| 66″ |
746lbs |
3/8″ Gr.50 |
4-1/2″ |
| 75″ |
795lbs |
3/8″ Gr.50 |
4-1/2″ |
| 85″ |
843lbs |
3/8″ Gr.50 |
4-1/2″ |
Bucket

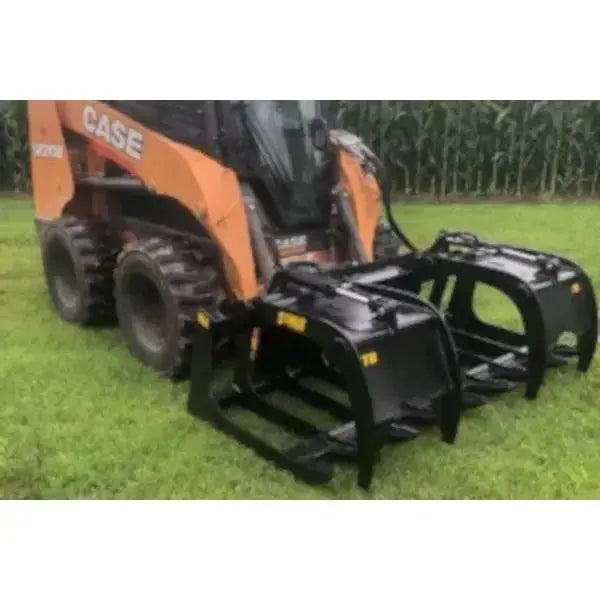

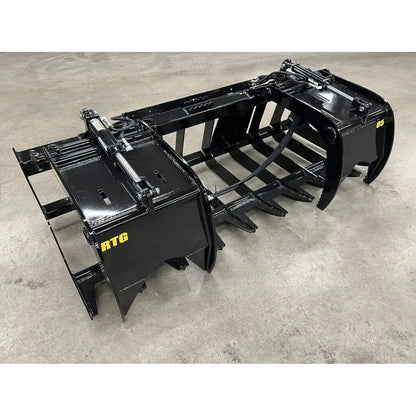

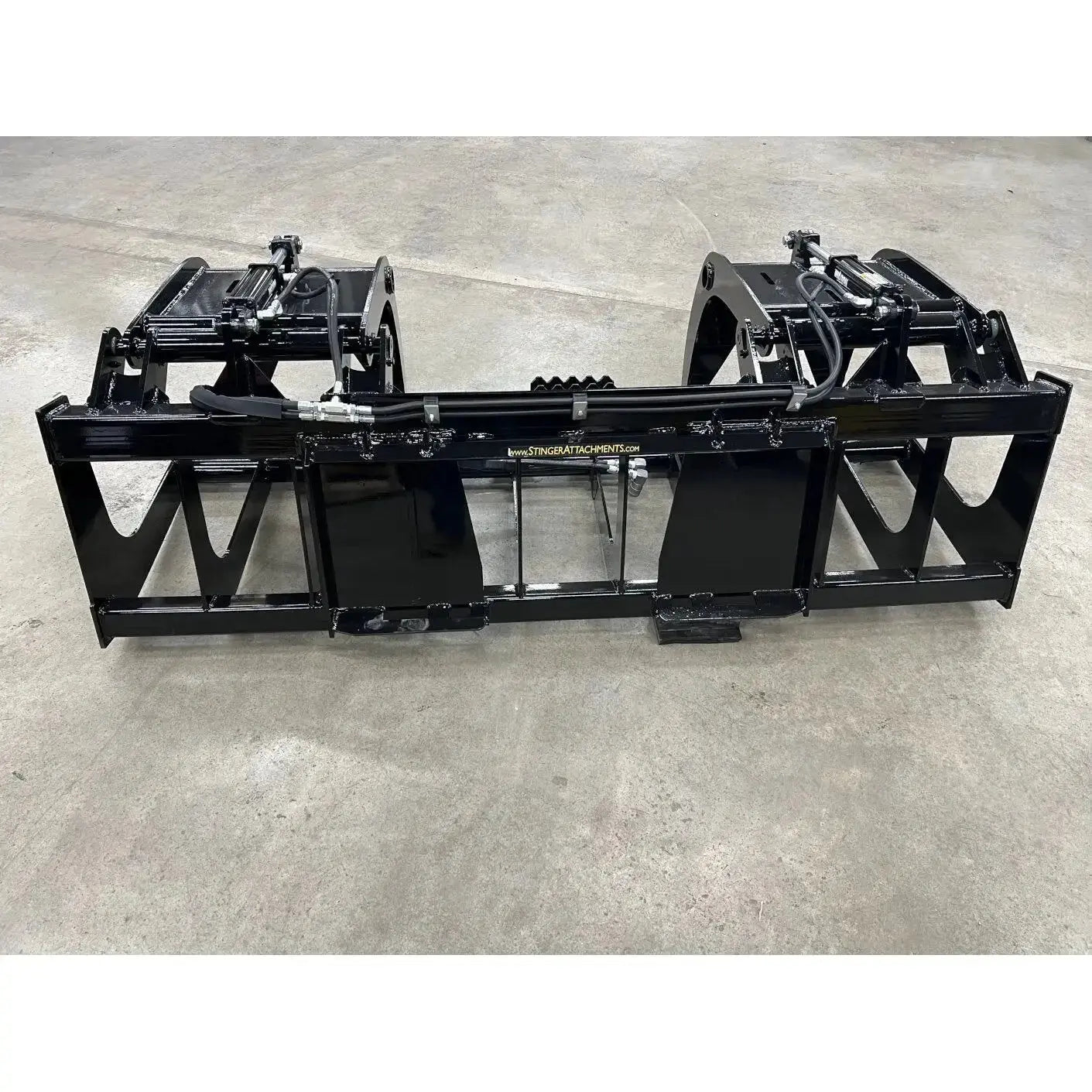

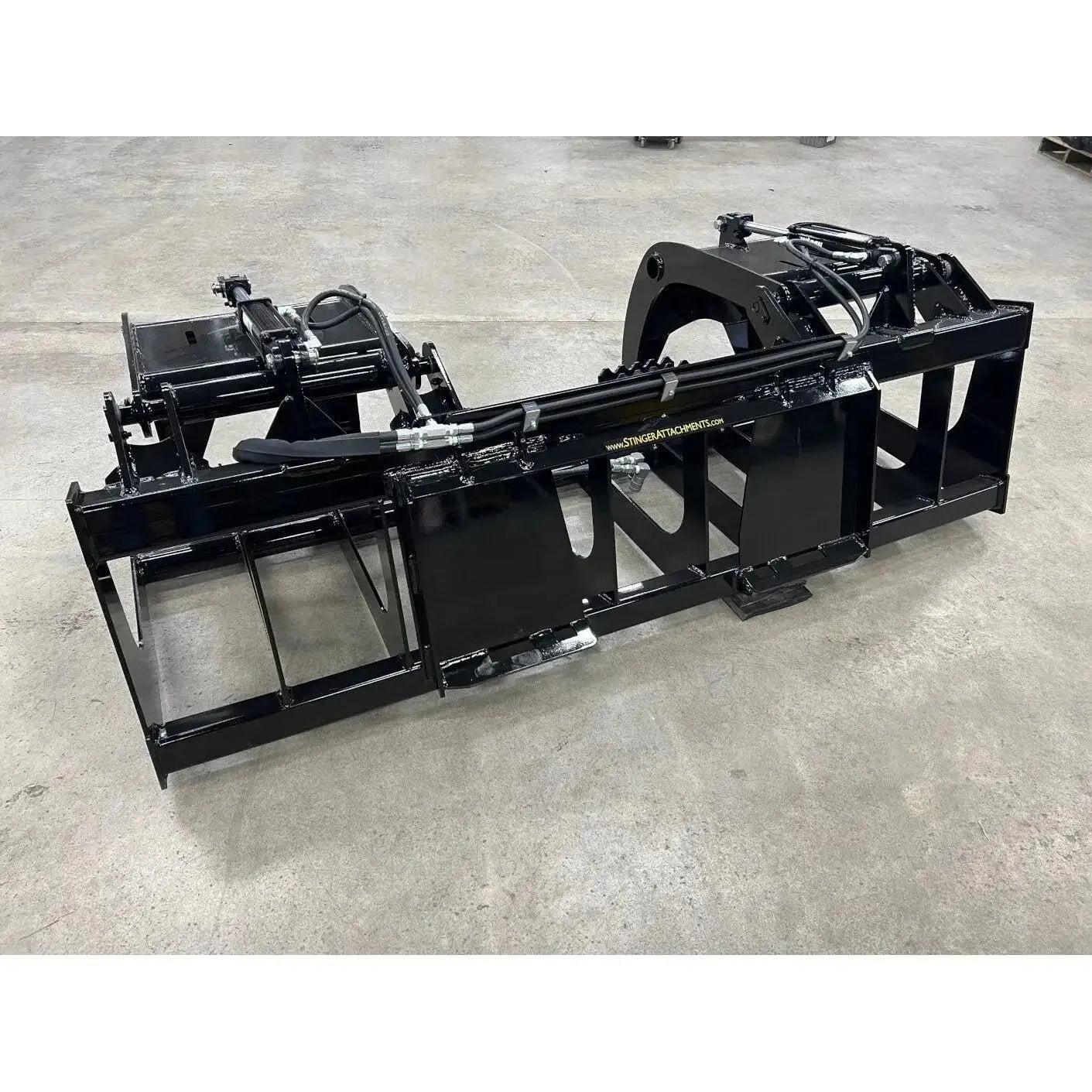

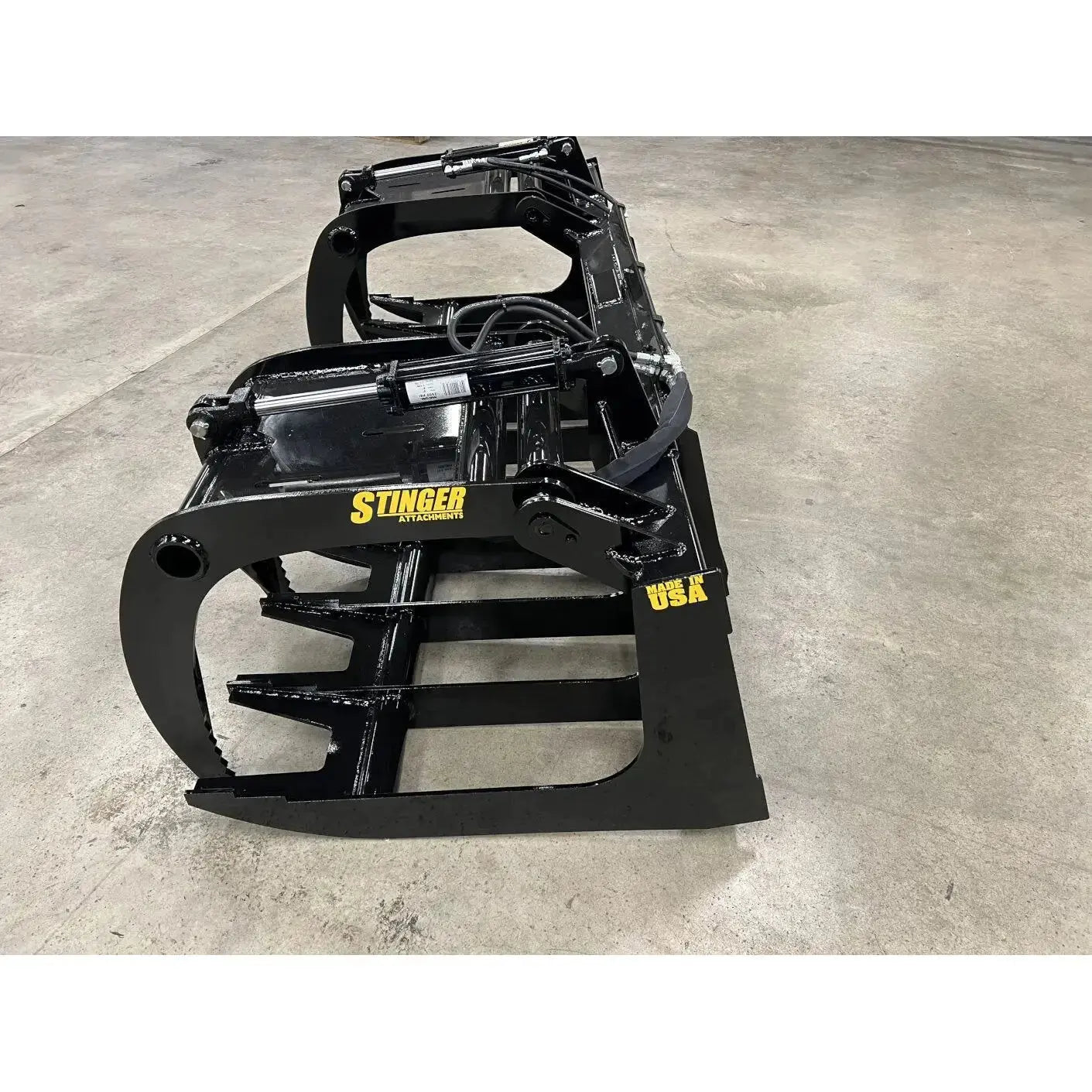

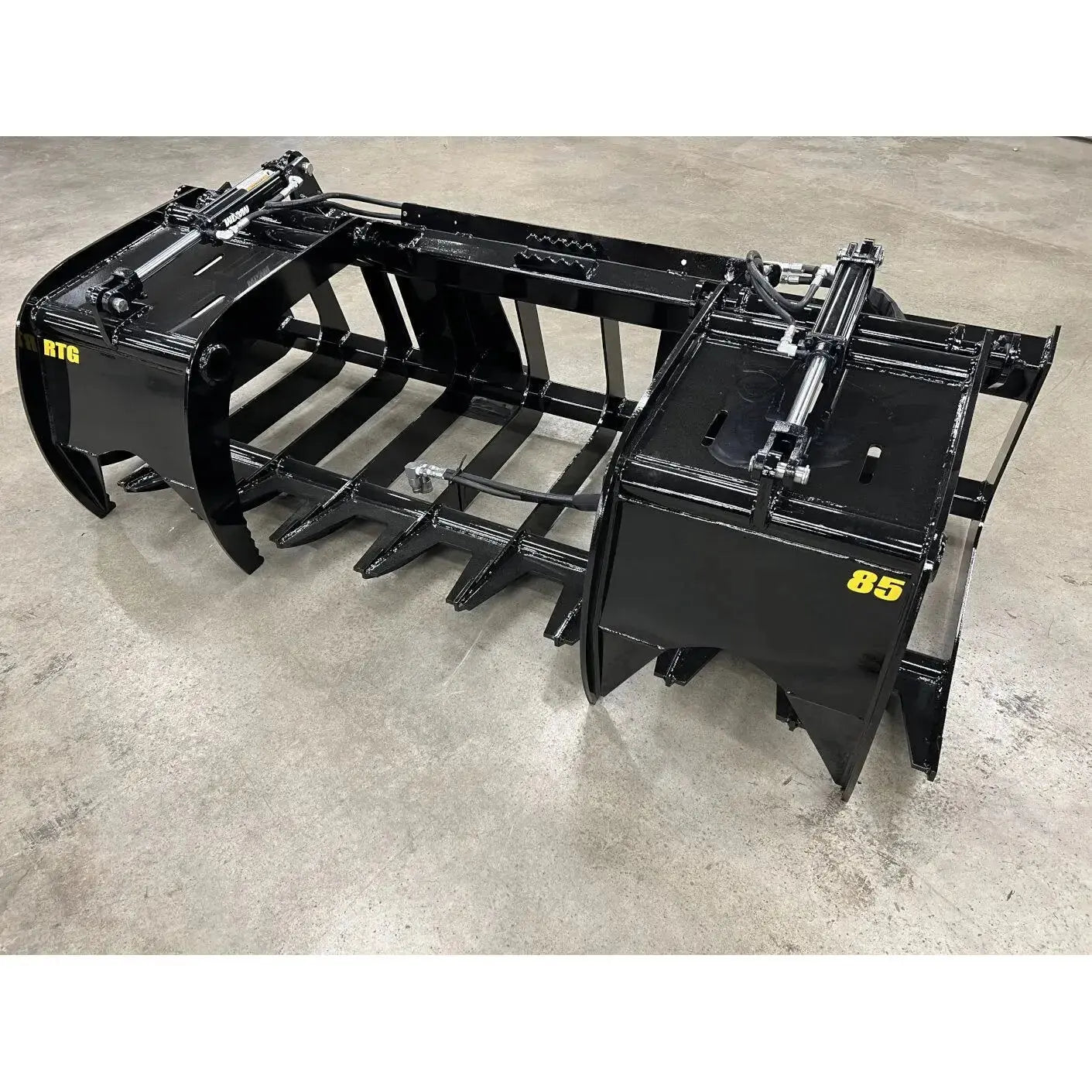

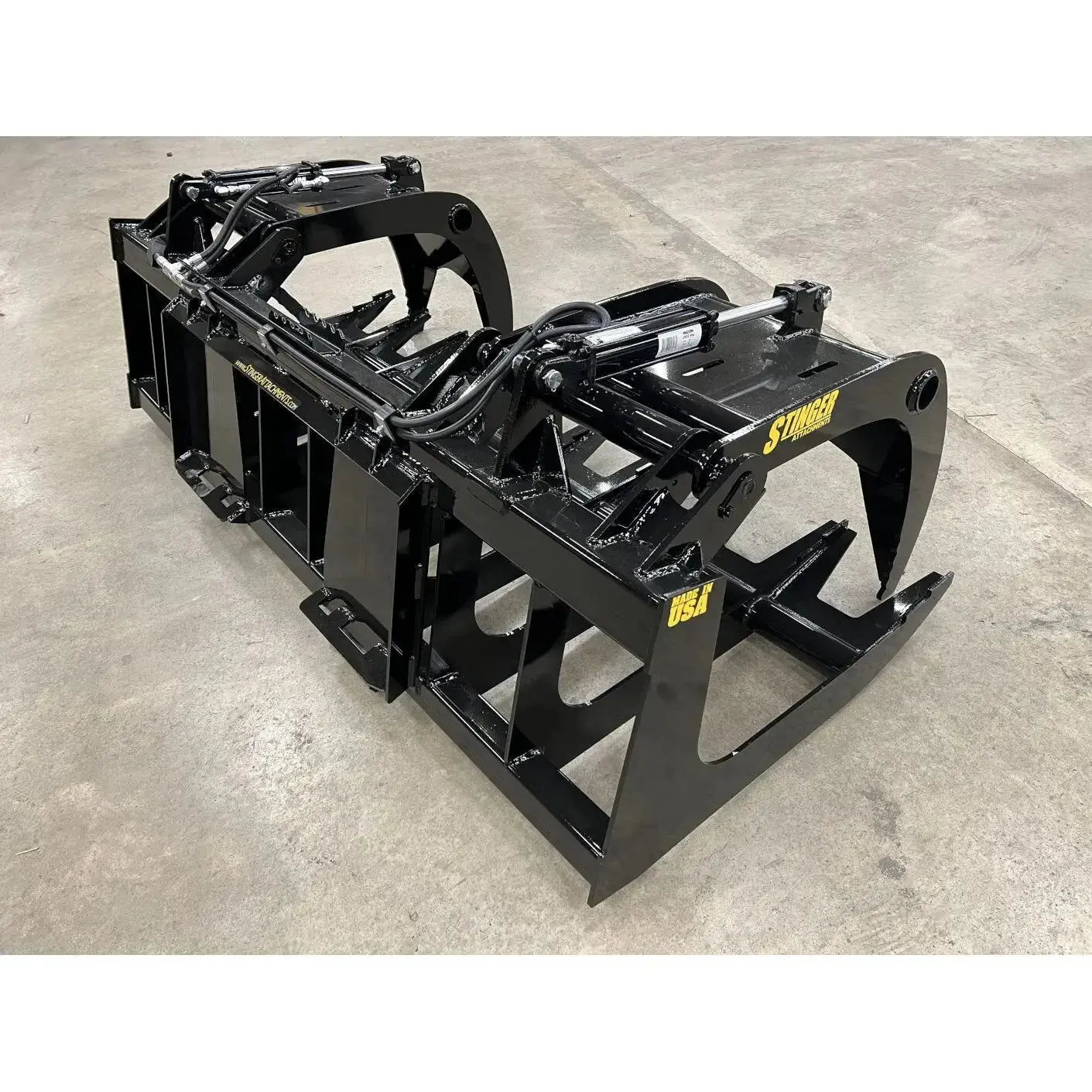

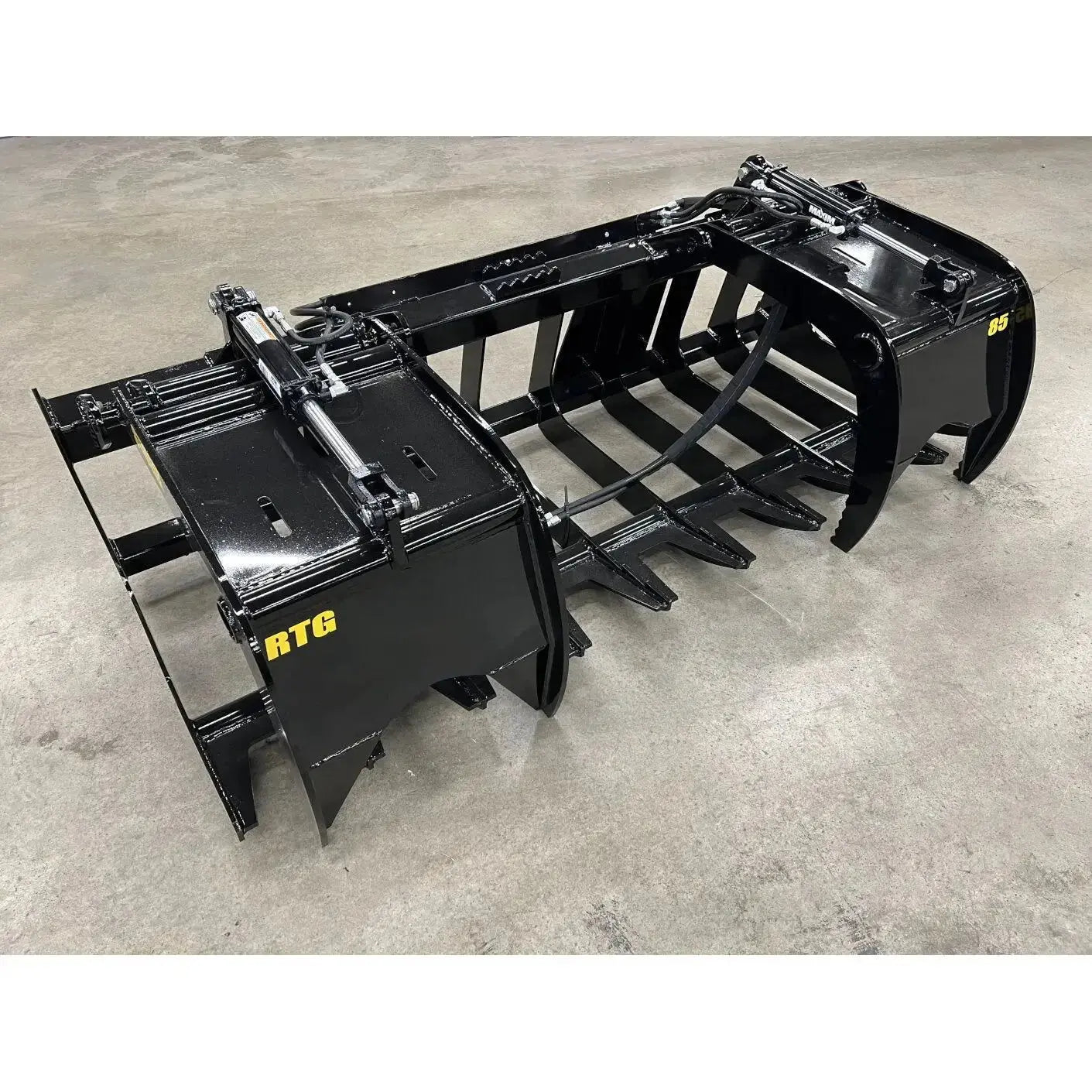

We build every root grapple bucket with structural steel and smart engineering. Our team uses grade 50 steel in these attachments because of its reliable strength that engineers count on for heavy-duty equipment and structures. Support pipes and tubing reinforce the bucket for the toughest situations. With the universal skid steer mounting plate, you can fit the grapple to the machine makes including Kubota, Bobcat, John Deere, and more.
- Grade 50 steel (3/8″ tines)
- 4″x 4″x 1/4″ top tubing
- One-piece tine gusset (see pic)
- 9″ opening between tines
- 2.875″ front support pipe
- Universal skid steer mount plate
- (Call for other mounting options)
Grapples

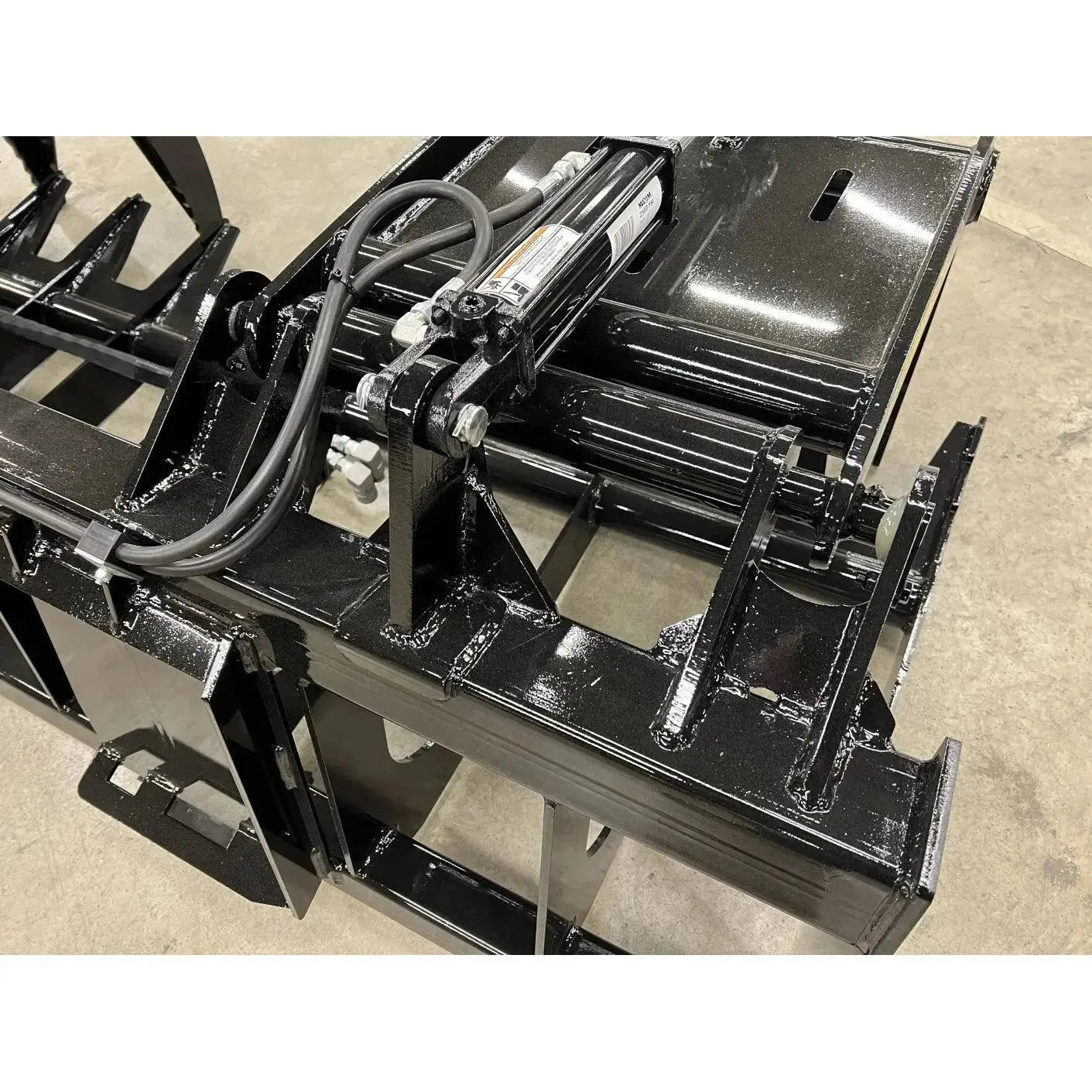

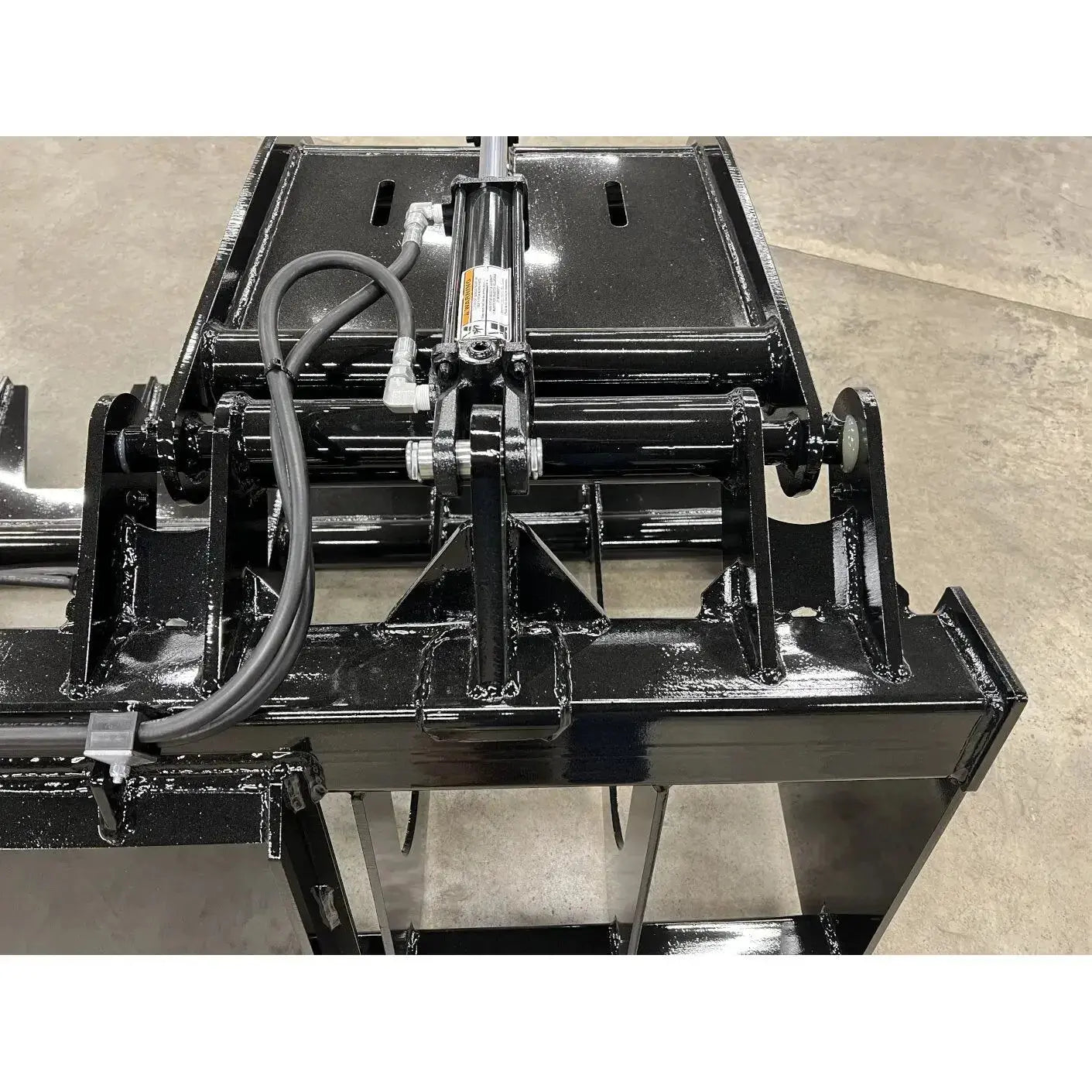

Get the most out of your grapple with greaseable pivot points and a large opening. With our ready-to-go grapple package, you can hook the attachment to your skid steer and get to work in no time.
- 48″ to 45″ grapple opening
- Twin 2500 psi cylinders
- 1/2″ flat-face couplers included
| Sizes |
66″ |
75″ |
85″ |
| Prices |
$3340 |
$3470 |
$3610 |
