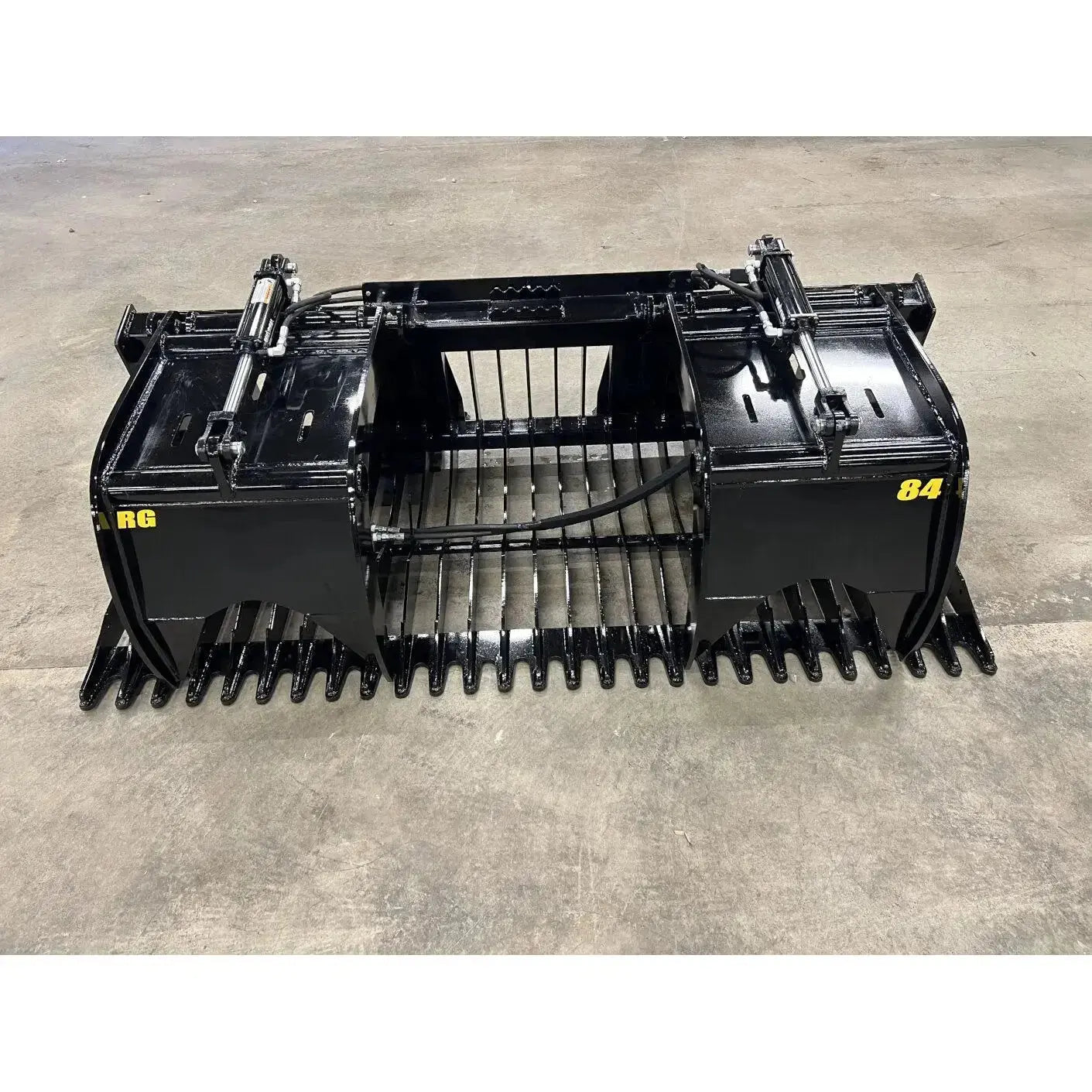

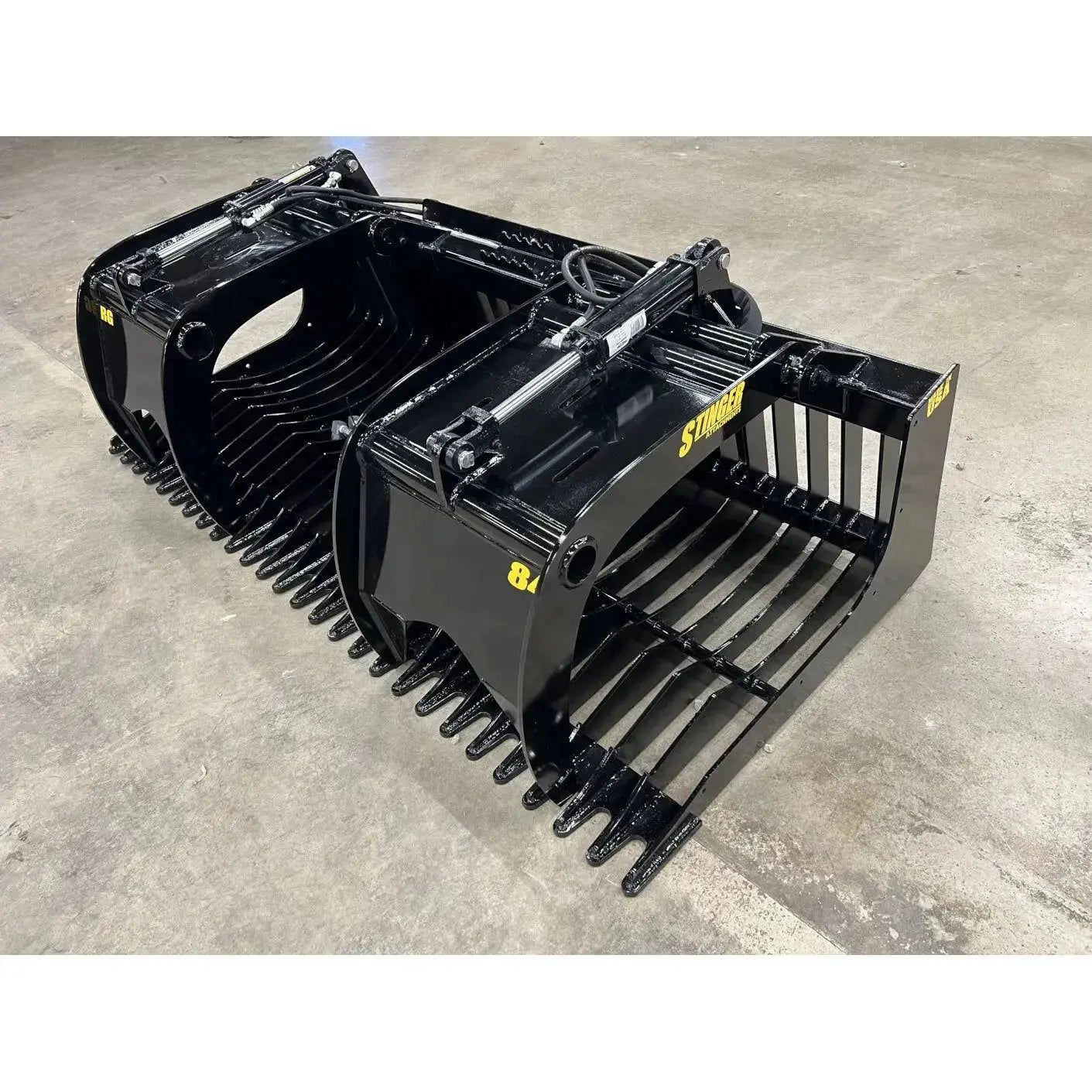

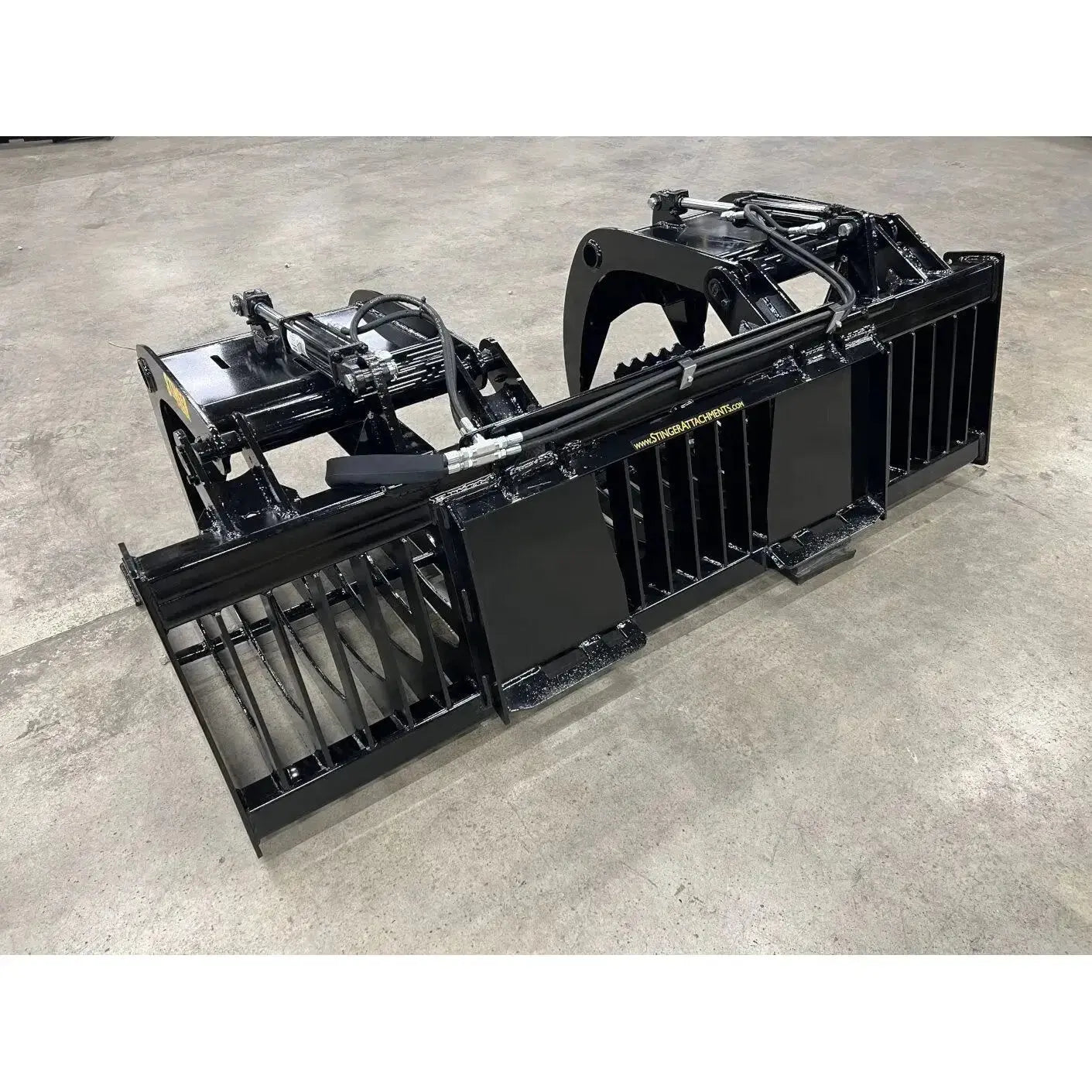

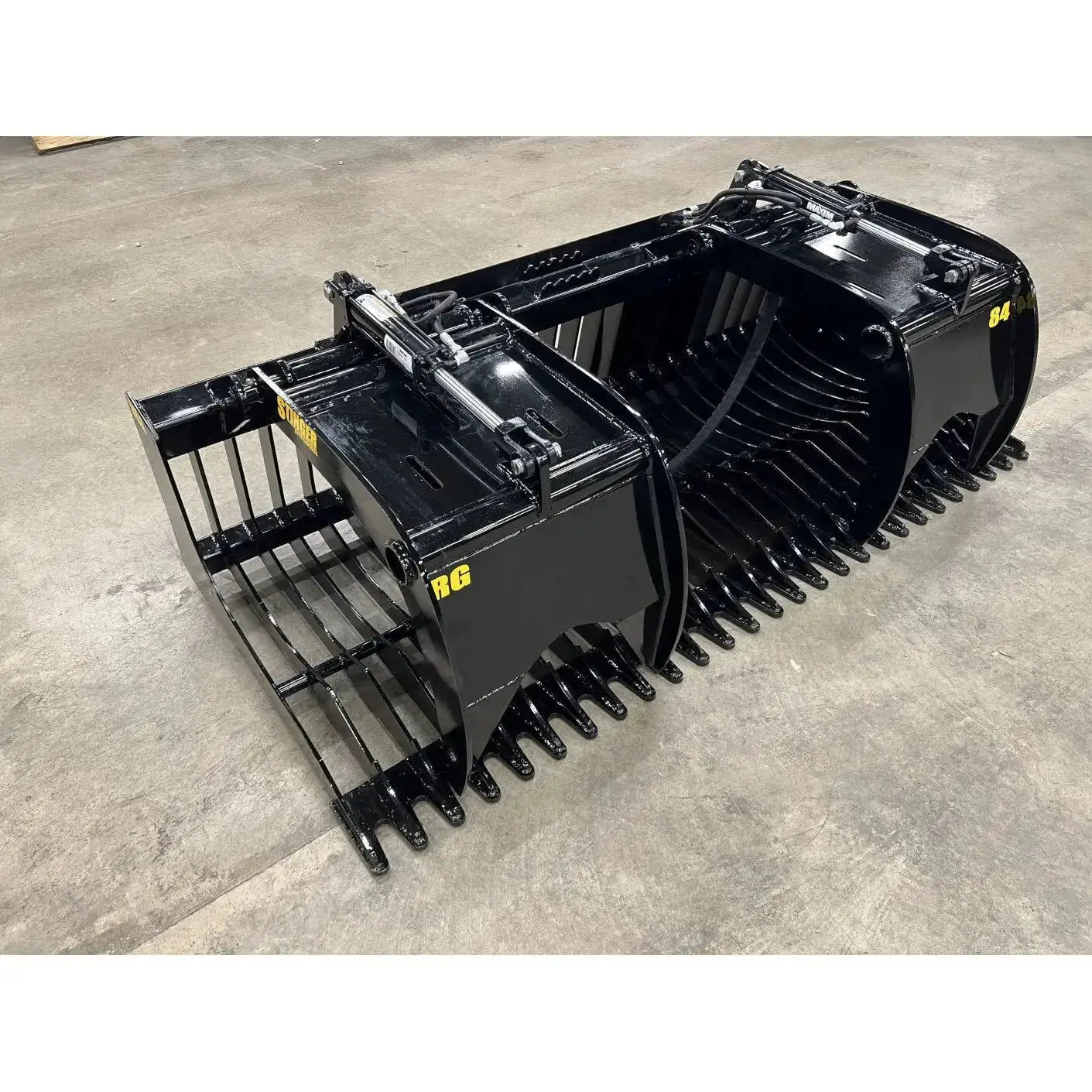

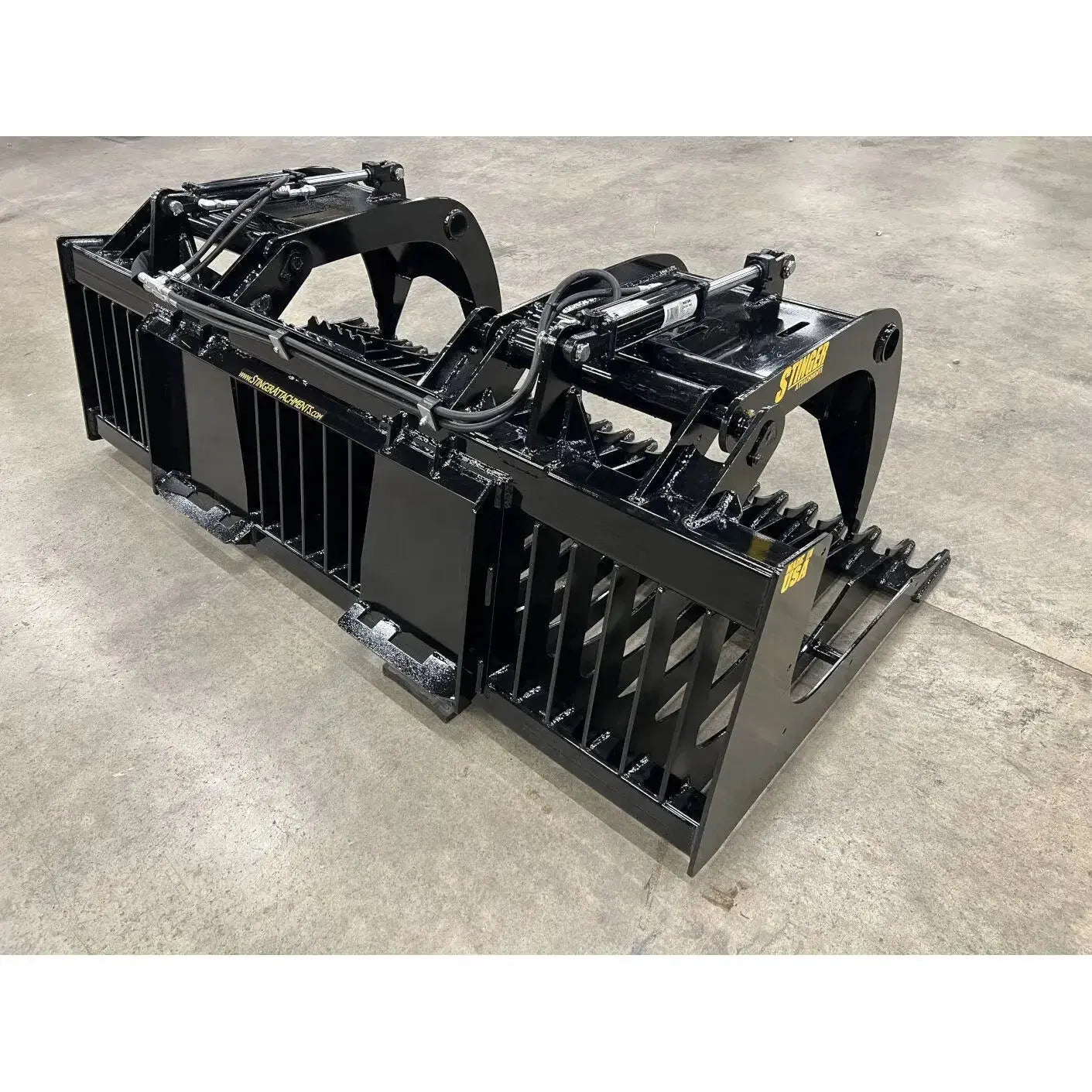

The Skid Steer Rock Grapple RG Series clears fields of rocks. Whether you’re a farmer, construction worker or related worker…you’re going to need a clean and clear area. Why not rely on a wide mouth 48 inch grapple to get the job done?
| Size |
Weight |
Material |
Cut-Edge |
| 60″ |
884lbs |
3/8″ Gr.50 |
1/2″ Gr.50 |
| 66″ |
930lbs |
3/8″ Gr.50 |
1/2″ Gr.50 |
| 72″ |
985lbs |
3/8″ Gr.50 |
1/2″ Gr.50 |
| 78″ |
1030lbs |
3/8″ Gr.50 |
1/2″ Gr.50 |
| 80″ |
1050lbs |
3/8″ Gr.50 |
1/2″ Gr.50 |
| 84″ |
1075lbs |
3/8″ Gr.50 |
1/2″ Gr.50 |
| 88″ |
1105lbs |
3/8″ Gr.50 |
1/2″ Gr.50 |
Bucket

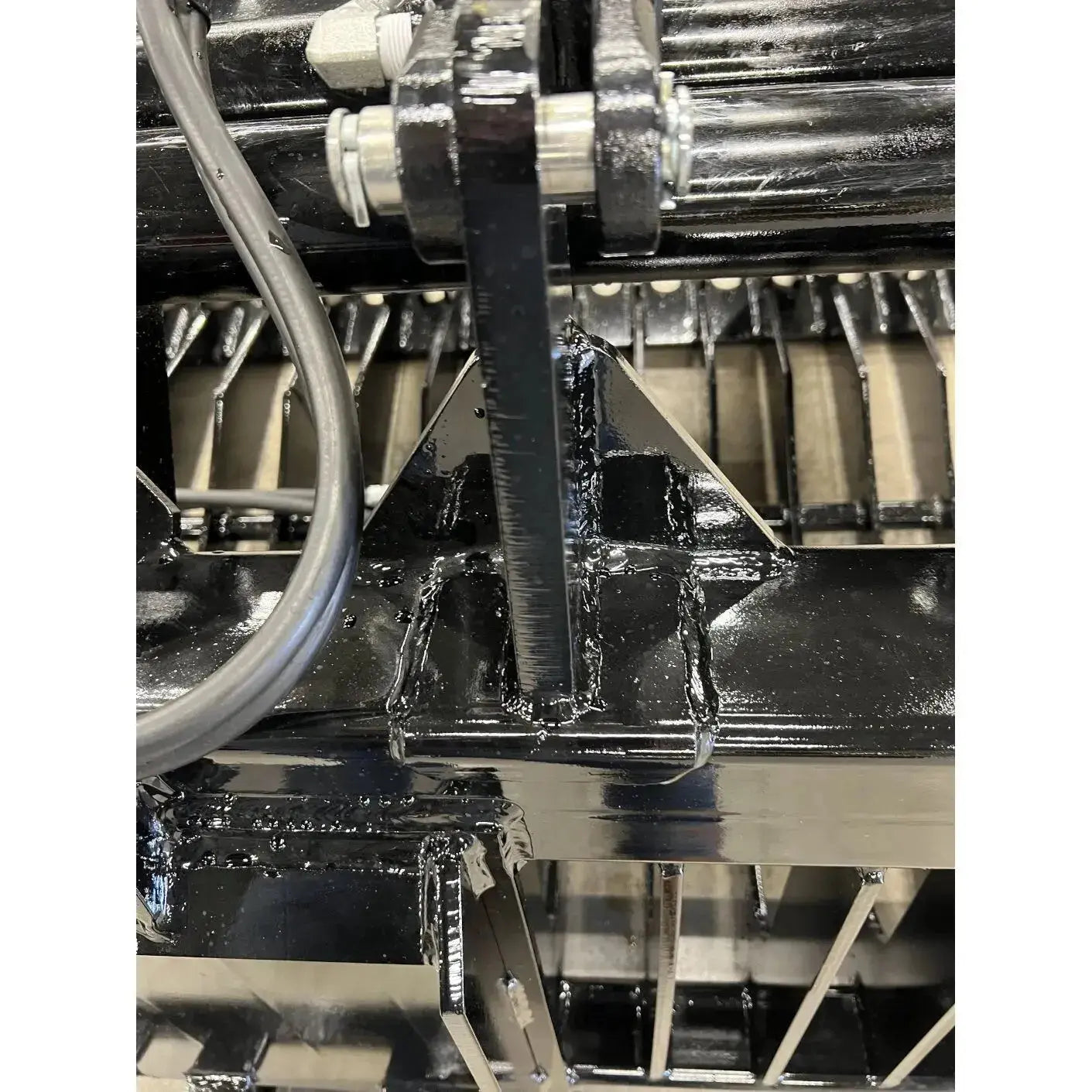

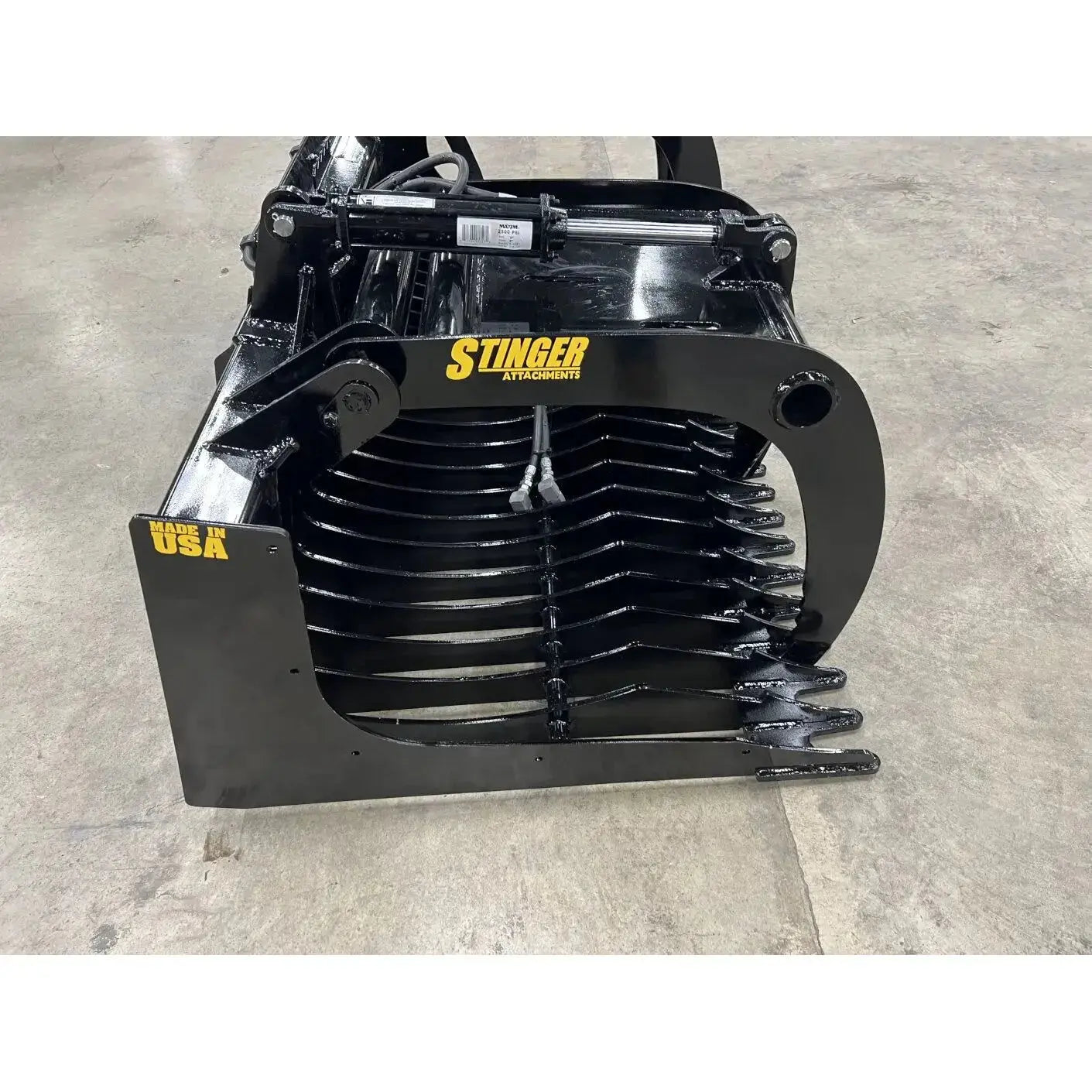

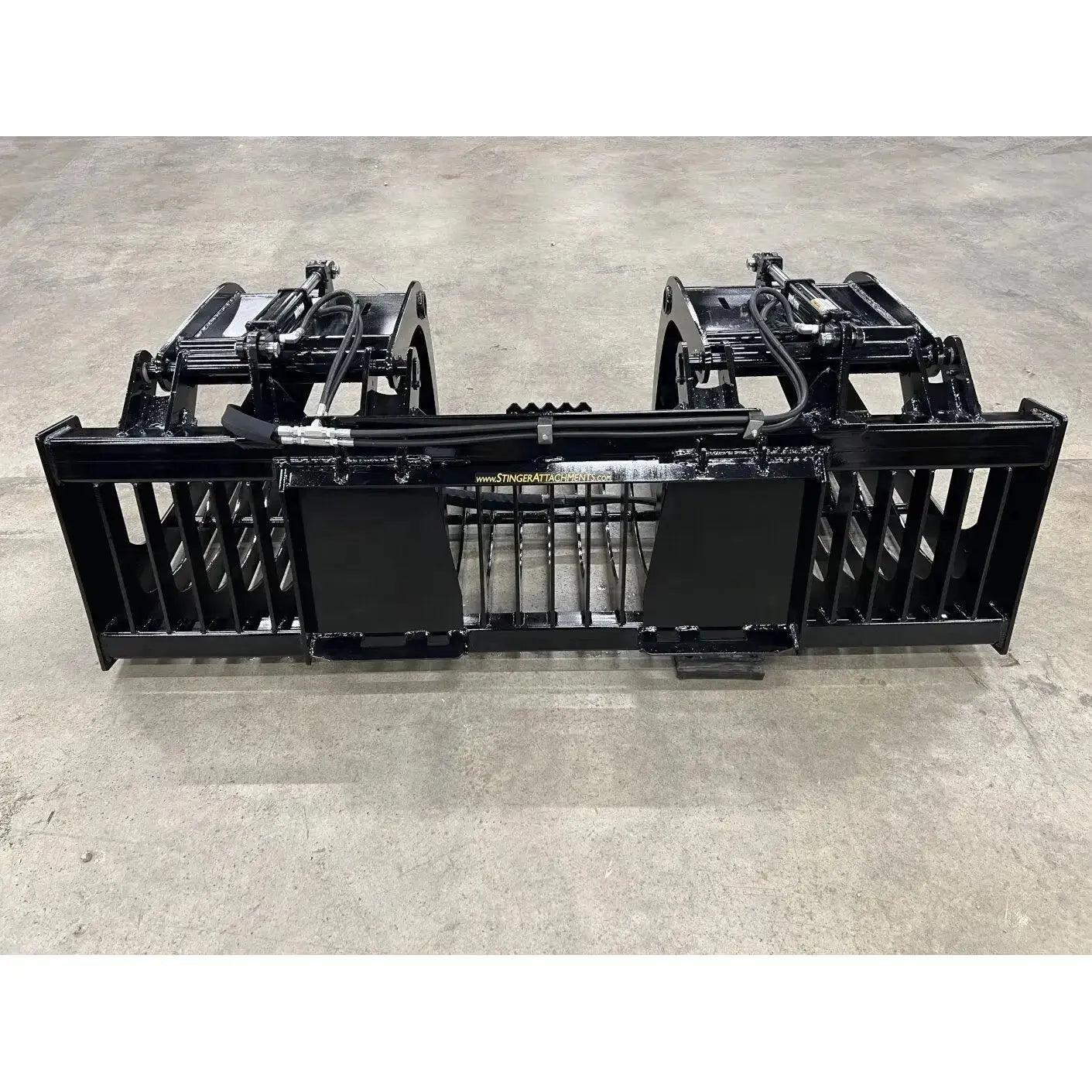

Stinger Attachments designed the rock grapple bucket to hold material securely while holding up to job after job. The combination of structural steel materials and tubing reinforcement makes our rock grapple an investment that lasts. A universal mounting plate makes the rock grapple compatible with many popular makes, including Kubota, John Deere and Bobcat. You can also ask us about custom mounting options.
- Grade 50 steel (3/8″ Tines)
- 4″x 4″x 1/4″ top tubing
- 3″x 3″x 1/4″ bottom tubing
- 1/2″ serrated cut-edge
- 2-7/8″ opening between tines

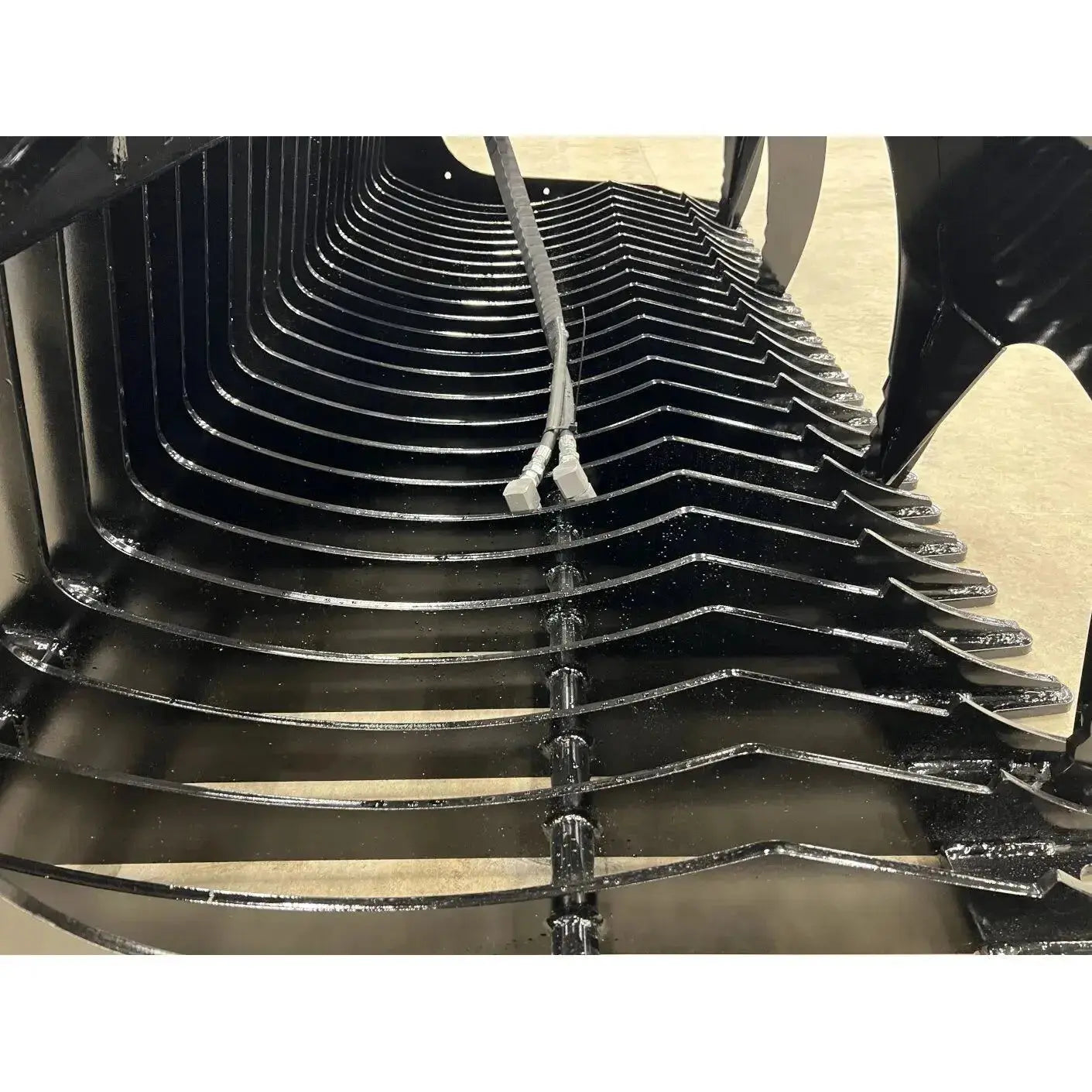

- Contoured tines
- Universal skid steer mount plate
- (Call for other mounting options)
Grapples

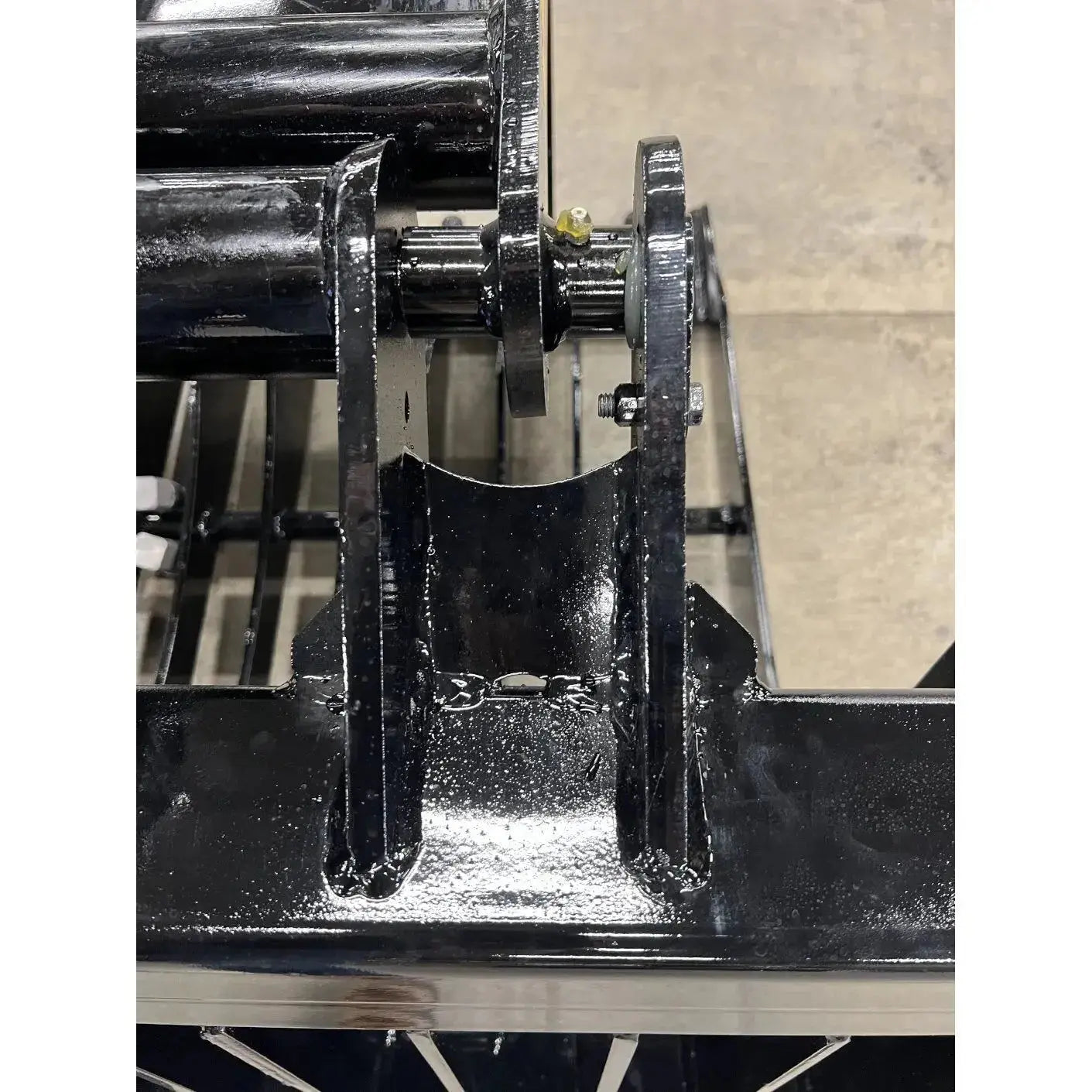

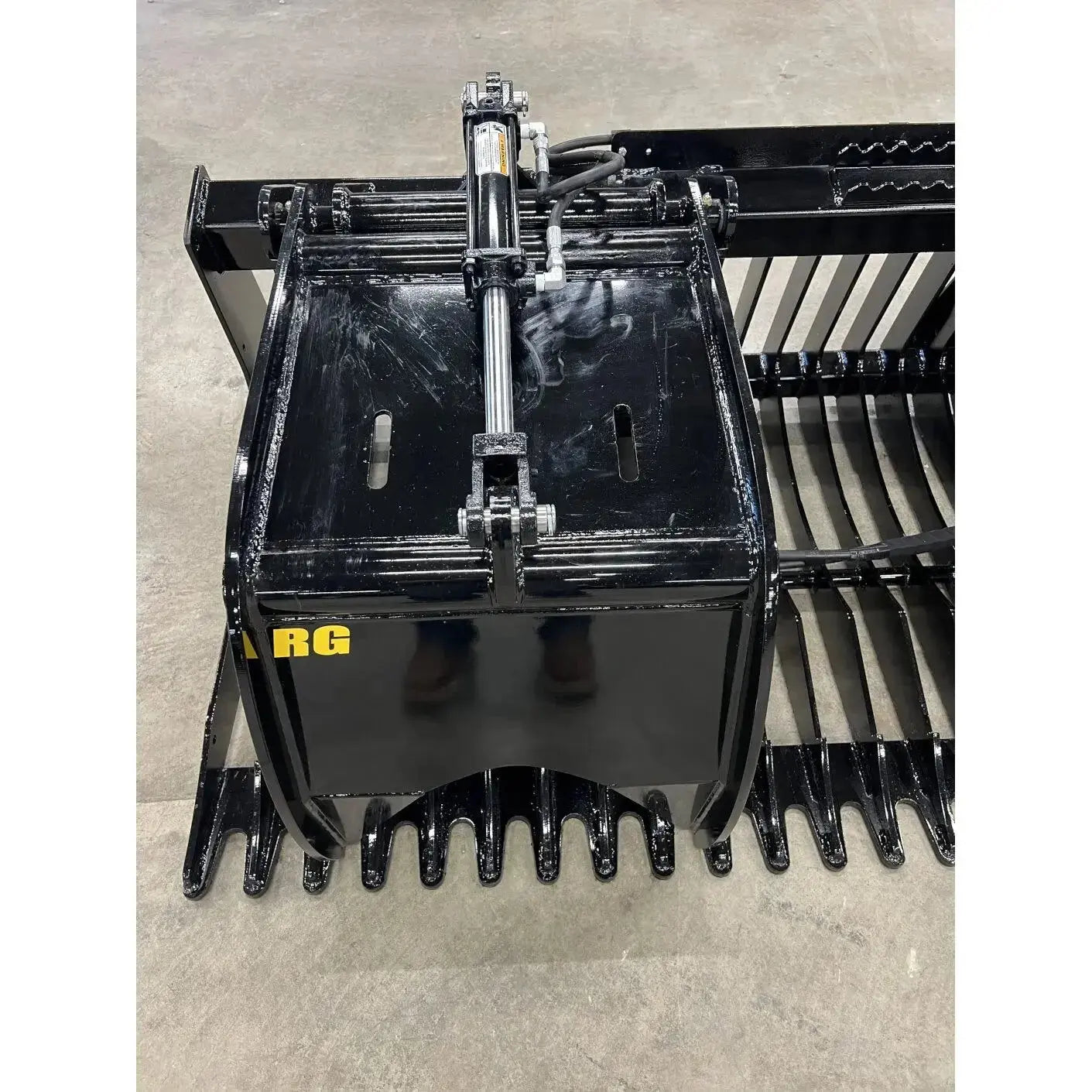

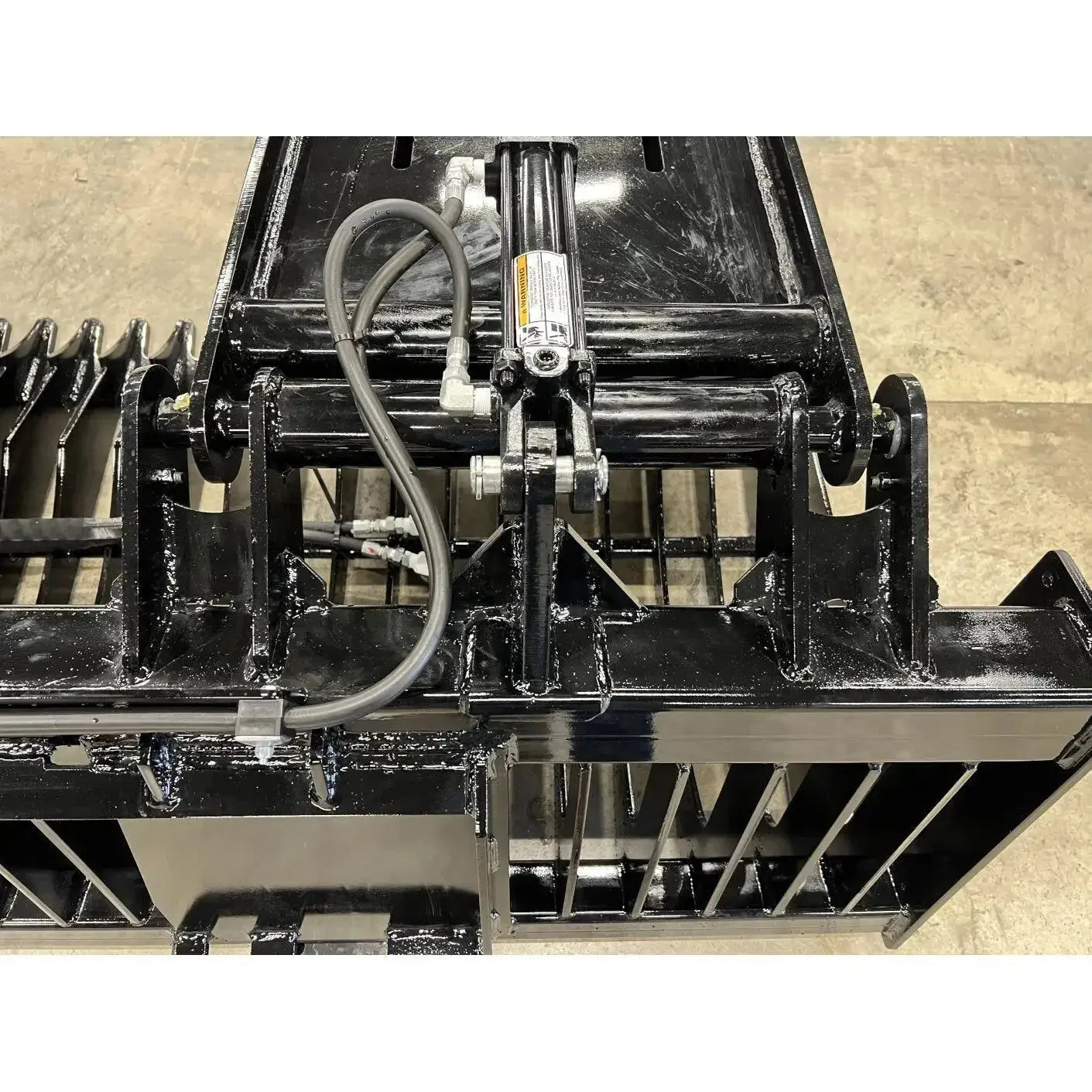

With this attachment’s wide and powerful grapples, you can pick up anything from debris to material. The greasable pivot points allow for easier maintenance so you can keep getting use out of your rock grapple, while strong twin cylinders give you a firm grip that you can adjust per side to hold even the most challenging loads.
- 48″ grapple opening
- Twin 2500 psi cylinders
- 1/2″ flat face couplers included
