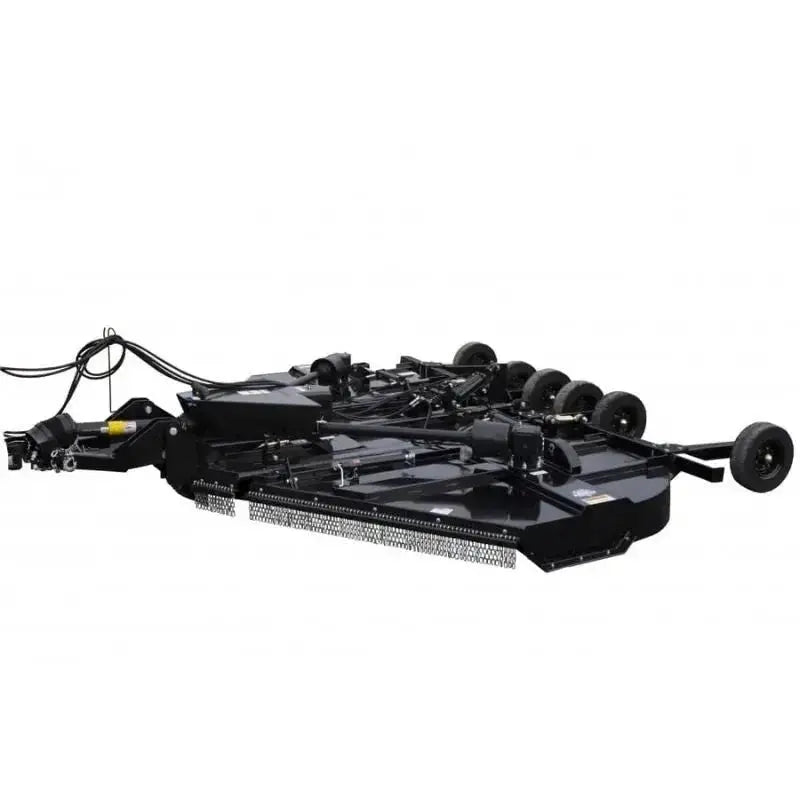

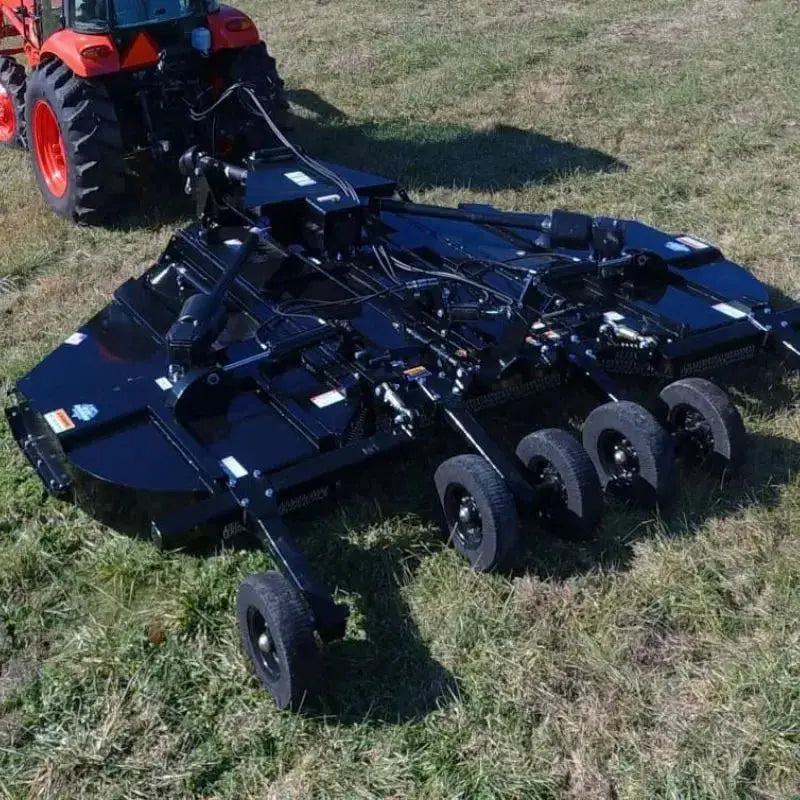

Blue Diamond® presents the ultimate 15' Flex-Wing Rotary Cutter for heavy-duty tasks, handling grass, weeds, and brush up to 4" diameter. Designed for tractors with a minimum of 55 hp, this cutter boasts a robust 180" cutting width. Featuring three spindles with free-swinging blades for reduced shock impact, slip clutches safeguard gearboxes and drivelines. Complete with driveline shields, clutch shields, front and rear chain discharge shields, and towing safety. Backed by a 2-year warranty.
Key Features:

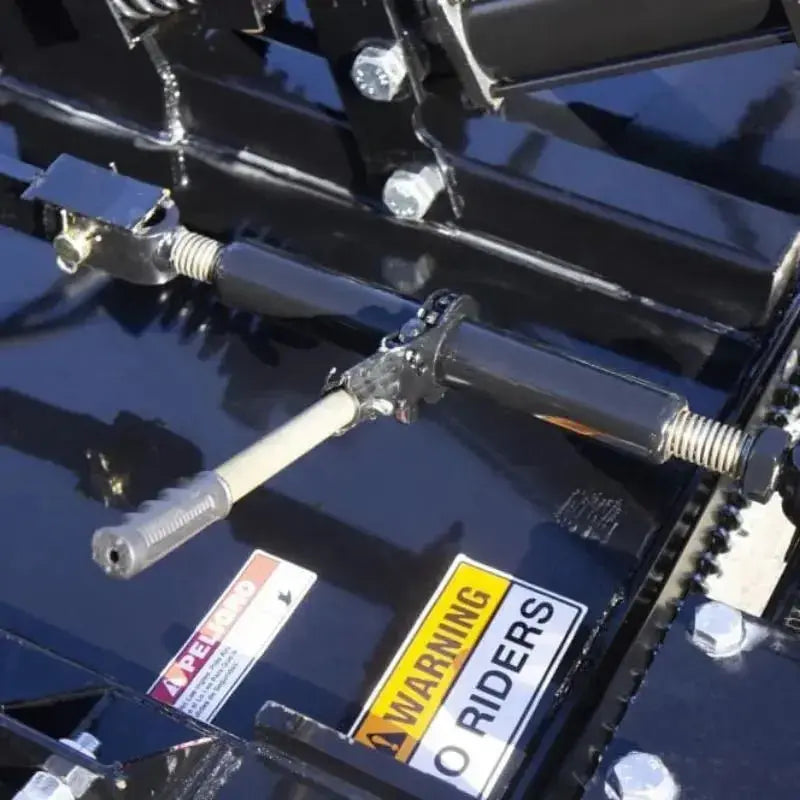

Protected gearboxes and drivelines
180" cutting width
2-year warranty
4" Cut Capacity
Standard slip clutches and chain guards
90" Transport Width
Specifications:
Model: 15’
Min. Horsepower: 55 hp
Hitch: Swivel Pivot
Deck Thickness: 7 GA
Body Depth: 9.5”
Side Skirt Material: 1/4” x 12”
Underneath Deck: Heavily Braced
Outboard Gearbox: 190 HP
Splitter Gearbox: 235 HP
Gearbox: 540 RPM
Blades: 1/2” x 4”
Blade Tip Speed: 17,135 FPM
Blade Overlap: 6 1/2”
Blade Carrier Warranty: 5 years

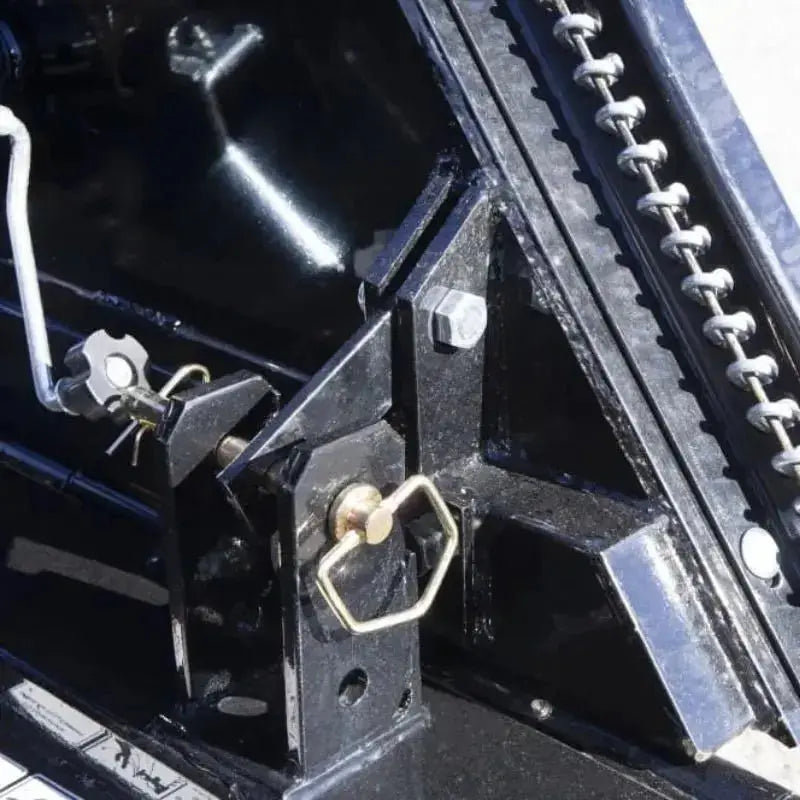

Wing Flex: 88 degrees up – 22 degrees down
Gearbox Warranty: 5 yr. limited
Cutting Width: 180”
Overall Width: 188”
Overall Length: 189”
Overall Weight: 5,175 lbs
Cut Height: 2” – 15”
Cutting Capacity: Up to 4”
Input PTO: ASAE CAT 8 Constant Velocity
Wing Drive PTO: ASAE CAT 6
Skid Shoes: Replaceable
Chain Shields: Standard
Towing Safety Chains: Standard
Wheel Type: 5 Lug Laminated Standard
Blade Carriers: 3/8” Formed Plate w/ 5/8” x 10” x 23” Blade Bar
