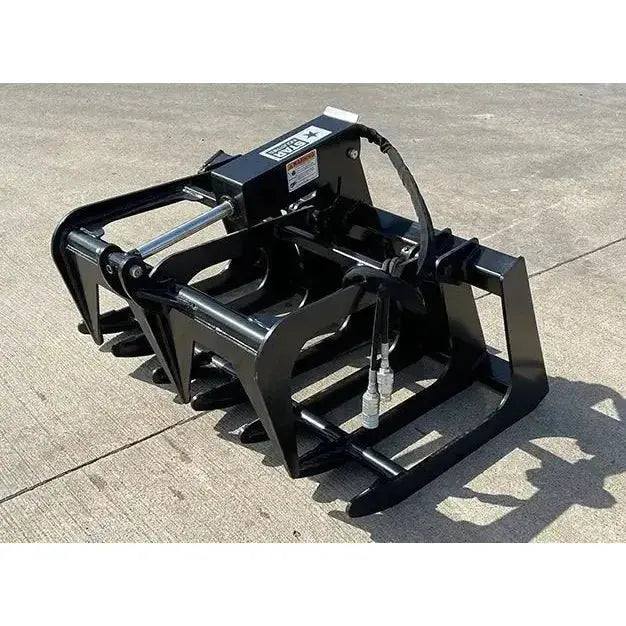

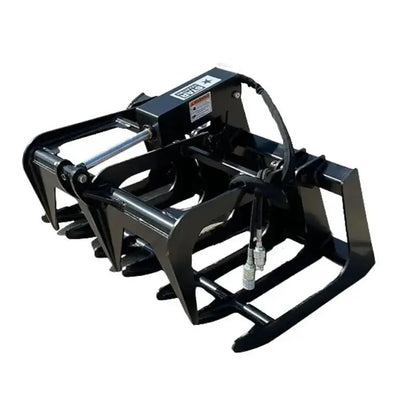

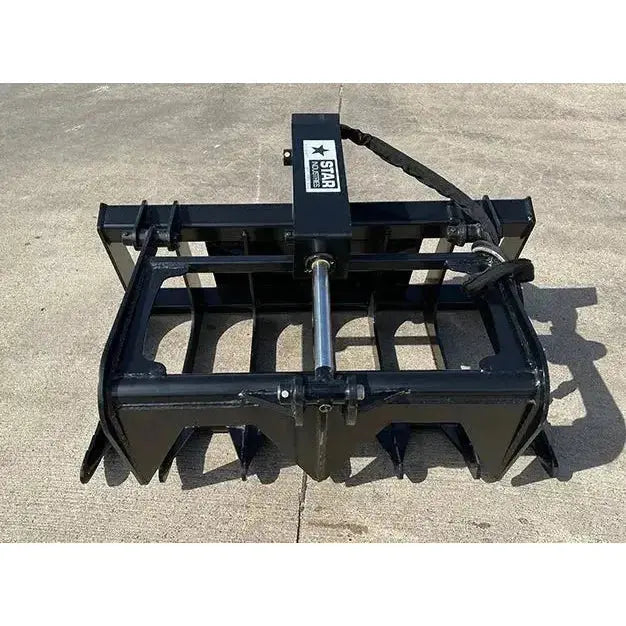

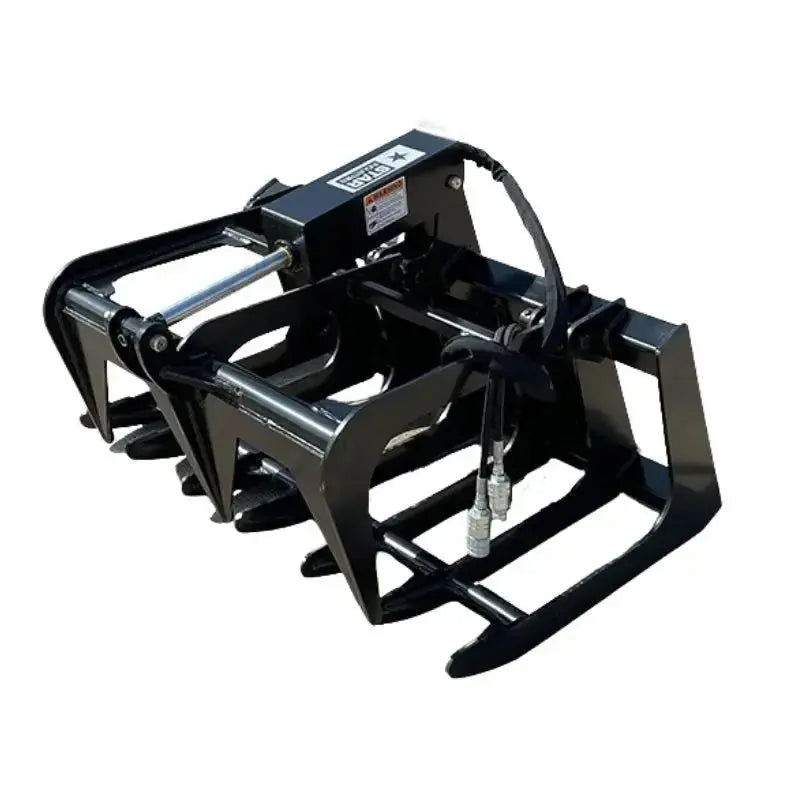

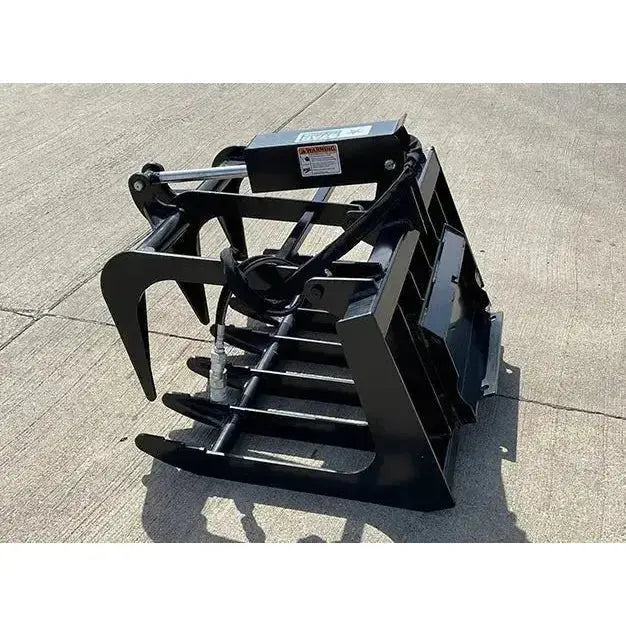

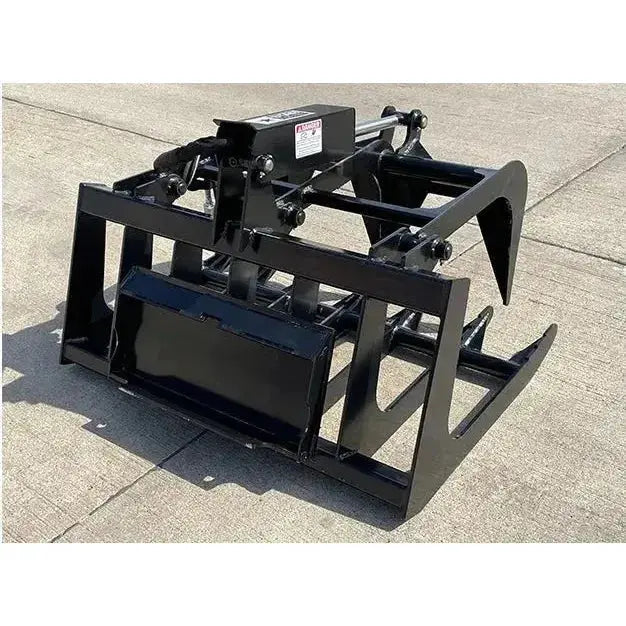

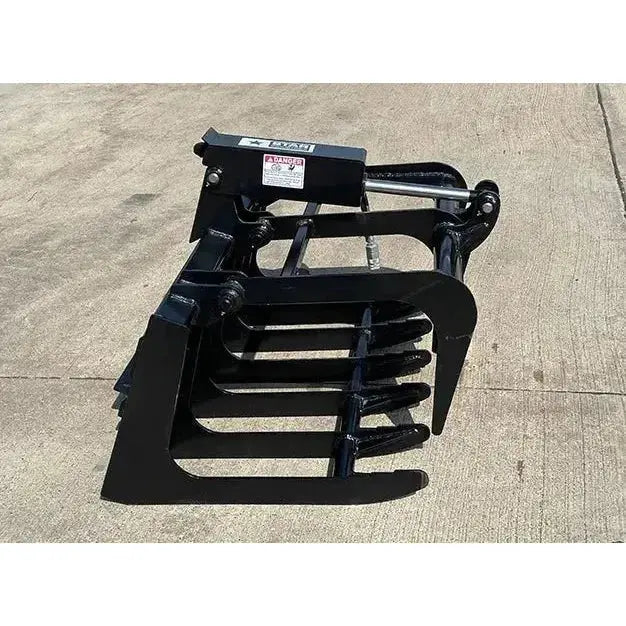

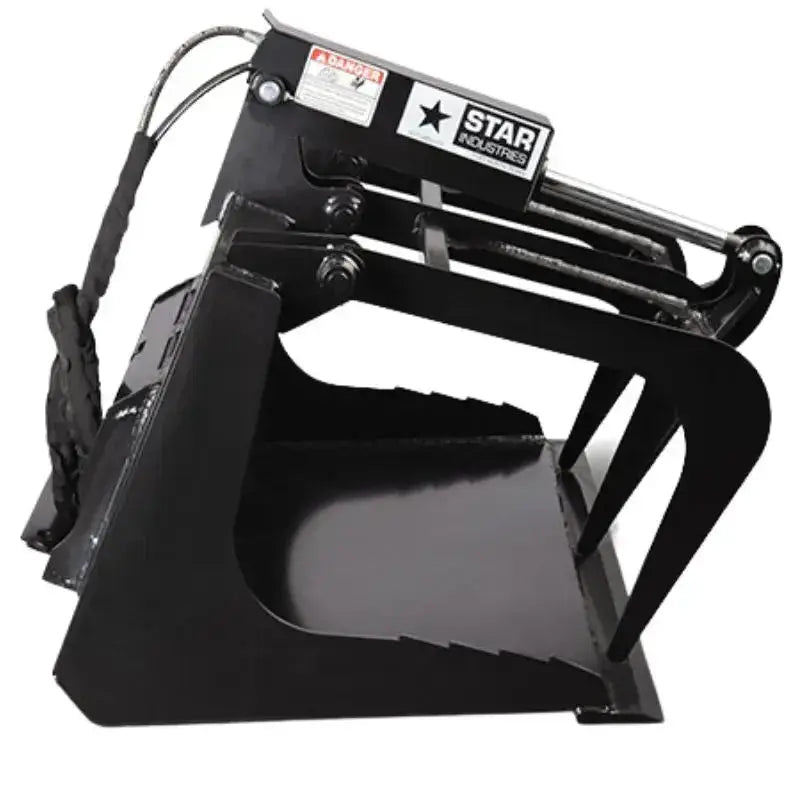

Root Grapple Buckets - Dingo Ditchwitch Vermeer Boxer Ramrod Bobcat

1. Root Grapple Design:

   • The root grapple design allows dirt to sift out when loading trash and large rocks, making it an ideal attachment for debris removal.

2. Compact Dimensions:

   • Width: 44” O.D.
   • Overall Depth: 35 ½”
   • Overall Height: 26”
   • Bucket Height: 20”

3. Robust Construction:

   • Grapple Tines: 5/16” thick
   • Pivot Pins: 1” DIA with grease fittings on all pivot points
   • Hyd. Cylinder: 2” Bore by 10” Stroke

4. Max Grapple Opening:

   • Grapple Max Opening: 30”

5. Hydraulic System:

   • Hyd. Hoses: Protective sleeves on all hydraulic lines
   • Hyd. Quick-Disconnects: Flat face couplers included

• Measurements:
  • Root Grapple:
    • Width: 44” O.D.
    • Hyd. Cylinder: 2” Bore by 10” Stroke
    • Grapple Tines: 5/16” thick
    • Grapple Max Opening: 30”
    • Overall Depth: 35 ½”
    • Overall Height: 26”
    • Bucket Height: 20”
    • Bucket Depth: Does not apply
    • Pivot Pins: 1” DIA with grease fittings on all pivot points
    • Hyd. Hoses: Protective sleeves on all hydraulic lines
    • Hyd. Quick-Disconnects: Flat face couplers included

Effortlessly handle challenging materials like logs and brush with the Star Industries Mini Skid Steer Root Grapple, a durable and efficient attachment designed to streamline material handling operations for mini skid-steer loaders.
