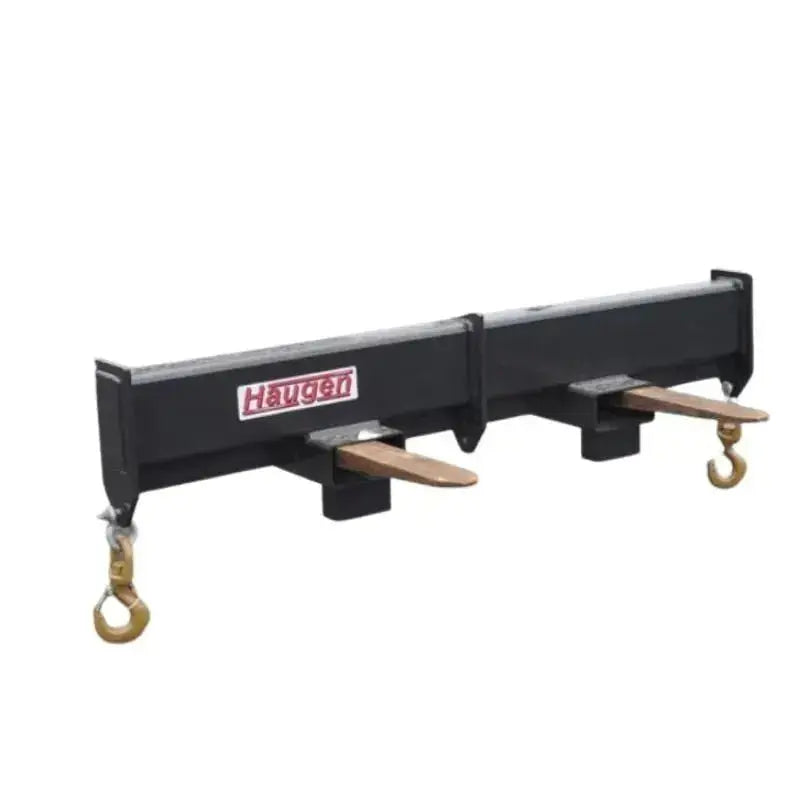

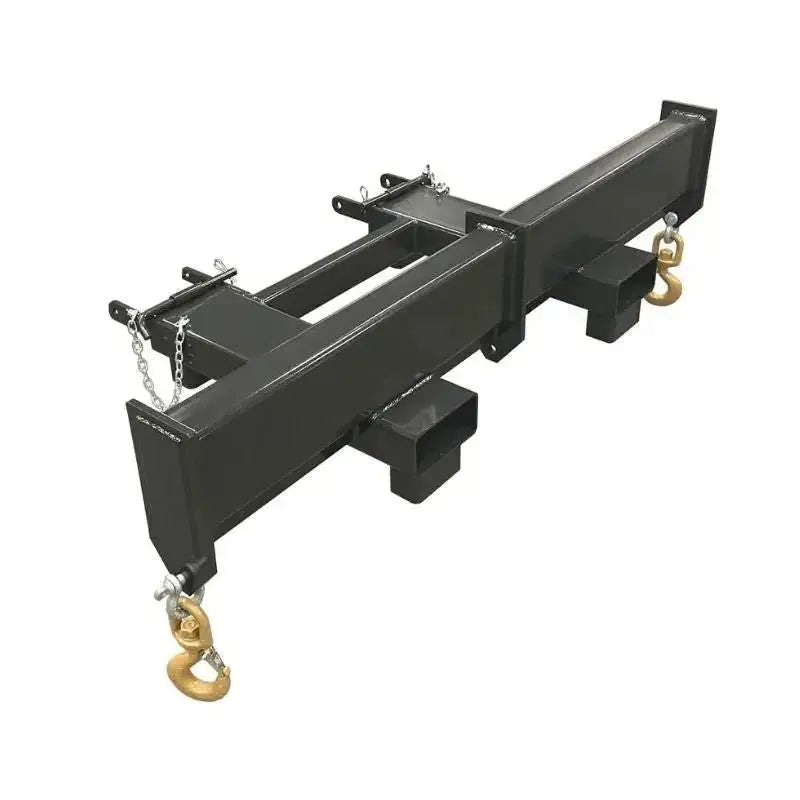

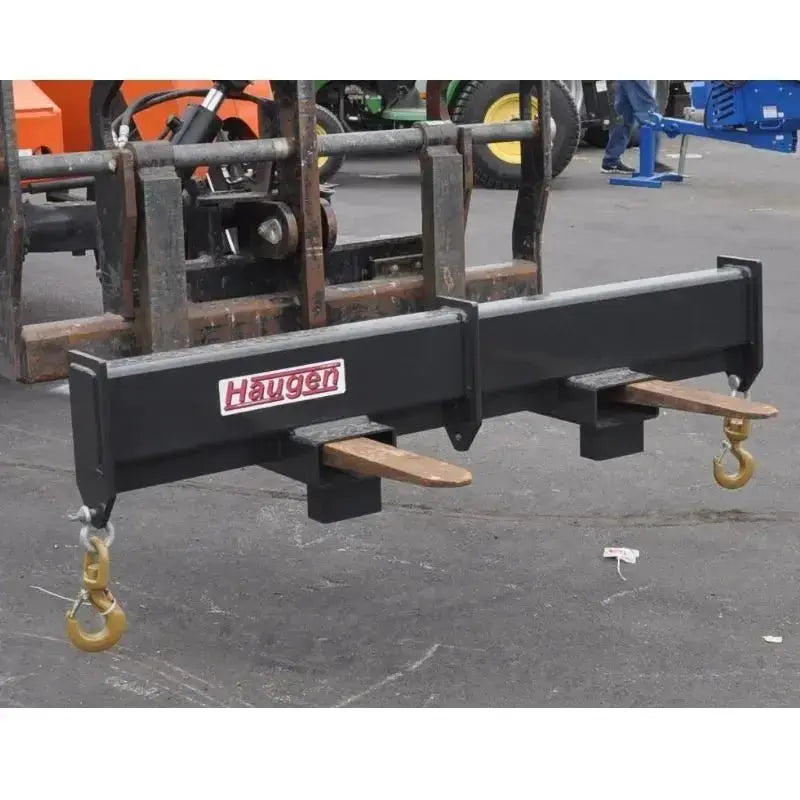

Haugen Fork Mounted Spreader Bar: Efficient and Precise Lifting
Haugen's Fork Mounted Rigid Spreader Bar is engineered to effortlessly and accurately lift up to 10,000 lbs, promising a quicker and easier job while ensuring compliance with safety regulations. This heavy-duty spreader bar is designed for durability and reliability, making it a steadfast choice for various lifting applications. Available in three lengths—72”, 96”, and 144”—this Spreader Bar is equipped with two five-ton swivel hooks, with the option to add a third if needed.
- Robust Construction: Built with heavy-duty construction, ensuring long-lasting durability and dependable performance over the years.
- Multiple Length Options: Available in three lengths—72”, 96”, and 144”—to cater to a range of job requirements.
Swivel Hooks:
- Equipped with two five (5) ton swivel hooks for secure and versatile lifting operations.
Fork Compatibility:
- Large fork pockets designed to accommodate tines ranging from 3.5” to 7.5”, secured with safety pins for added stability.
Load Rating:
- The centre position is rated for 10,000 lbs with a single hook, and the outside position's combined load rated at 10,000 lbs capacity.
Powder-Coated Finish:
- Features a powder-coated finish, enhancing resistance against corrosion and wear.
Optional Third Hook:
- Option to add a third hook if required, providing additional flexibility for specific lifting needs.
Safety Compliance:
- Built to meet and exceed OSHA and ANSI requirements, ensuring compliance with the highest safety standards.
Made in the USA:
- Crafted in the USA, guaranteeing quality and supporting local manufacturing.
Model | Length | Lift Capacity | Empty Weight |
---|---|---|---|
Center Position | 72” | 10,000 lbs | Refer to Chart |
Outside Positions | 96” | 10,000 lbs | Refer to Chart |
144” | 10,000 lbs | Refer to Chart |
Chart:
- Capacity and empty weight details available for your reference.
Choose Haugen's Fork Mounted Rigid Spreader Bar for efficient, precise, and violation-free lifting operations. With a 1-year warranty and a commitment to quality and safety, this spreader bar is an ideal addition to your lifting equipment arsenal.
