Power Rake Heavy Duty Series 2 | Blue Diamond

Description:

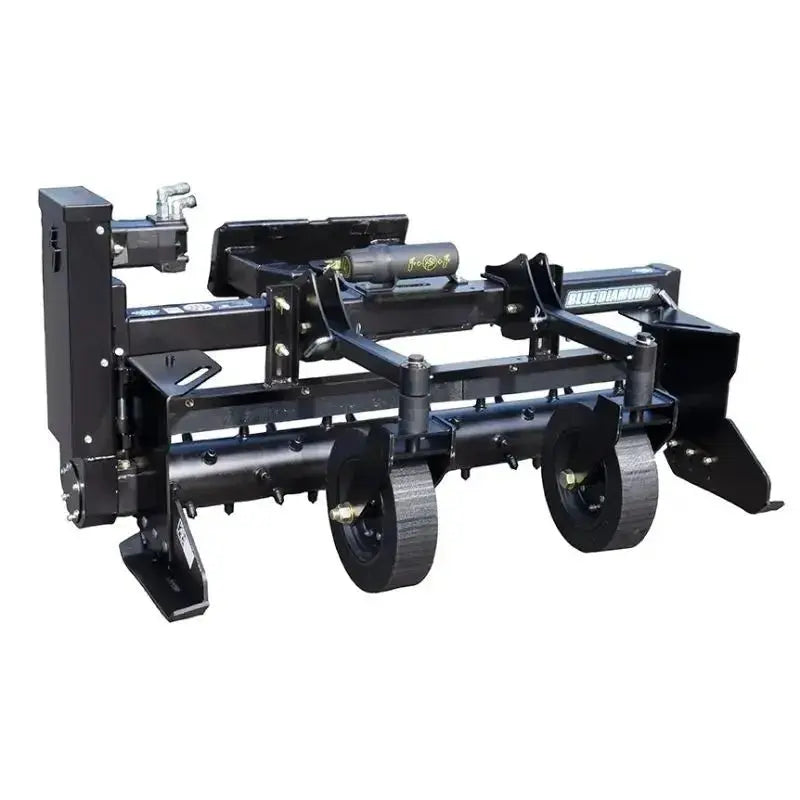

Heavy Duty Power Rake Series 2: Efficient Land Clearing for Smaller Frame Skid Steers

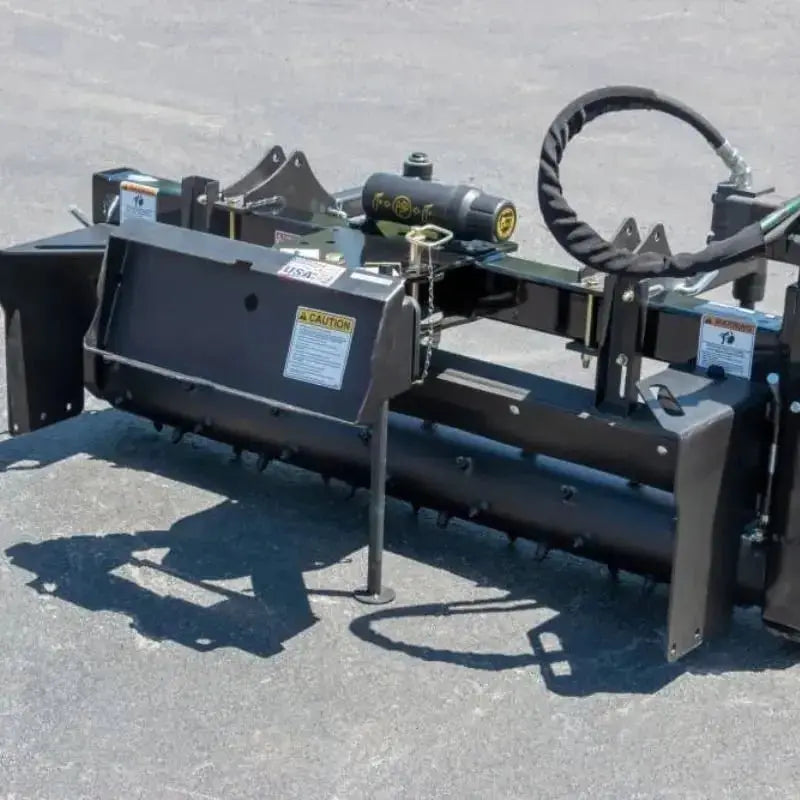

The Heavy Duty Series 2 Power Rake, a successor to the Severe Duty model, is designed for smaller frame skid steers and walk-behind machines. This versatile Power Rake attachment provides efficient land clearing capabilities, offering flexibility for rental companies and dealers, with bolt-on mounts compatible with both mini and full-size skid steer machines.

Key Features:

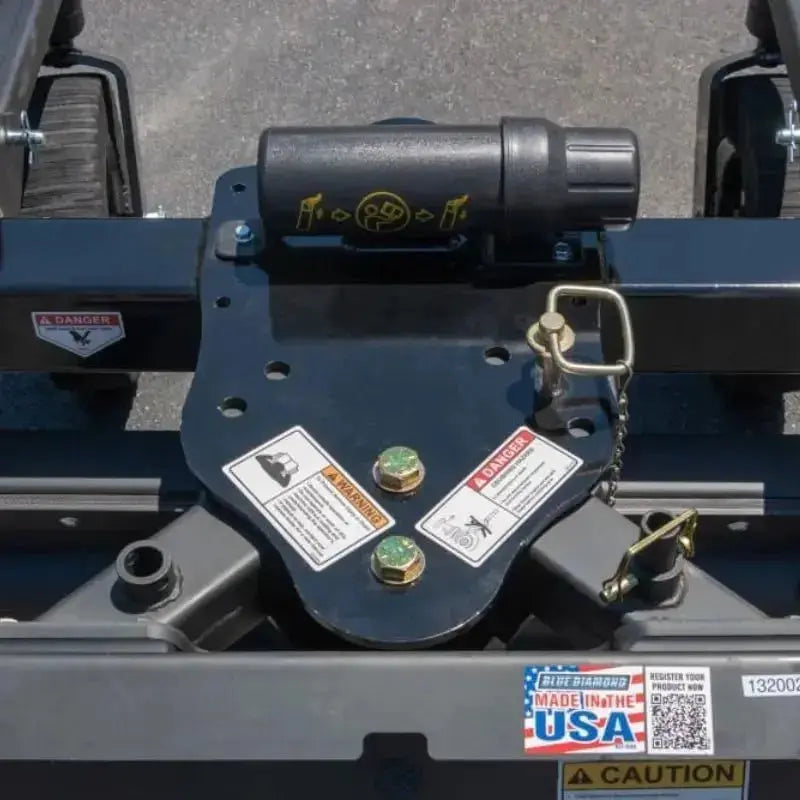

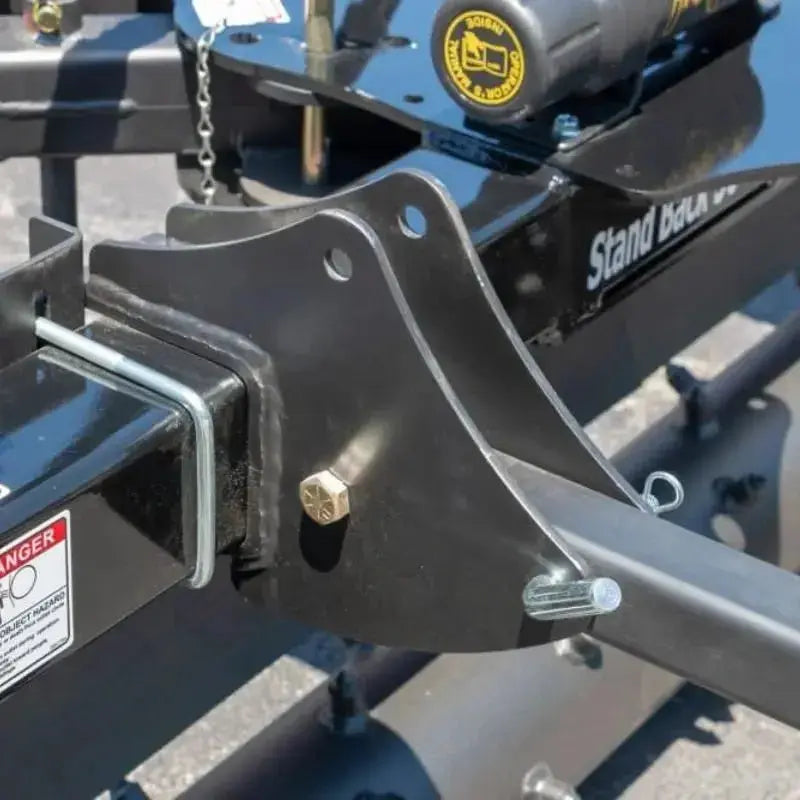

• Adaptable Mounting: Bolt-on mount allows flexibility for rental companies and dealers to choose the correct model for different machines. Mounts available for both mini and full-size skid steer machines.
• Working Width: Working width in the 10-degree angle is 3″ less than the rotor width. Working width in the 20-degree angle is 6″ less than the rotor width.

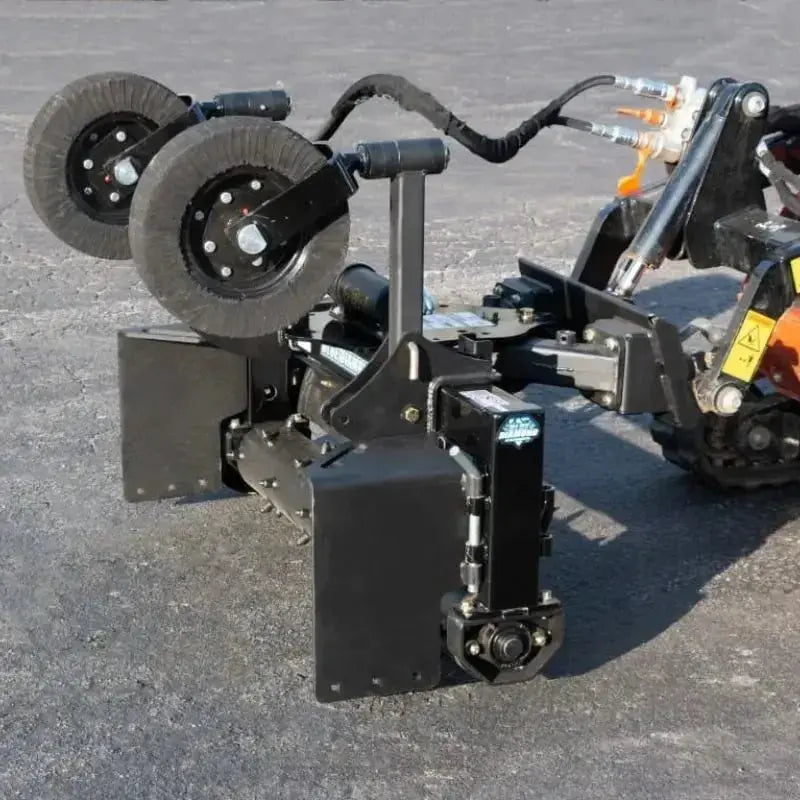

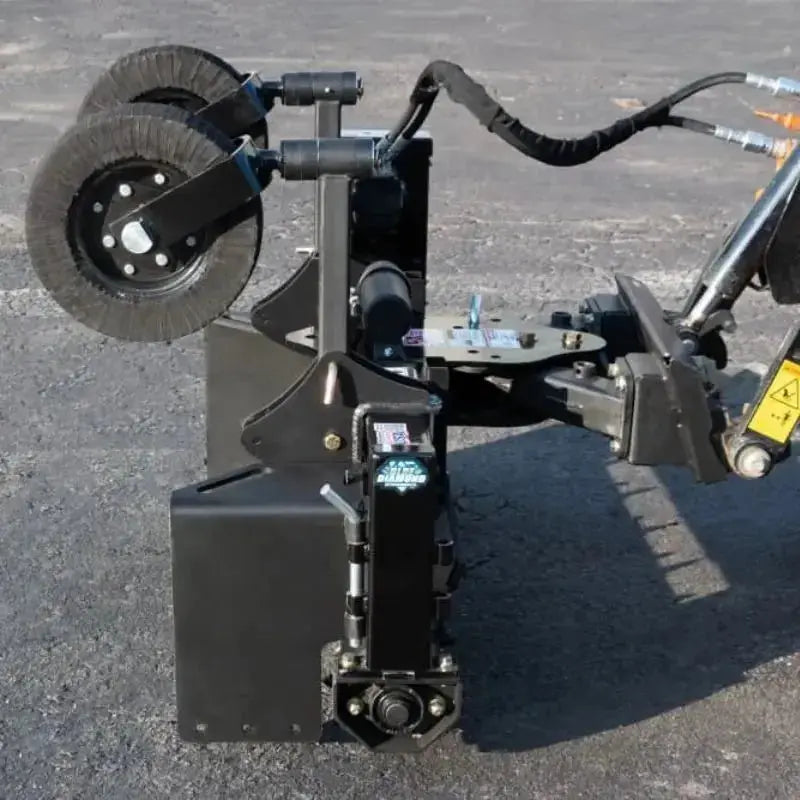

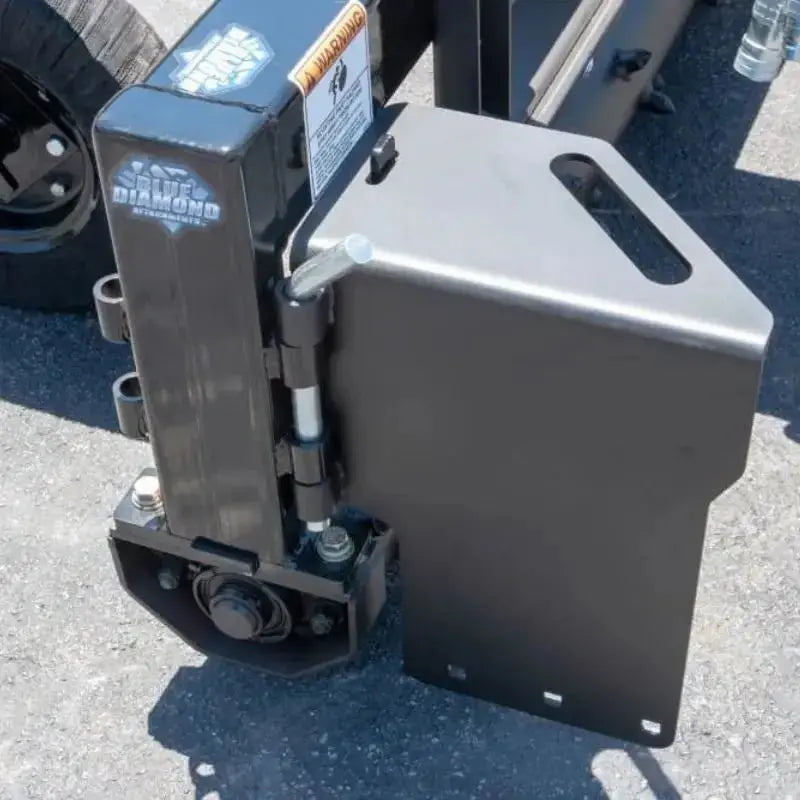

• Flip-Up Wheels: Convenient flip-up wheels for easy maneuverability.

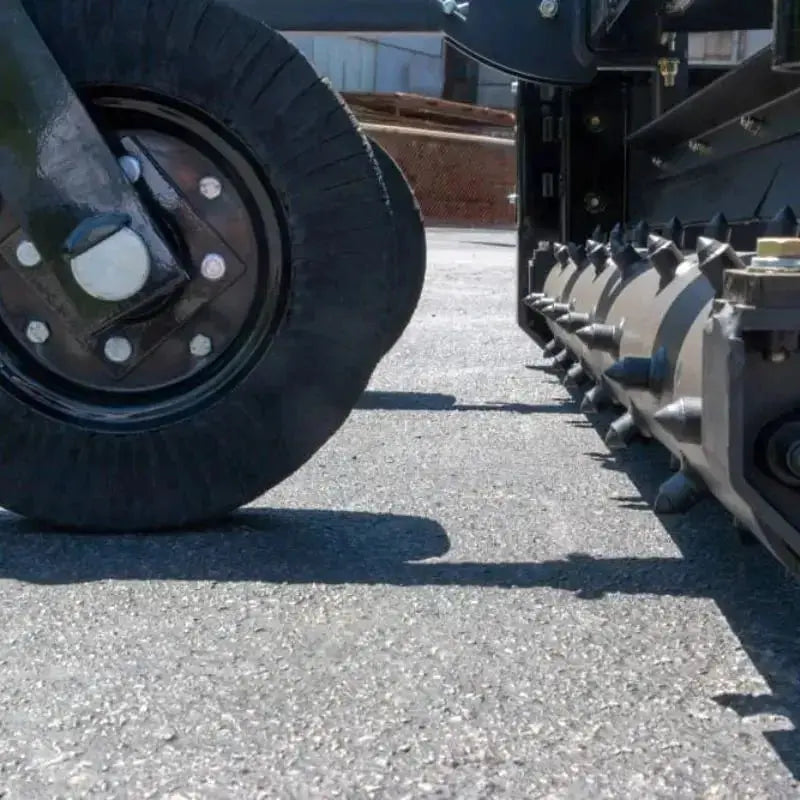

• No-Flat Airless Wheels: Equipped with no-flat airless wheels for enhanced durability.
• Drum Width Options: Available in drum widths of 48", 60", and 72".
• Greaseable Axles: 7/8" greaseable axles on wheels for smooth operation.

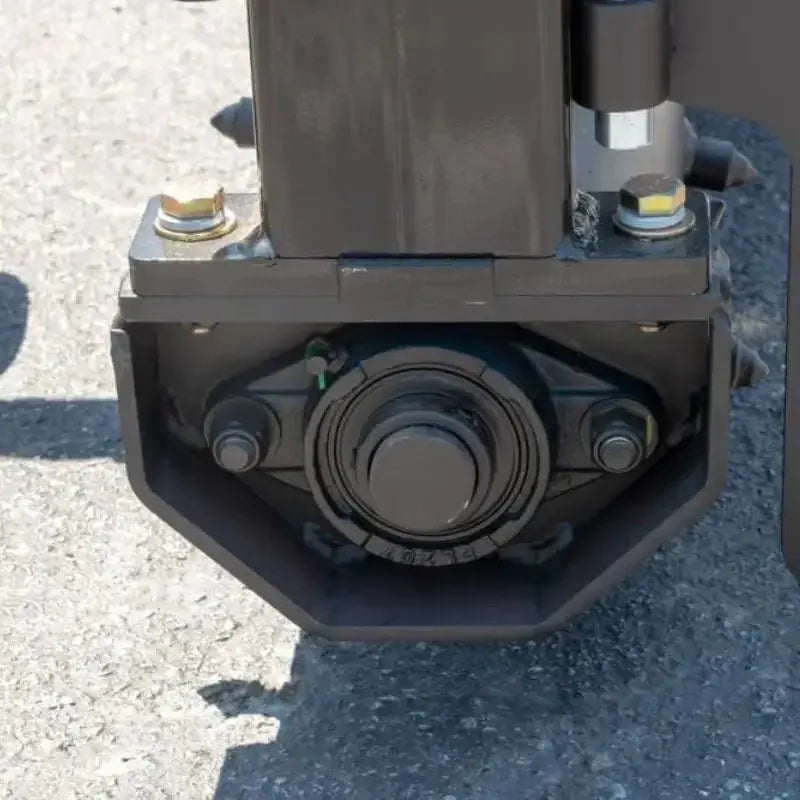

• Durable Construction: 7" diameter drum with 1.5" teeth. 1.25" spindles with adjustable height. Spindles on drum are 1 3/8" diameter with greaseable bearings. Fixed carbide teeth for long-lasting performance.
• Overall Width: Overall width is 9" more than the drum width.
• Weight Options: Available in different weight options based on the model.

Size/Model Options:

• 48" Replaceable Teeth: Working Width (Straight): 48"; Overall Working Width (Straight): 58"; Weight: 580 lbs
• 48" Fixed Teeth: Working Width (Straight): 48"; Overall Working Width (Straight): 58"; Weight: 580 lbs
• 60" Replaceable Teeth: Working Width (Straight): 60"; Overall Working Width (Straight): 70"; Weight: 600 lbs
• 60" Fixed Teeth: Working Width (Straight): 60"; Overall Working Width (Straight): 70"; Weight: 600 lbs
• 72" Replaceable Teeth:  Working Width (Straight): 72"; Overall Working Width (Straight): 82"; Weight: 628 lbs
• 72" Fixed Teeth:  Working Width (Straight): 72"; Overall Working Width (Straight): 82"; Weight: 628 lbs;

The Heavy Duty Power Rake Series 2 is the ideal solution for efficient land clearing, offering durability, adaptability, and a range of options to meet your specific needs.
