Pickup Broom Series 2 | Blue Diamond

Pickup Broom Series 2 | Blue Diamond

Regular price $8,365.99 USD
Regular price Sale price $8,365.99 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description:

Blue Diamond Commercial-Grade Pickup Broom:

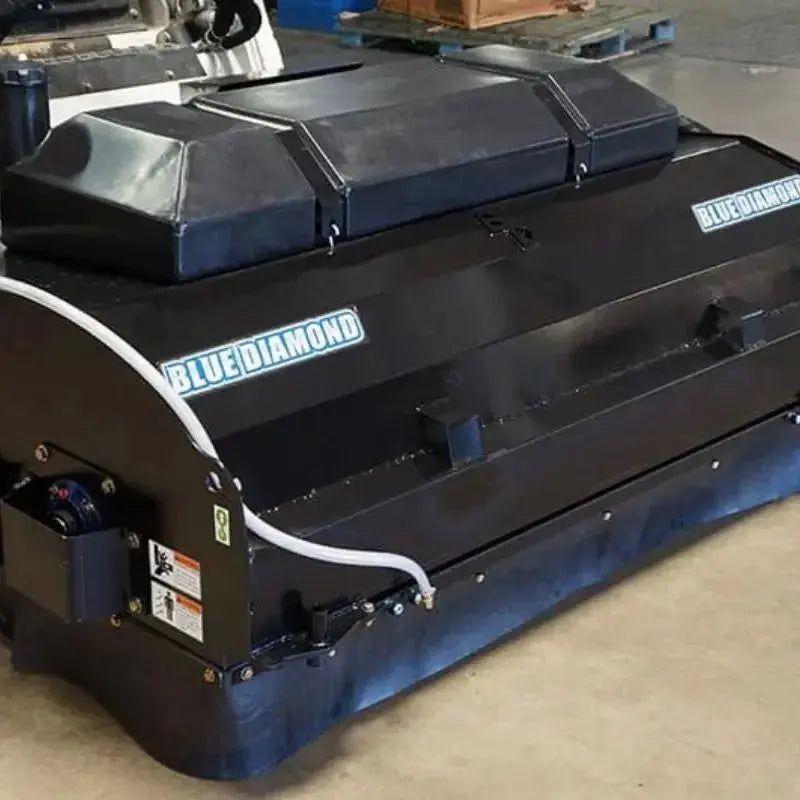

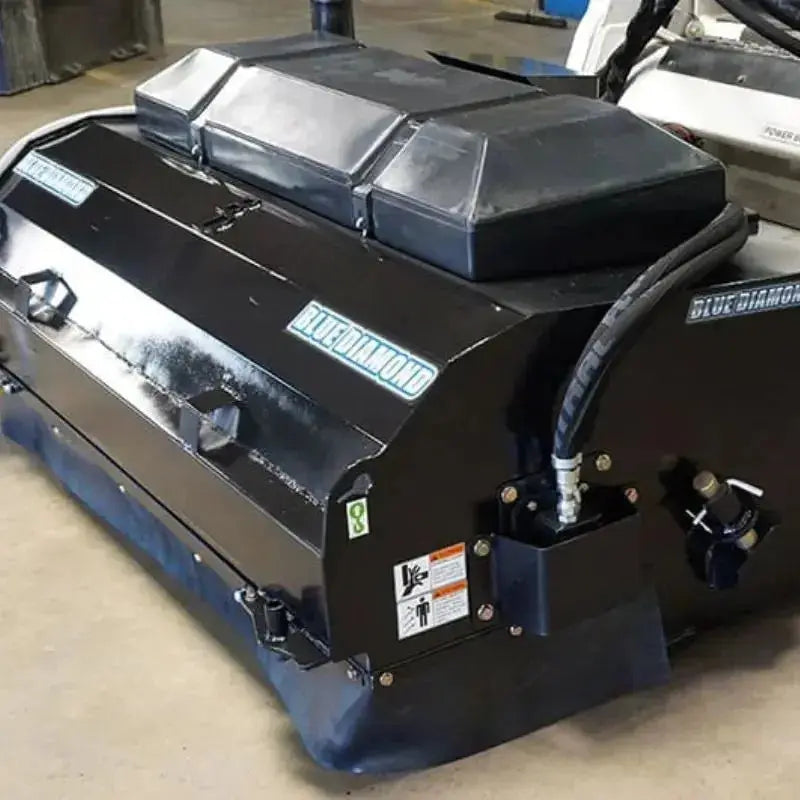

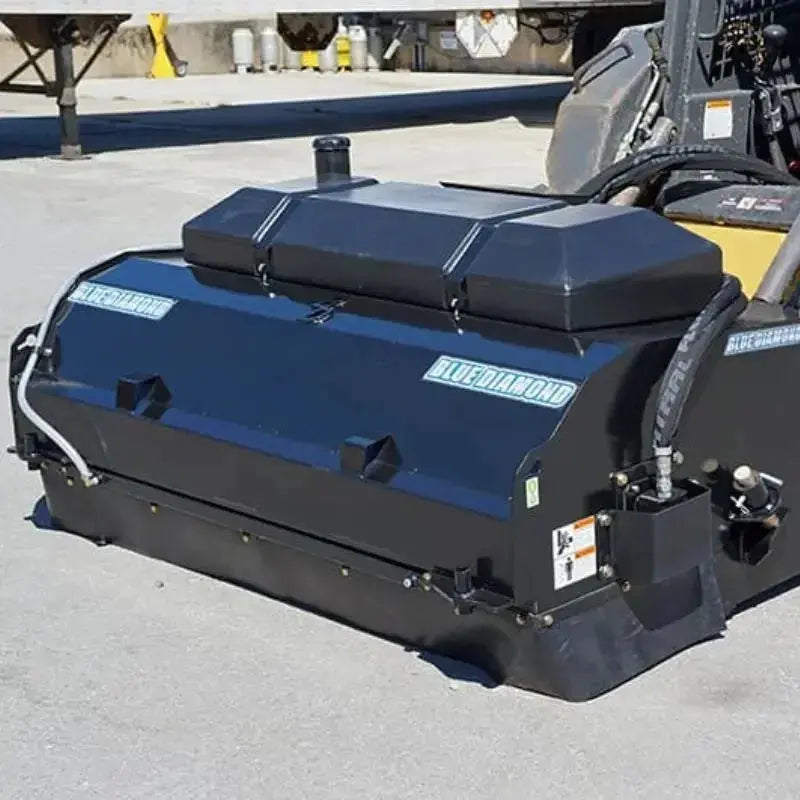

Introducing the Blue Diamond Commercial-Grade Pickup Broom: Engineered for Robust Applications. Our Premium Pickup Broom, meticulously crafted by Blue Diamond, is tailor-made for heavy commercial use, born out of extensive market research, and designed to endure the demanding conditions of roadwork and rental applications. Featuring a sleek and straightforward design, it reinforces durability in high-wear areas, such as the broom shroud's front, elevating its resilience.

Key Features:

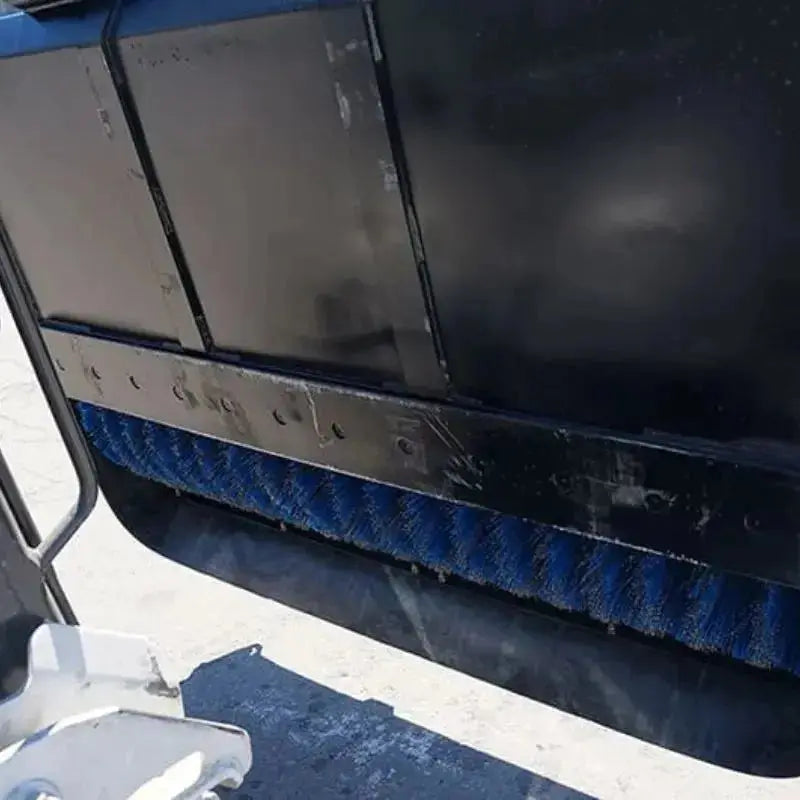

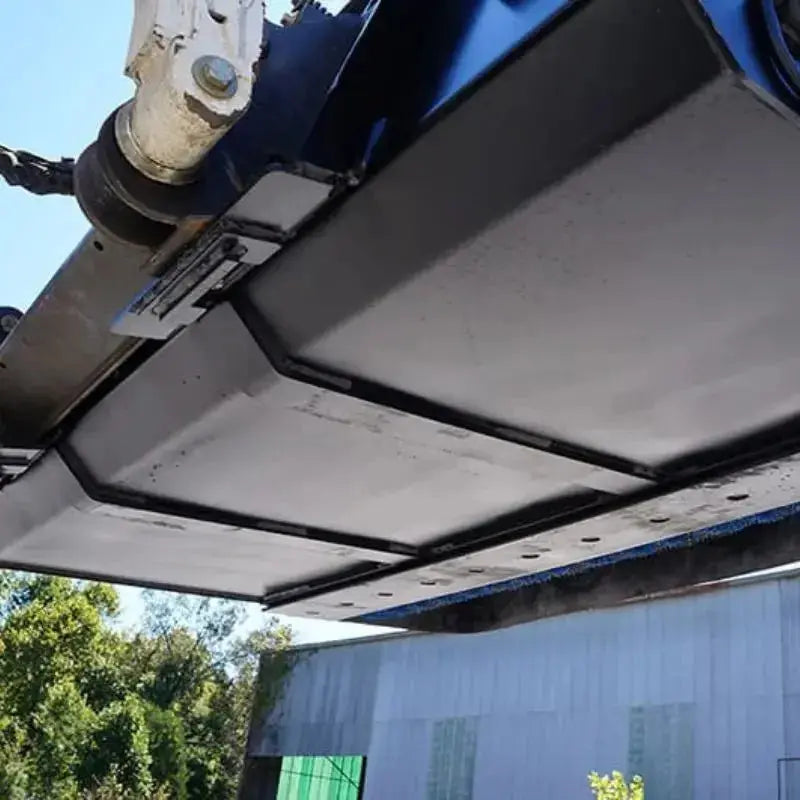

  • Enhanced Durability: Oversized bolt-on 8″ x ¾" double bevel edge for added strength and wear protection. Wear bars welded to the bottom for stability and to prevent premature wear. Oversize bearings and spindles for superior durability.
  • User-Friendly Design: Bolt-on rubber skirting with grease fittings on pivot points and bearings. Available in four versatile variants to cater to diverse requirements.Efficiency Boosters:

Efficiency Boosters:

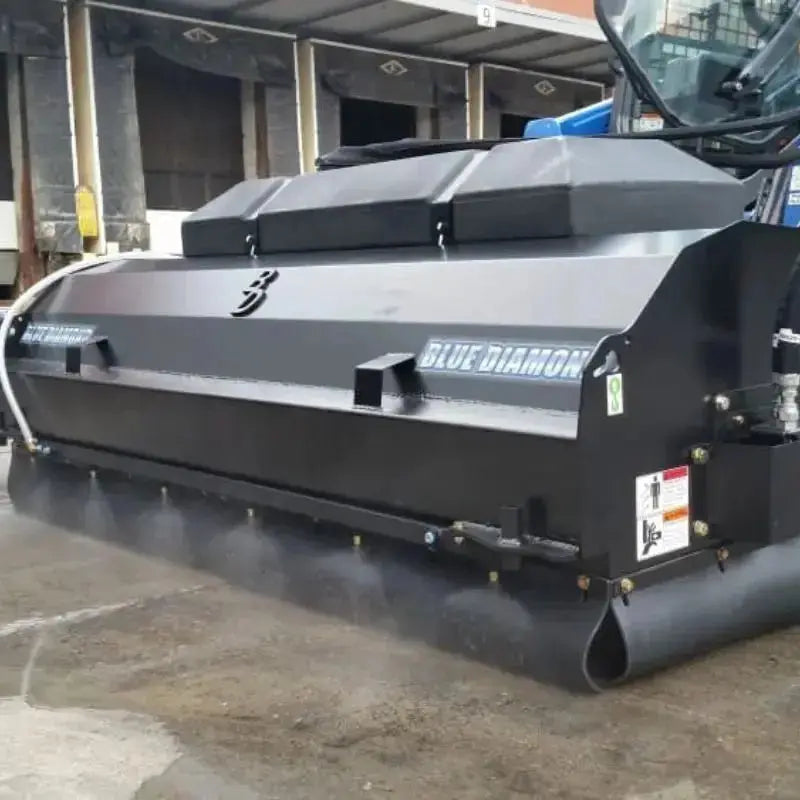

  • Predrilled for an optional pressurized water system.

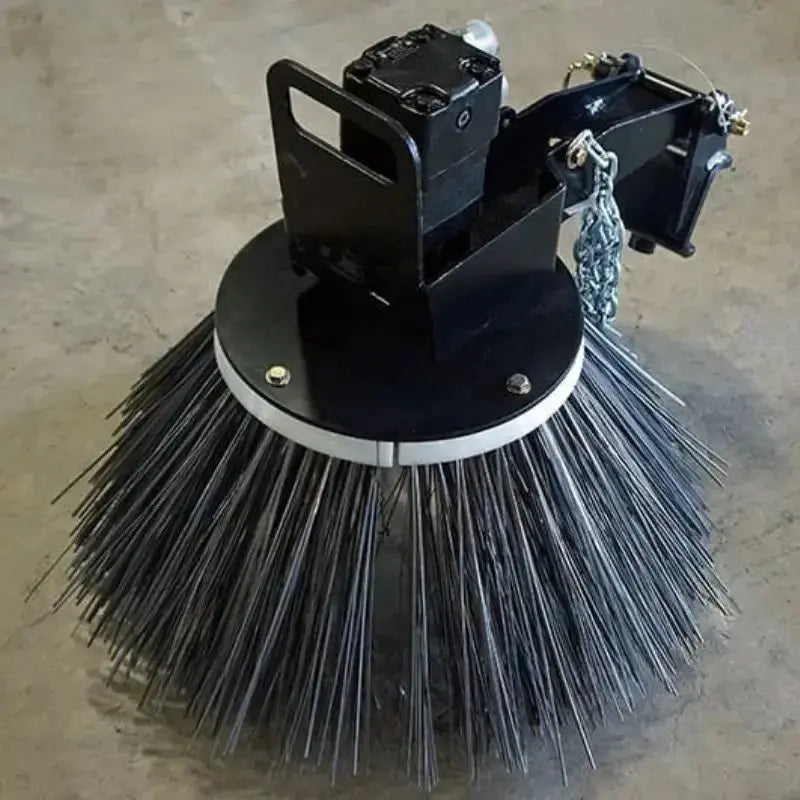

  • Mounts for a gutter brush are included.
  • Motor and shaft guards for enhanced safety.
  • 1 1/2″ x 7″ Zinc height adjustment pins with 4 positions.
  • Heavy-duty dump stops.
  • Grease fittings on all pivot points and bearings.

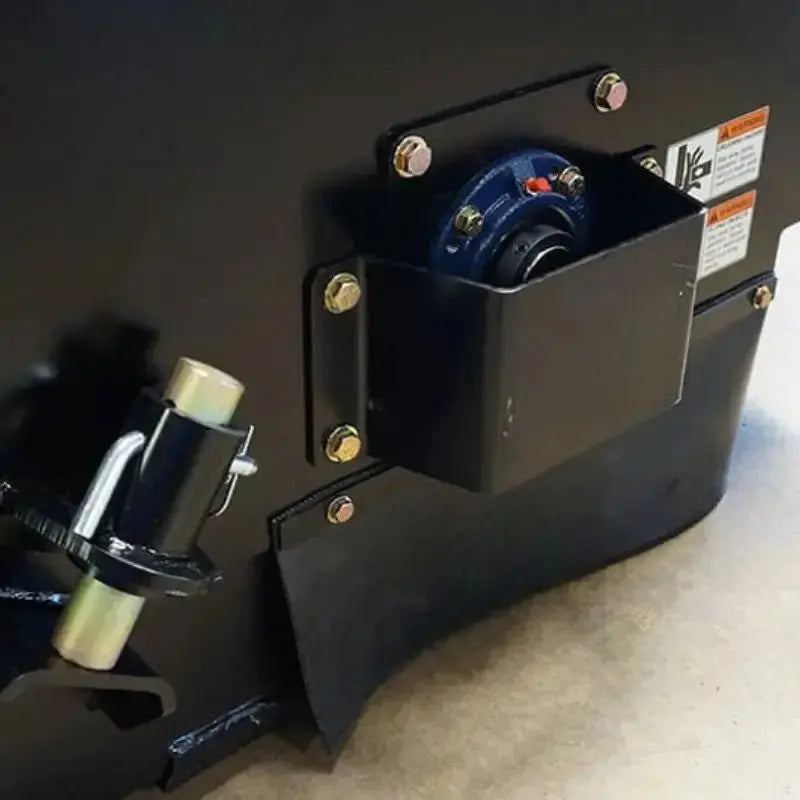

  • Heavy 2″ main shaft and oversized 6″ bearings.
  • 7″ tall front crash bar.
  • Dimensions: 28″ high x 58″ long.

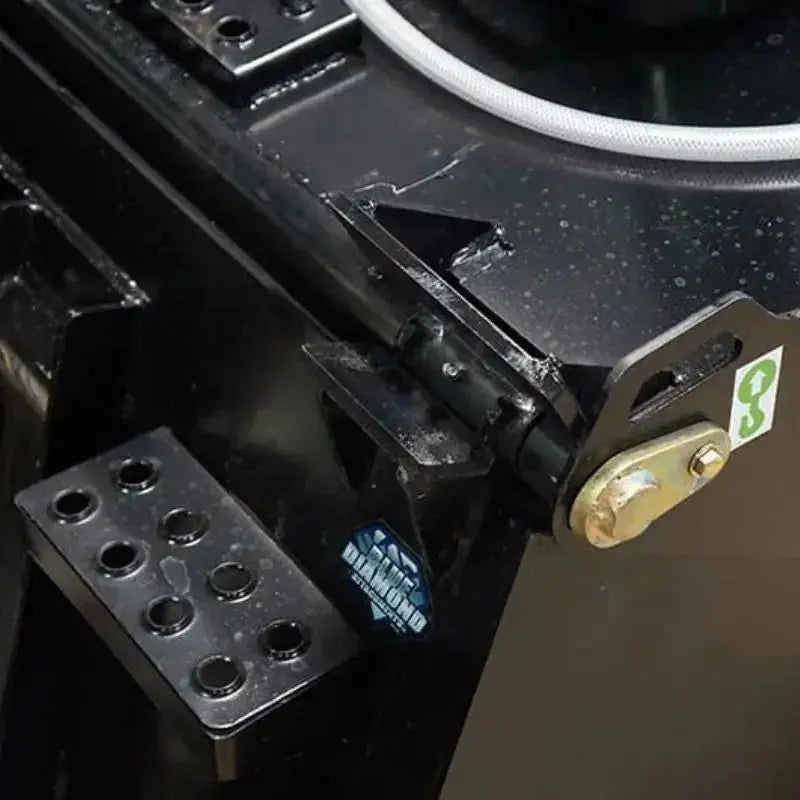

  • Steps mounted on the back for easy machine entry and exit.

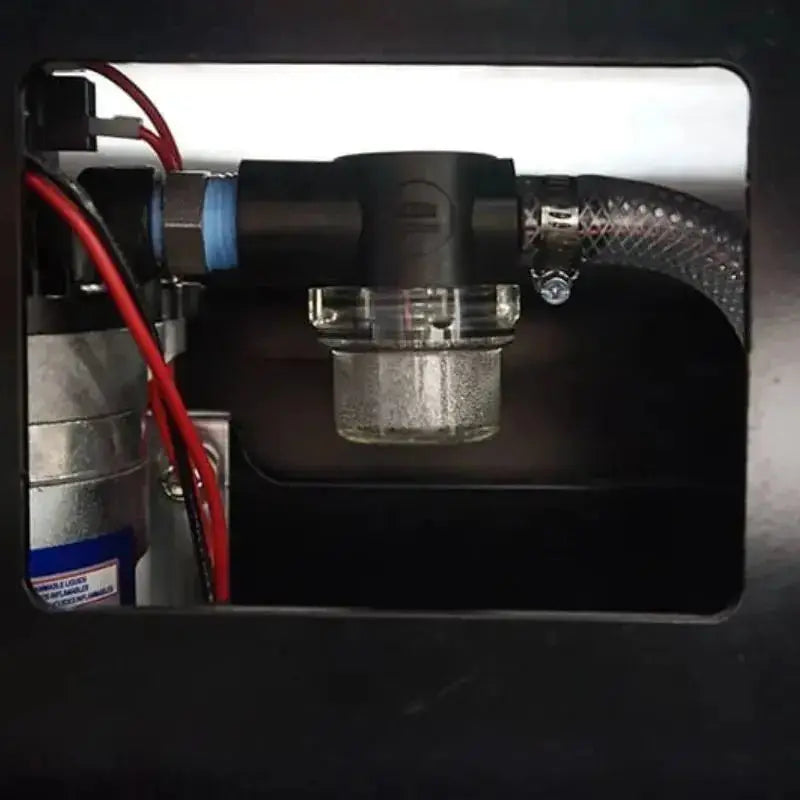

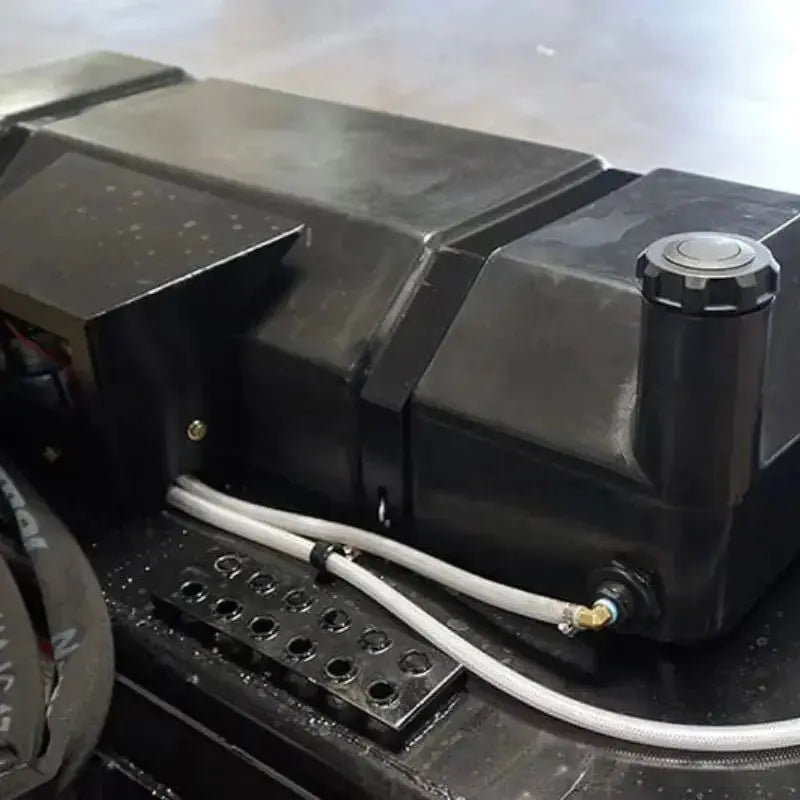

  • Optional 37-gallon low-profile water kit.
  • Water Kit and Gutter Brush are available for all models.

Specifications:


  • 60" Size:

    • Weight: 995 lbs.
    • Wire / Poly Wafers: 15 Wire / 16 Poly.
    • Total Wafers: 31.
    • Water Run Time: 58 Minutes.
    • Flow Range: 15-25 GPM.
  • 72" Size:

    • Weight: 1125 lbs.
    • Wire / Poly Wafers: 18 Wire / 19 Poly.
    • Total Wafers: 37.
    • Water Run Time: 40 Minutes.
    • Flow Range: 15-25 GPM.
  • 84" Size:

    • Weight: 1300 lbs.
    • Wire / Poly Wafers: 21 Wire / 22 Poly.
    • Total Wafers: 43.
    • Water Run Time: 38 Minutes.
    • Flow Range: 15-25 GPM.
  • 96" Size:

    • Weight: 1450 lbs.
    • Wire / Poly Wafers: 24 Wire / 25 Poly.
    • Total Wafers: 49.
    • Water Run Time: 33 Minutes.
    • Flow Range: 15-25 GPM.
