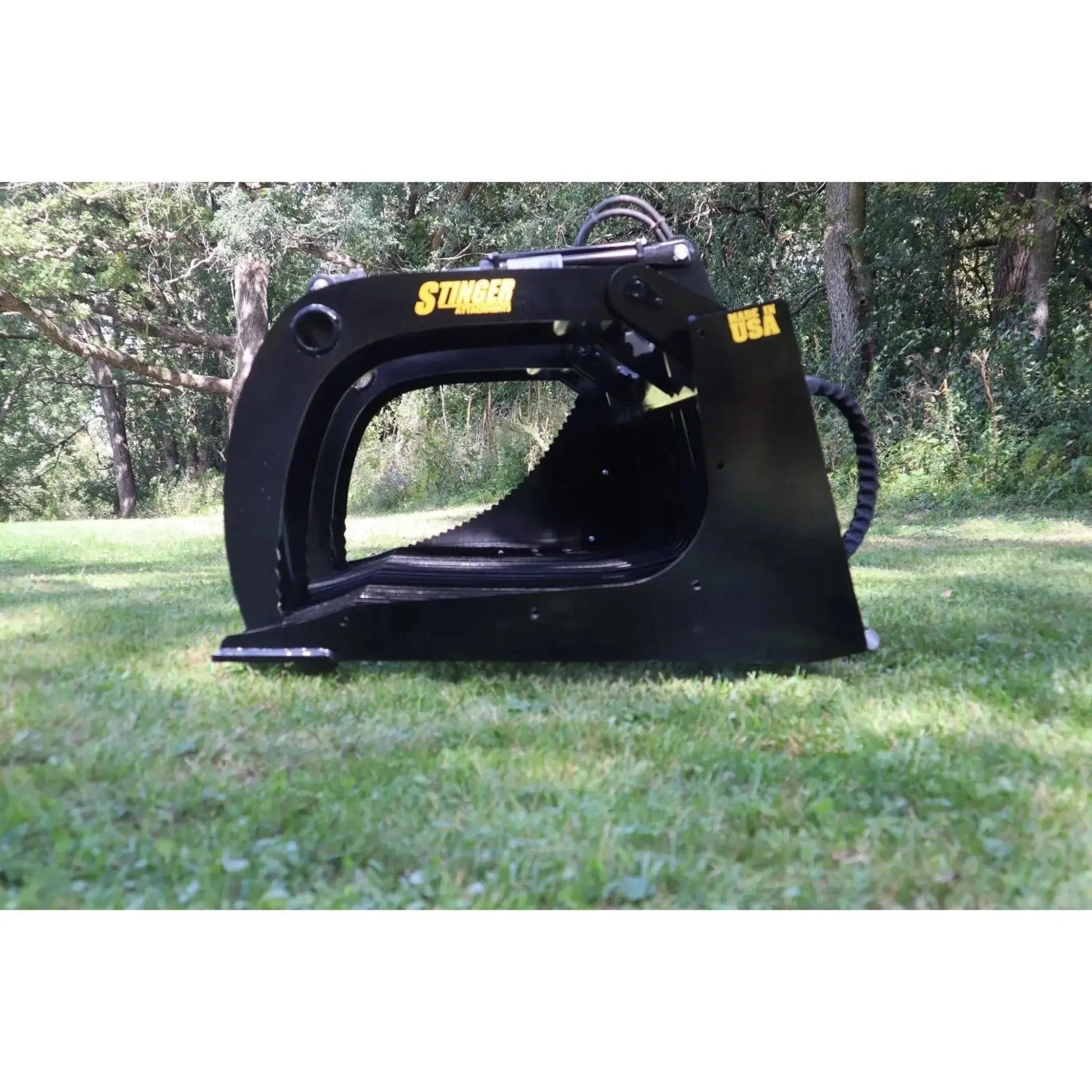

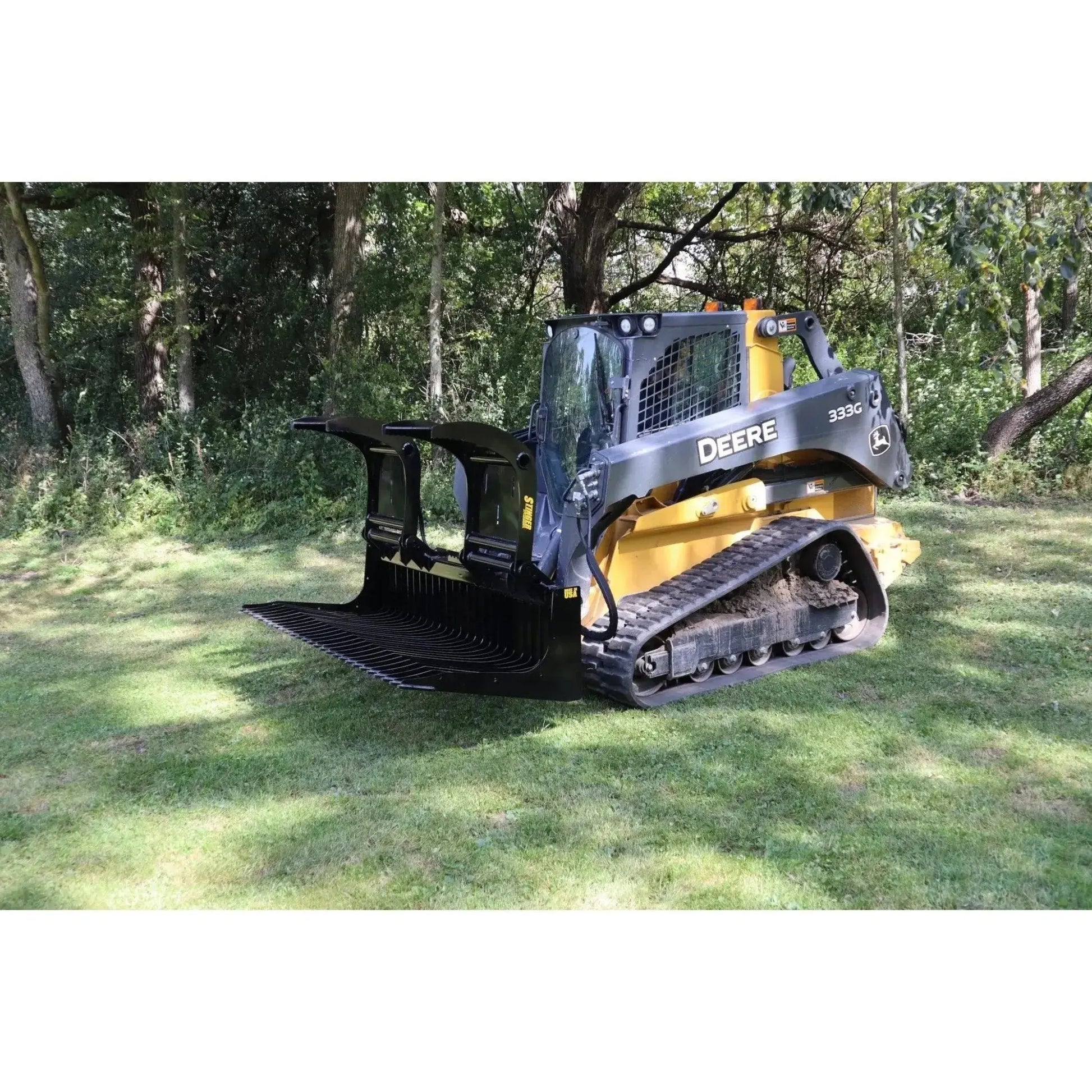

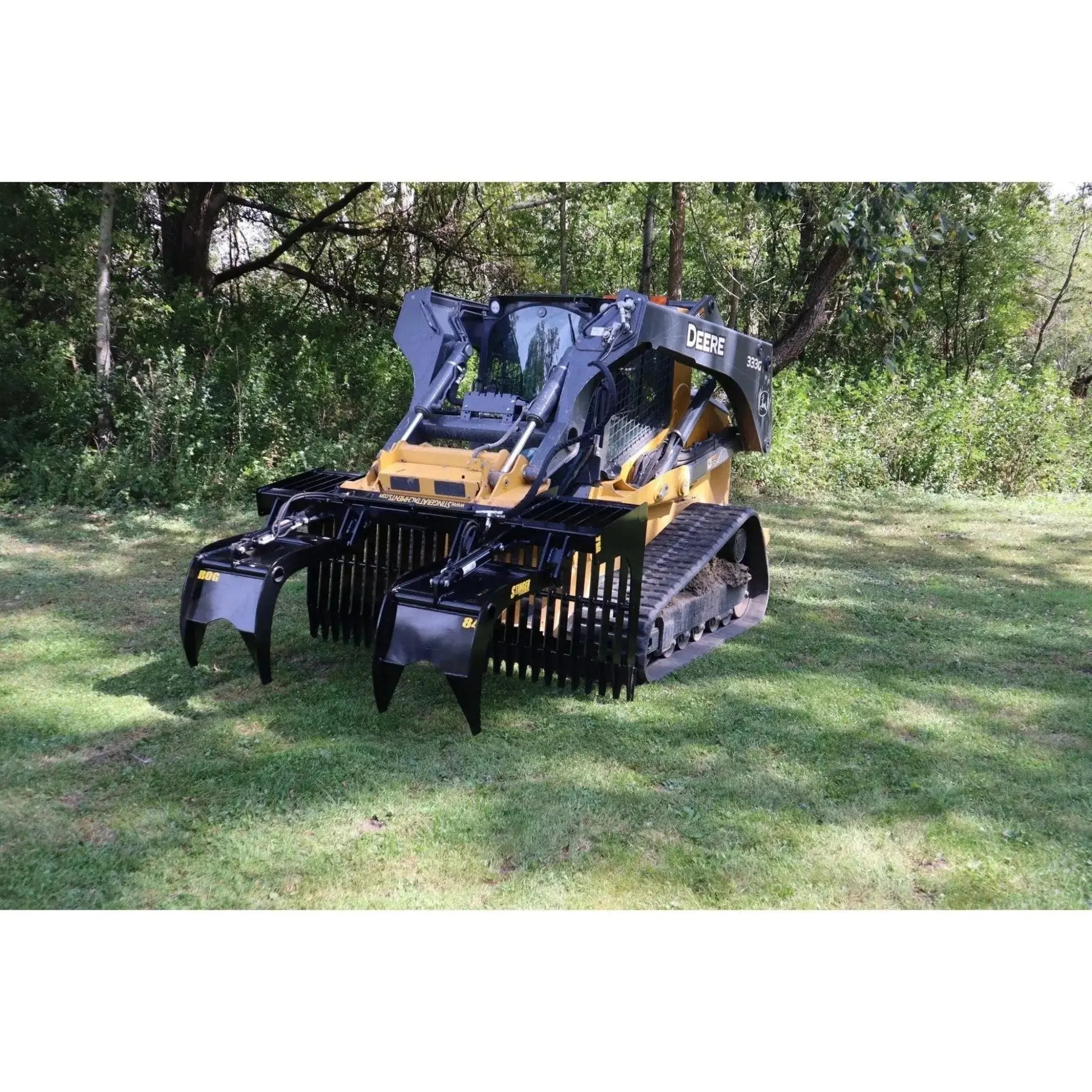

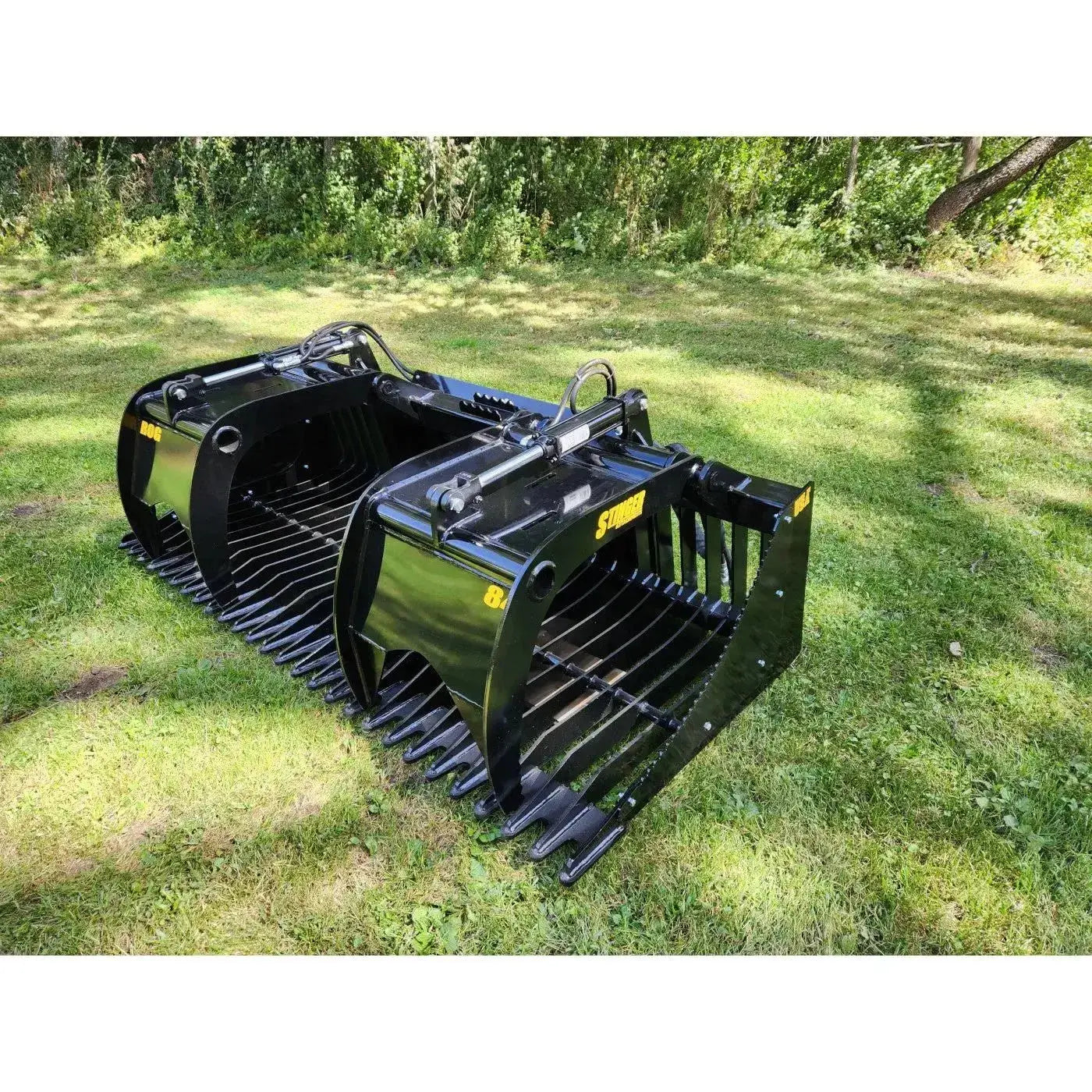

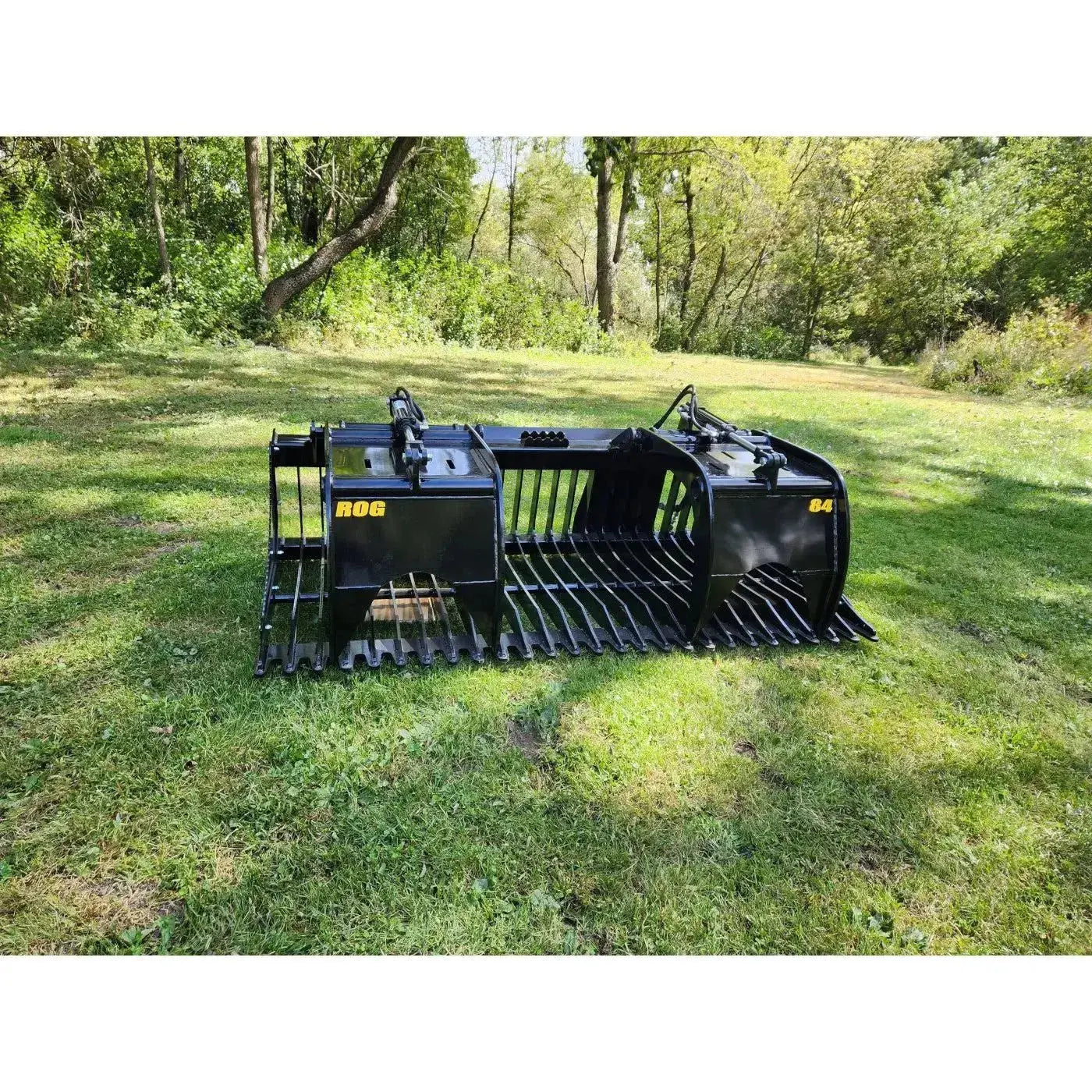

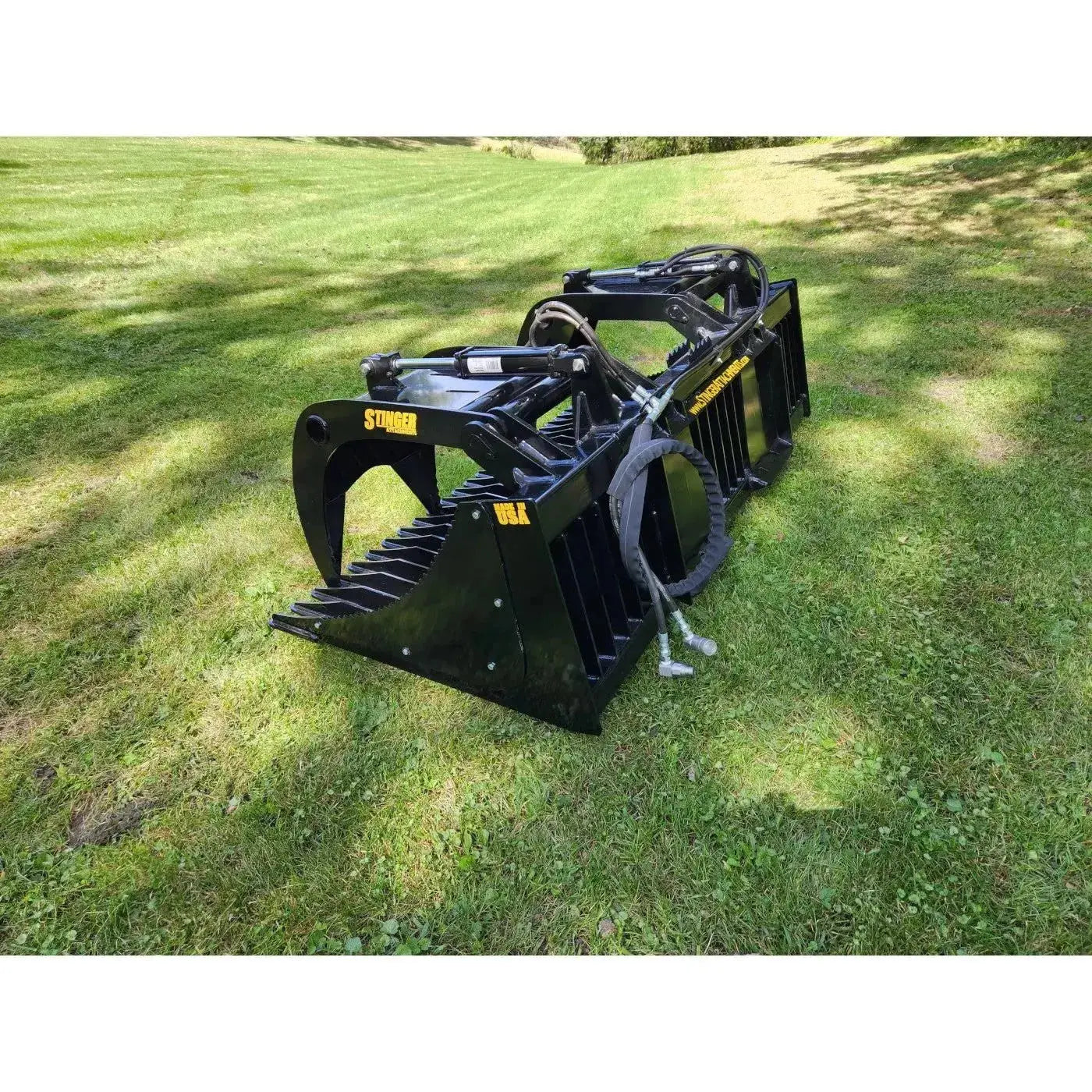

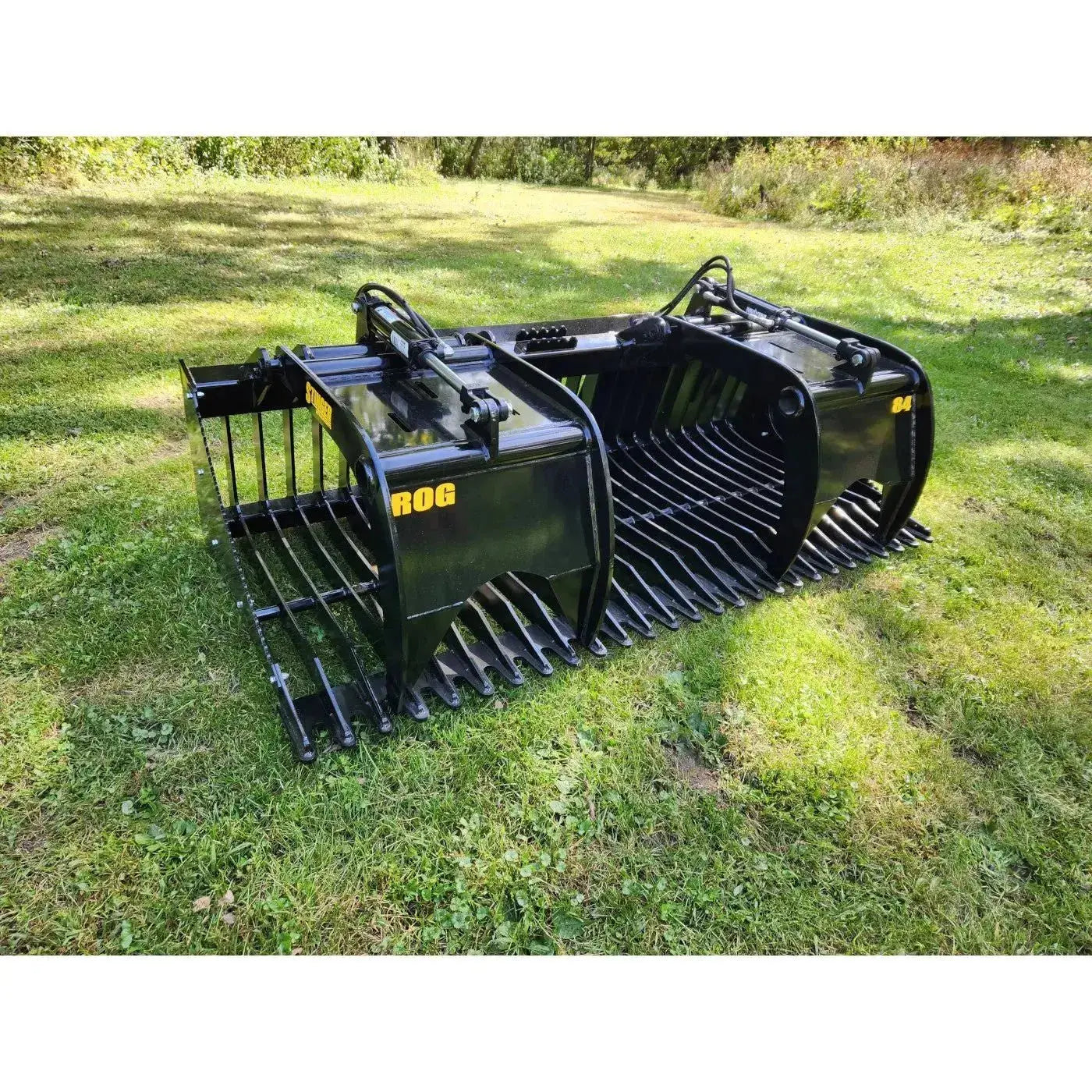

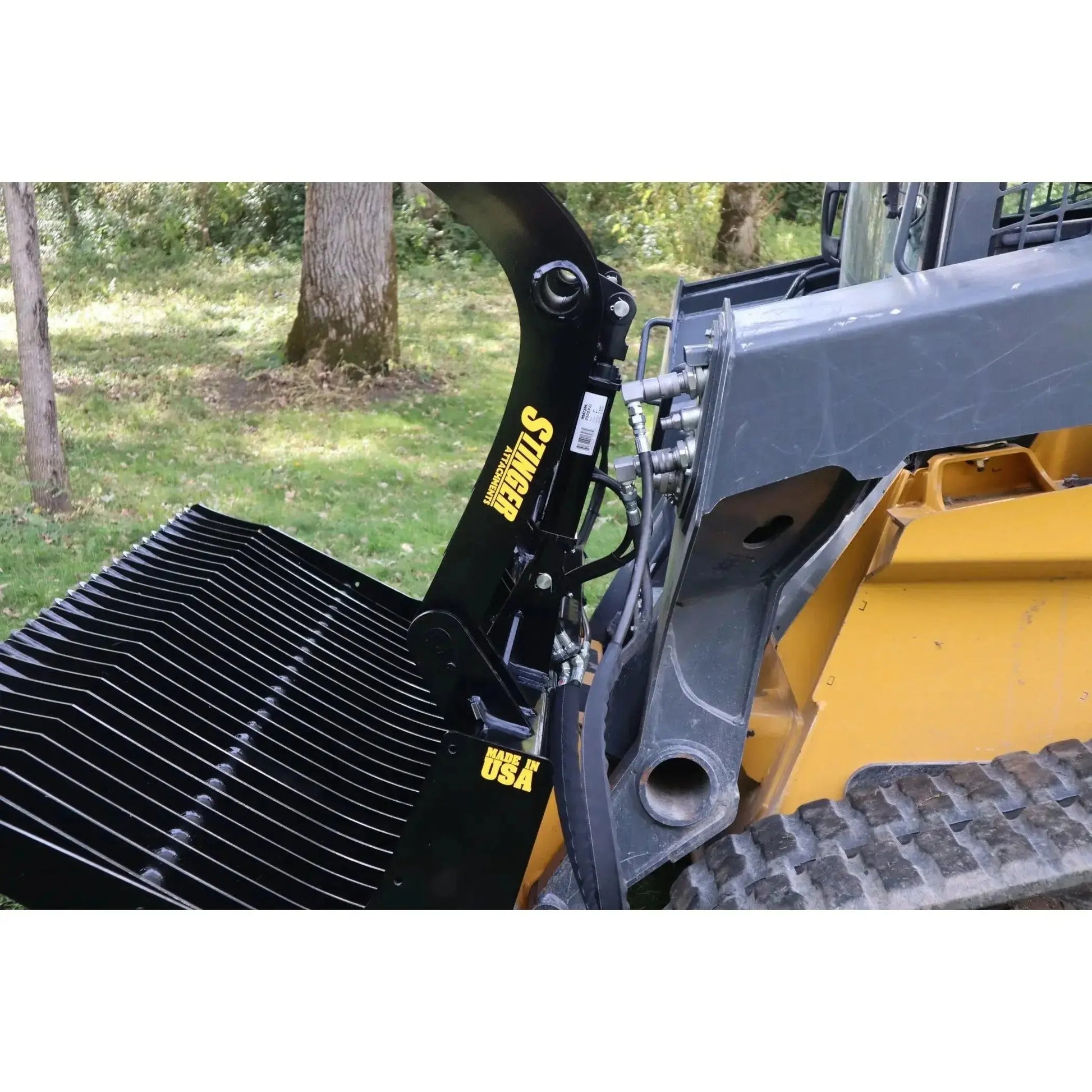

Open Sides Rock Grapple Bucket (ROG)

Open Sides Rock Grapple Bucket (ROG)

Regular price $3,135.00 USD
Regular price Sale price $3,135.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Size
Bolt on Sides
Extreme Duty Grapples

Specs Features:



Size Weight Material Cut-Edge
60″ 860lbs 3/8″ Gr.50 1/2″ Gr.50
66″ 903lbs 3/8″ Gr.50 1/2″ Gr.50
72″ 965lbs 3/8″ Gr.50 1/2″ Gr.50
78″ 1005lbs 3/8″ Gr.50 1/2″ Gr.50
80″ 1035lbs 3/8″ Gr.50 1/2″ Gr.50
84″ 1055lbs 3/8″ Gr.50 1/2″ Gr.50
88″ 1080lbs 3/8″ Gr.50 1/2″ Gr.50

Product is built with large 4×4 upper square tubing, and heavy-duty 3/8 plate steel throughout the entire bucket to truly add life and economic viability of the product. Heavy-duty tines are spaced 3.25” apart so larger items will stay in the bucket while loose dirt or dust falls through. Two heavy-duty independent grapples powered by two Maxim 2500 psi cylinders have a massive 48″ opening and are completely removable in less than 10 minutes to make sure you can handle any job

Bucket

Structural steel materials and reinforcement on the top and bottom let this rock grapple’s bucket hold the toughest materials. The universal mounting plate fits most popular skid steer makes, including Bobcat, John Deere and Kubota. Ask us about custom mounting options or leaving the attachment clear for your own mounting plate.

  • Grade 50 steel (3/8″ Tines)
  • 4″x 4″x 1/4″ top tubing
  • 3″x 3″x 1/4″ bottom tubing
  • 1/2″ serrated cut edge
  • 2-7/8″ opening between tines
  • Universal skid steer mount plate
  • (Call for other mounting options)

Grapples

Increase your grapple load with a wide 48-inch opening and twin-cylinder grapples that adjust separately.

  • 48″ grapple opening
  • Twin 2500 psi cylinders
  • 1/2″ flat face couplers included

Video Overview:

Warranty & Returns:

Stinger Attachments warrants each new product manufactured by us to be free from defects in material and workmanship for a period of Twenty-Four (24) months from date of delivery to the original purchaser. Certain Items may have an extended warranty such as cascade forks, and eaton drive motors. Please check each product page for more information.

All returns must be in new condition with all freight costs the responsibility of the buyer. No returns accepted after 10 days of buyer receiving the product.
