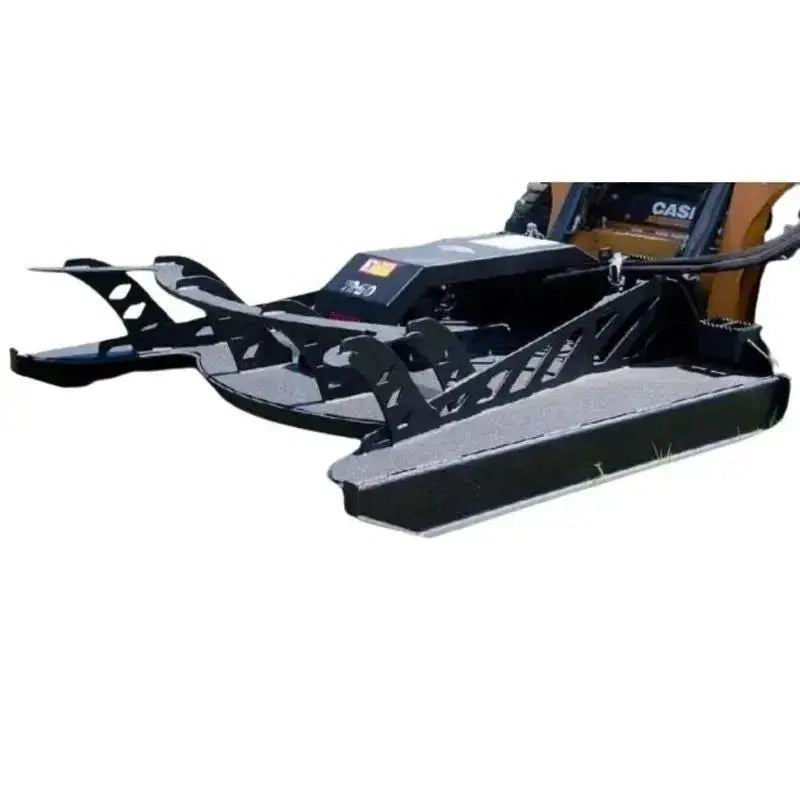

Open Front Brush Cutter | Top Dog Attachments

Blade Precision:

• The blade carrier is constructed from laser-cut plate for exceptional durability.
• Counter-clockwise blade rotation for efficient cutting.

Versatile Cutting:

• Accommodates cutting capacities of up to 3 1/2", making it suitable for various vegetation.

Powerful Drive:

• Equipped with a reliable Eskridge drive for optimal performance.

Robust Motor:

• Features a 6.1 cu in motor for efficient and powerful cutting.

Hydraulic Efficiency:

• Flat Face 1/2” Body ISO16028 hydraulic couplers for seamless connectivity.
• 3/4” hydraulic hoses ensure effective fluid flow.

Sturdy Construction:

• Wear bars measuring 3/8” thick, welded onto the cutter for extended longevity.
• 1/4” deck thickness for added durability.

Customization Options:

• High-flow options available (contact us for pricing).

Model 60″:

• Overall Width: 64”
• Overall Length: 74”
• Blades: 5/8” x 5” and 2½” Drop – 19.25” hole to tip
• Bolts: BB100A
• Blade Carrier: 3/4” T1, 27” Diameter
• Weight: 950 Lbs
• Blade Tip Speed: Min @ 15 GPM (8.547 FPM) Max @ 25 GPM (14244 FPM )

Model 66″:

• Overall Width: 70”
• Overall Length: 82”
• Blades: 5/8” x 5” and 2½” Drop – 19.25” hole to tip
• Bolts: BB100A
• Blade Carrier: 3/4” T1, 32” Diameter
• Weight: 1120 Lbs
• Blade Tip Speed: Min @ 15 GPM (9587 FPM) Max @ 25 GPM (15978 FPM )

Model 72″:

• Overall Width: 75.5”
• Overall Length: 88”
• Blades: 5/8” x 5” and 2½” Drop – 25.25” hole to tip
• Bolts: BB100A
• Blade Carrier: 3/4” T1, 27” Diameter
• Weight: 1220 Lbs
• Blade Tip Speed: Min @ 15 GPM (8482 FPM) Max @ 25 GPM (14136 FPM )

Model 78″:

• Overall Width: 85”
• Overall Length: 96”
• Blades: 5/8” x 5” and 2½” Drop – 25.25” hole to tip
• Bolts: BB100A
• Blade Carrier: 3/4” T1, 35¼” Diameter
• Weight: 1585 Lbs
• Blade Tip Speed: Min @ 15 GPM (11594 FPM) Max @ 25 GPM (19323 FPM )
