Mini Grapple Buckets - Dingo Ditchwitch Vermeer Boxer Ramrod Bobcat

Description:

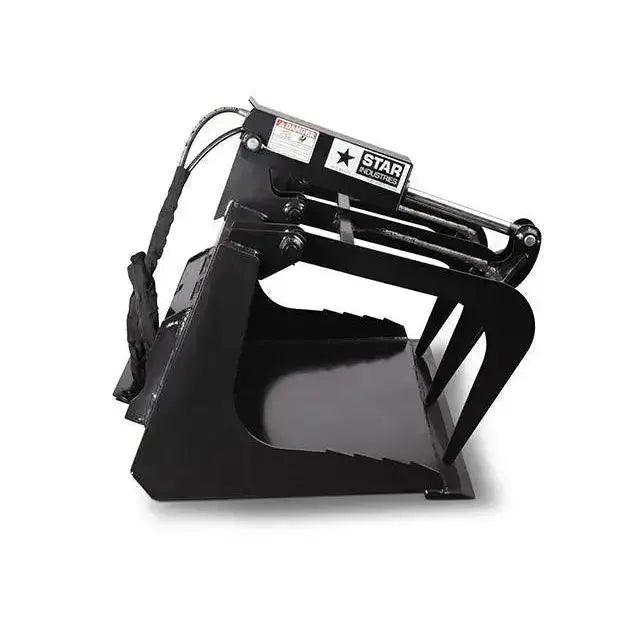

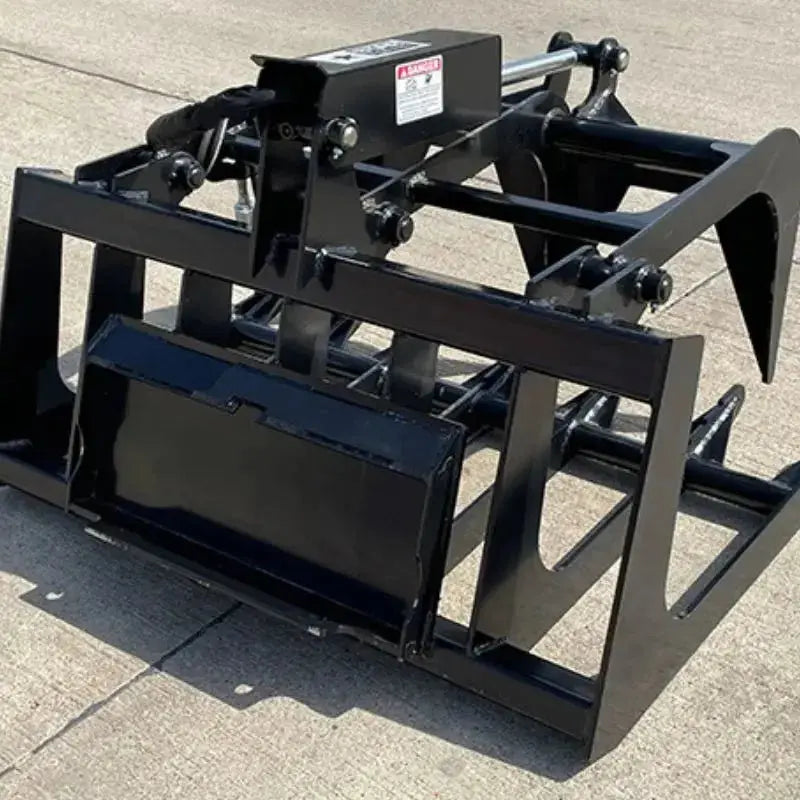

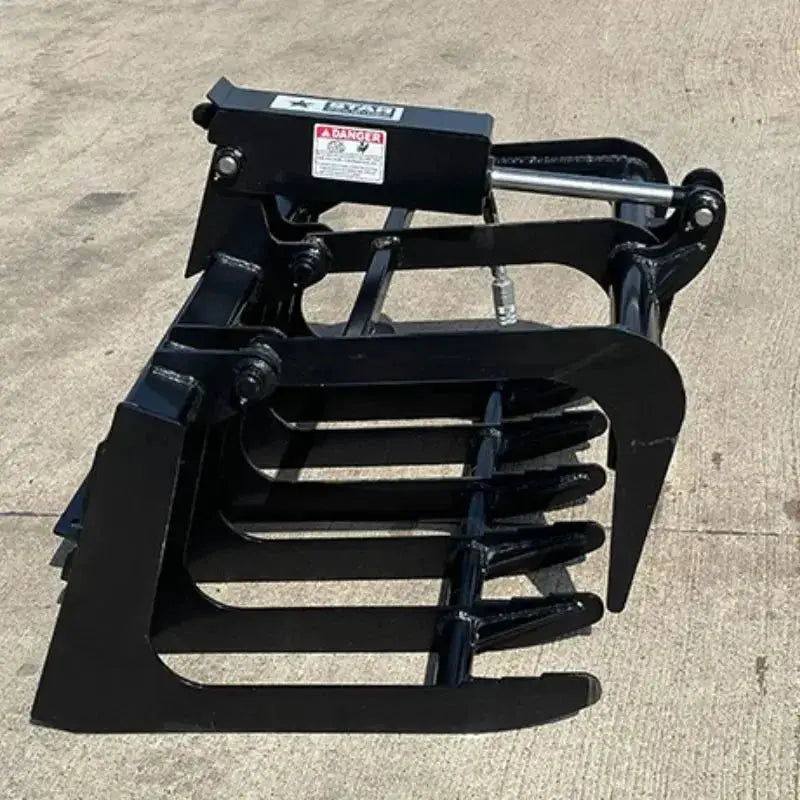

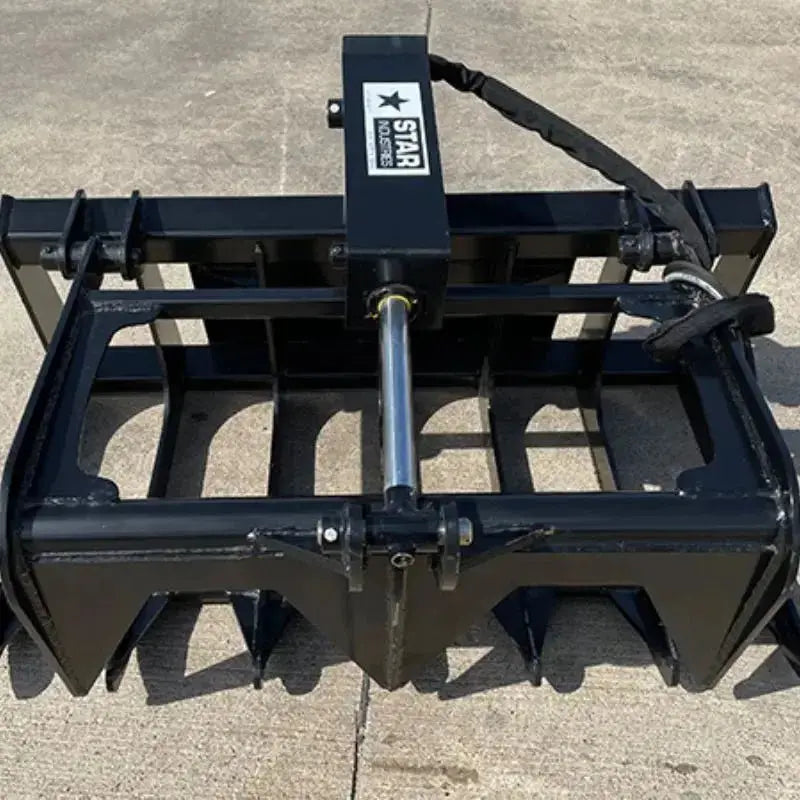

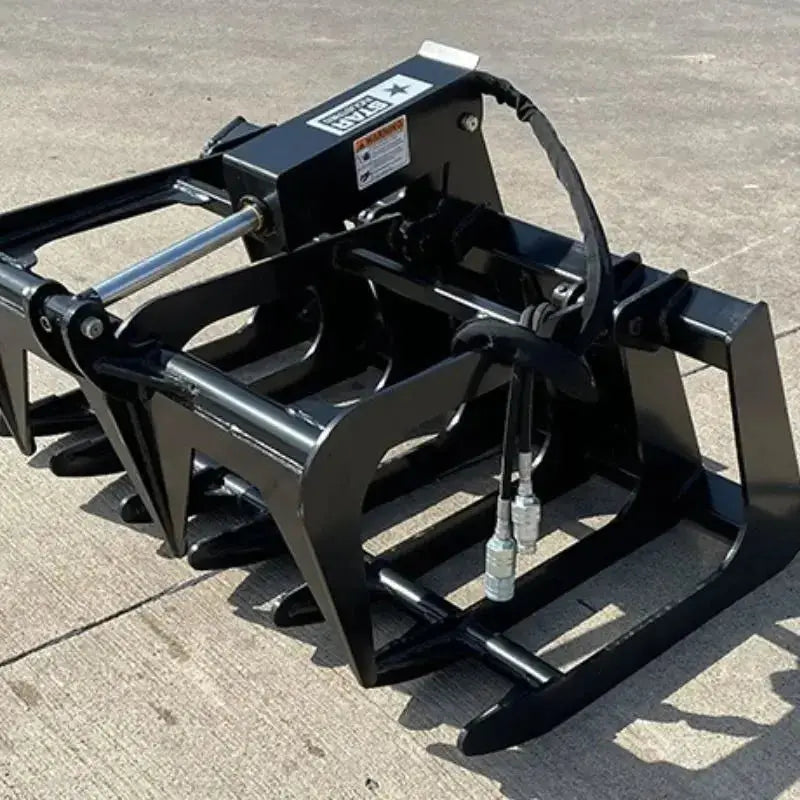

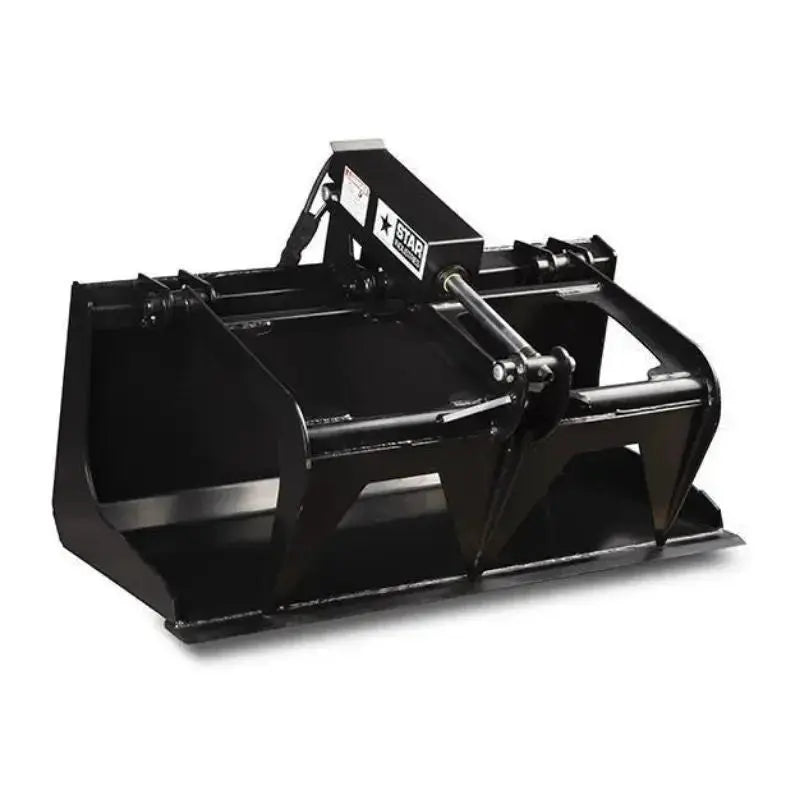

Star Industries Mini Grapple Buckets - Efficient Debris Handling

Star Industries presents the Mini Grapple Buckets designed to effortlessly move bulky and hard-to-handle materials such as logs and brush. These buckets come in two variations: the Grapple Bucket and the Root Grapple, both equipped to streamline debris cleanup by allowing dirt to sift out when loading trash and large rocks. The Grapple Bucket has a hard bottom to retain all materials within the bucket, ensuring a clean and efficient operation.

Mini Grapple Bucket Specifications:

• Model: 175-MI-44
• Fits: Dingo, Ditchwitch, Vermeer, Boxer, and Ramrod
• Empty Weight: 263 lbs
• Measurements:
  • Width: 44” O.D.
  • Hyd. Cylinder: 2” Bore by 10” Stroke
  • Grapple Tines: 5/16” thick
  • Grapple Max Opening: 30”
  • Overall Depth: 35 ¾”
  • Overall Height: 27 ¾”
  • Bucket Height: 21”
  • Bucket Depth: 26 3/8”
  • Pivot Pins: 1” DIA: Grease fittings on all pivot points
  • Hyd. Hoses: Protective sleeves on all hydraulic lines
  • Hyd. Quick-Disconnects: Flat face couplers included

Root Grapple Specifications:

• Model: 175-MIBC-44
• Fits: Bobcat
• Empty Weight: 263 lbs
• Measurements:
  • Width: 44” O.D.
  • Hyd. Cylinder: 2” Bore by 10” Stroke
  • Grapple Tines: 5/16” thick
  • Grapple Max Opening: 30”
  • Overall Depth: 35 ½”
  • Overall Height: 26”
  • Bucket Height: 20”
  • Pivot Pins: 1” DIA: Grease fittings on all pivot points
  • Hyd. Hoses: Protective sleeves on all hydraulic lines
  • Hyd. Quick-Disconnects: Flat face couplers included

Efficiently handle and clean up debris with the versatile Star Industries Mini Grapple Buckets, designed for optimal performance on various mini loaders.
