Description:

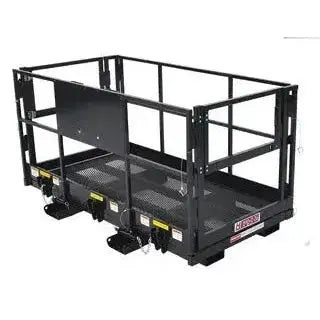

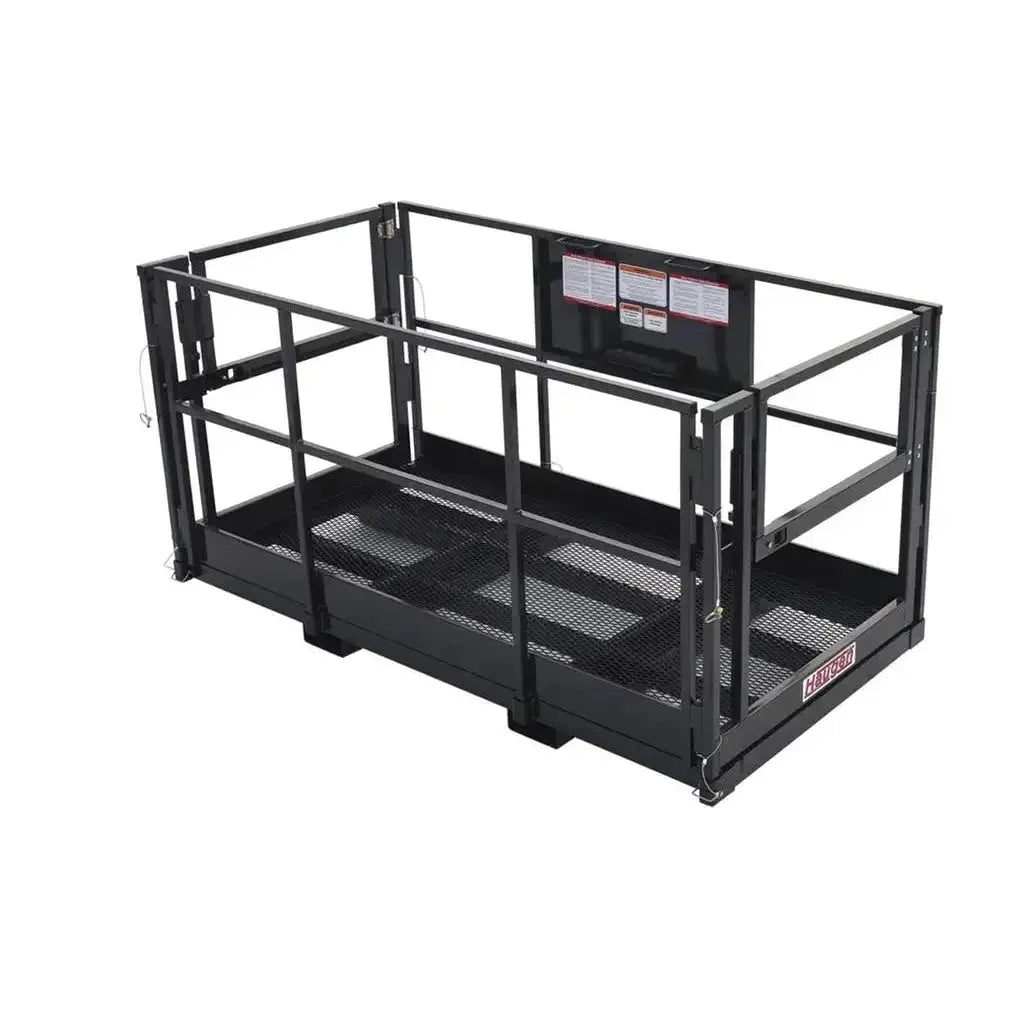

Haugen Industrial Work Platform: Reach New Heights with Safety and Compliance

Haugen's Industrial Work Platform is designed to elevate your company to new heights while ensuring safety and compliance with OSHA requirements. Built with precision and attention to safety standards, this American-Made Man Basket offers a dependable and secure solution for various elevated tasks. Haugen's commitment to compliance is evident through the active involvement of the owner in the OSHA committee, ensuring that each attachment meets or exceeds regulatory standards.

Key Features:

  • Easy Assembly and Disassembly: The platform is designed for easy assembly and disassembly without the need for tools, providing convenience and flexibility in various work environments.
  • Collapsible Sides: Collapsible railings allow for easy transportation and storage, enhancing the portability of the work platform.
  • Heavy-Duty Steel Mesh Floor: The heavy-duty meshed floor ensures durability and dependability, providing a sturdy platform for elevated tasks.
  • Spring-Loaded Doors: Spring-loaded doors are self-closing and latching, adding an extra layer of safety. The doors remain rigid and sturdy at all times.
  • Fork Pockets: Standard 2.75" by 7.75" fork pockets provide secure attachment to fork tines. Larger pockets are available upon request.
  • Heavy-Duty Fork Pins: Fork pins secure the platform to fork tines, ensuring stability and safety during operation.
  • Safety Restraint Tie Downs: Safety restraint tie-downs are included, providing a safe connection point for safety harnesses.
  • Transport Pockets: Transport pockets on the right side (except MWP 4x4) facilitate loading and unloading, enhancing convenience during transportation.
  • ANSI/OSHA and CSA Standards Compliance: The work platform meets and/or exceeds ANSI/OSHA B56.6-2016 and CSA B335-04 standards, ensuring regulatory compliance.
  • Safety Features: Safety pins for all side rails, attached with cables to prevent loss. Spring-loaded doors for added strength and rigidity. Safety restraint tie-down for secure connection of safety harnesses. Right-hand transport pockets for ease of transportation (loading and unloading only). Pins over fork tines, each chained to the platform, suitable for most Telehandlers.
  • Platform Options: Large pockets fit 3.50" x 9.50" forks. High back railing option with 60" height (required on Vertical Mast Forklifts).

Specifications:

  • MWP 4x4: 4'x4', 1 Door, 1,000 lbs. Capacity, 395 lbs. Weight
  • MWP 4x6: 4'x6', 1 Door, 1,000 lbs. Capacity, 487 lbs. Weight
  • MWP 4x8: 4'x8', 2 Doors, 1,000 lbs. Capacity, 578 lbs. Weight
  • MWP 4x116: 4'x9'8", 2 Doors, 1,000 lbs. Capacity, 630 lbs. Weight

Elevate your operations with Haugen's Industrial Work Platform, providing a safe and compliant solution for various applications.

Downloads:

Work Platform 2018

2018 Work Platform Operators Manual
