Hydraulic Breaker For Skid Steer | Blue Diamond

Hydraulic Breaker For Skid Steer | Blue Diamond

Regular price $8,332.99 USD
Taxes included. Shipping calculated at checkout.
Secure Checkout Secure Checkout
Authorized Dealer Authorized Dealer
Easy Returns Easy Returns
Free Shipping Free Shipping On Orders Over $5,000

Secure Payments

Apple Pay Google Pay Mastercard Discover Visa

Description:

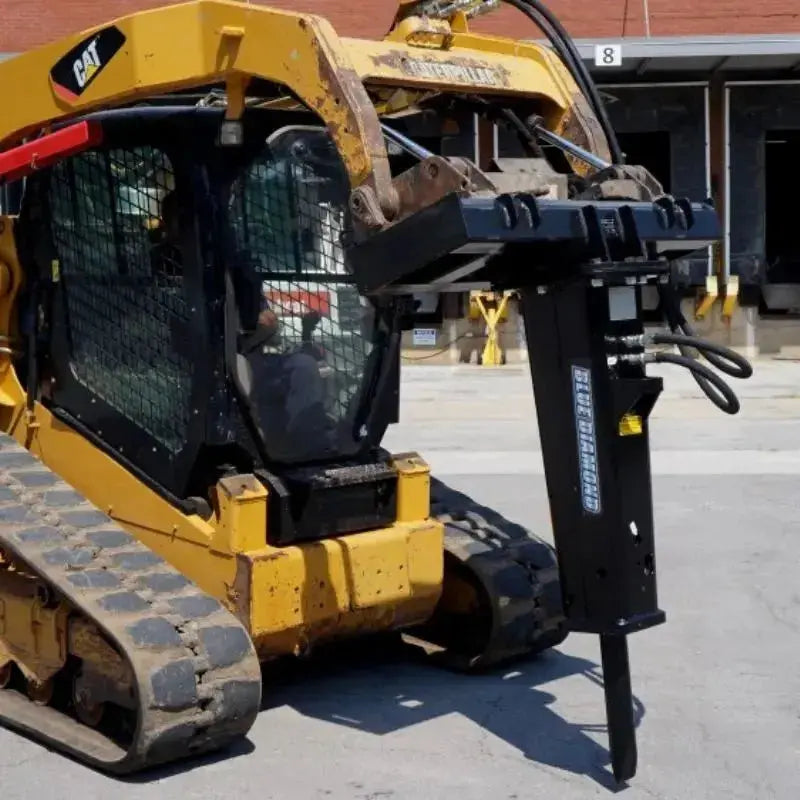

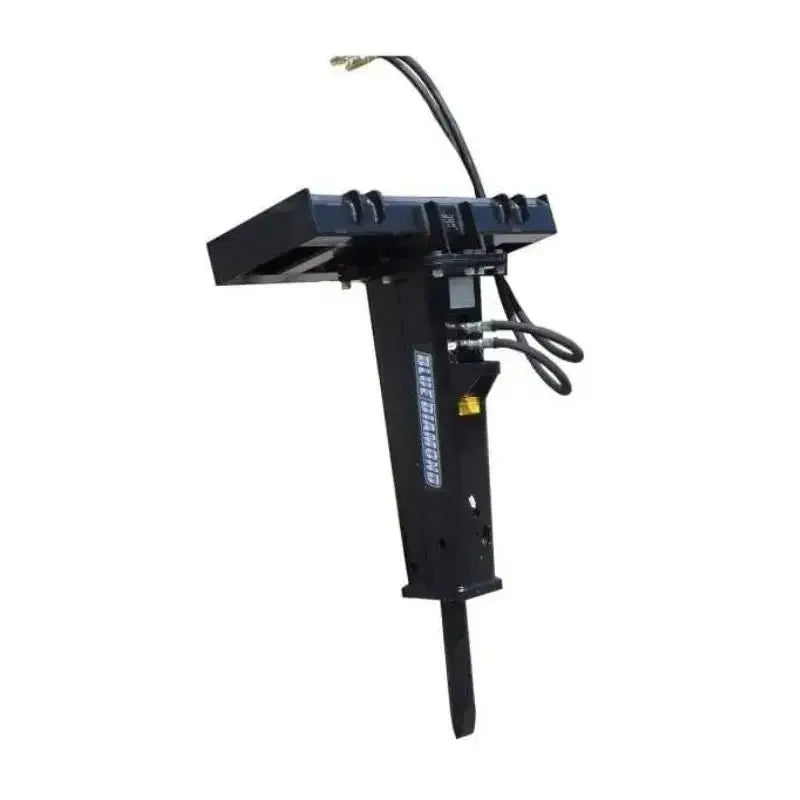

SKID STEER HYDRAULIC BREAKER - Unrivaled Power and Reliability

Experience unparalleled power and reliability with the Skid Steer Hydraulic Breaker by Blue Diamond. This breakthrough hydraulic breaker, developed over a 5-year journey, is now available in the market, setting new standards in demolition, construction, and quarry jobs. The hammer design embodies simplicity, cutting-edge technology, ease of setup, and robust service support, ensuring minimal downtime on your projects.

Key Features:

  • Total Supremacy: Designed for total supremacy, this hydraulic breaker delivers exceptional performance on the toughest tasks.

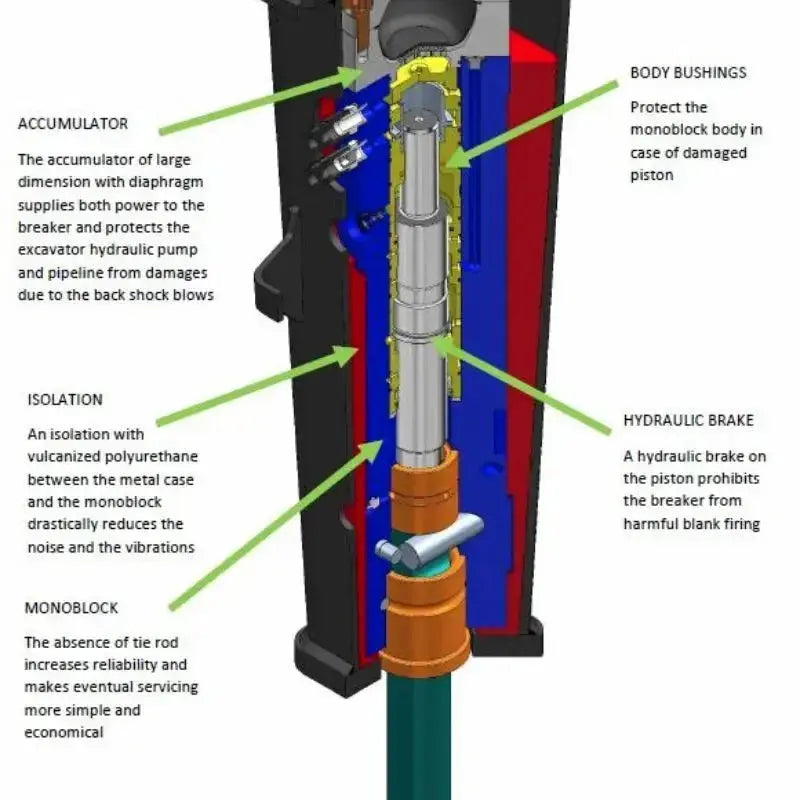

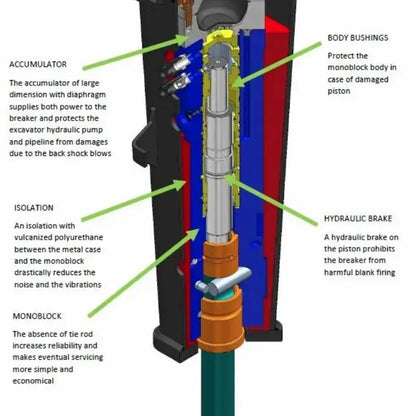

  • Innovative Design: Mono-block design with no tie rods, eliminating the risk of stretching and breaking associated with tie rods in other brands.
  • Anti-Blank Firing System: Equipped with an anti-blank firing system hydraulic brake, eliminating the need for regassing and ensuring efficient operation.
  • Minimal Moving Parts: Operates with only 2 internal moving parts, enhancing reliability and ease of maintenance.
  • Quiet Operation: Operates quietly, minimizing noise disruptions on the job site.
  • Variable Stroke Control: 2-speed control with variable stroke for optimized performance in diverse applications.
  • Self-Regulating: Self-regulating components ensure consistent and efficient operation.
  • Body Bushings: Features body bushings around the piston for added durability.

    Model Specifications:

    Model Working Pressure Required Oil Flow Frequency BPM Weight lbs Tool Diameter Energy Class
    HB165 1750 13 1200 370 2.2" 400
    HB210 1750 16 1100 463 2.5" 500
    HB300 1750 21.2 1100 661 2.9" 700

    Frequently Asked Questions (FAQ):

    • Monoblock Technology: Monoblock refers to a one-piece housing, eliminating the need for tie rods prone to stretching and breaking.
    • Flow and Pressure Adjustment: No adjustment is required if operating the breaker on the right-sized host machine, thanks to industry-leading technology components.
    • Sleeves in the Monoblock: Sleeves protect the Monoblock in the event of piston damage, offering a cost-effective and simple replacement.
    • Re-Gassing During Servicing: No re-gassing is needed; the energy recovery system keeps the accumulator from requiring top-ups.
    • Warranty Servicing: Regular servicing by a dealer is not required for warranty, except in the case of an oil leak. Simply grease it and use it to maintain the warranty.

      Elevate your demolition and construction projects with the Skid Steer Hydraulic Breaker - a symbol of power, reliability, and cutting-edge technology by Blue Diamond.


      View full details

      Frequently Asked Questions

      Find answers to common questions about our products and services

      Explore our wide selection of high-quality skid steer attachments designed for performance and durability. We partner with trusted manufacturers to provide reliable attachments for a variety of applications. Our knowledgeable team is here to help you find the right equipment for your machine and job requirements.

      Most modern full-size skid steer attachments are built with a universal quick attach system, allowing them to connect with nearly any brand of skid steer loader on the market. This standard design makes it easy to switch between attachments from different manufacturers.

      If your machine does not have a universal quick attach system, or if you are purchasing attachments for a tractor or another type of equipment, we can help. We offer quick attach adapters that allow your machine to safely connect to a wide range of attachments.

      Most modern skid steer loaders are equipped with auxiliary hydraulics that power attachments requiring hydraulic flow. These hydraulic lines typically connect to the machine through couplers located near the loader arms.

      The type and number of hydraulic couplers can vary depending on the machine. Attachments that require low hydraulic flow, such as standard brush cutters, typically use two half-inch couplers. Machines with high-flow capability may include additional couplers and a case drain line for more demanding attachments.

      When purchasing a hydraulic attachment, it is important to ensure that the attachment’s hydraulic requirements match your skid steer’s operating range. For example, grapples and backhoe attachments usually require low flow, while larger brush cutters and forestry attachments often require high-flow hydraulics.

      Some skid steer attachments use electrically actuated controls combined with hydraulic components. For example, certain grading blades use electrical switches in the cab to activate hydraulic valves that control features such as folding wings.

      If an attachment requires electrical controls, it is easiest when your skid steer is equipped with an external electrical harness. Since electrical harness systems can vary by manufacturer, we recommend contacting our team to confirm compatibility before ordering.

      If your skid steer does not have an external electrical harness, we can often provide a controller that connects to your machine’s 12-volt power source or battery. This allows you to operate attachments that require electrical controls safely and efficiently.

      Safety should always be a top priority when operating skid steer loader attachments. At Heavy Equip Tech, we often hear from customers who accidentally damage the glass door on their skid loader when using attachments such as forestry mulchers, brush cutters, or post drivers. This usually happens when the potential impact of debris on the machine’s cab is not fully considered before purchasing the attachment.

      When shopping for skid steer attachments, it is important to research the equipment thoroughly or consult with a customer support specialist to ensure proper compatibility and safe operation. Certain attachments that can throw rocks, wood debris, or other materials require additional safety precautions.

      How Does Shipping Work in the USA?

      At Heavy Equip Tech, we handle all shipping arrangements to make the process as simple as possible for our customers. Once you place an order, our team coordinates the shipping logistics and prepares your attachment for safe delivery.

      Most skid steer attachments are shipped using Less Than Truckload (LTL) freight, with typical transit times within the United States ranging from 2 to 10 business days, depending on your location. As soon as tracking information becomes available, we will provide it so you can monitor the progress of your shipment.

      International Shipping:

      At this time, we primarily ship within the United States. We are also able to ship to Canada, but we do not ship to other international locations.

      When you purchase a high-quality attachment from a trusted dealer like Heavy Equip Tech, you can expect reliable support both before and after your purchase. Our goal is to ensure that you have the resources and assistance needed to get the most out of your equipment.

      The attachments we offer are built with durable materials and quality workmanship, making them reliable for demanding applications. In addition, replacement parts are typically easier to source, and many of our attachments are backed by strong manufacturer warranties that provide added peace of mind.

      It’s also common for operators to have a short learning period as they become familiar with a new attachment. During this time and throughout the life of your equipment, our team is always available to provide guidance, answer questions, and help you operate your attachment safely and efficiently.

      At Heavy Equip Tech, we remain committed to supporting our customers long after the purchase is complete.

      Yes, financing options are available to help make purchasing new equipment easier and more manageable. Whether you are starting a new construction business, expanding an established operation, or purchasing your first skid steer attachment, HeavyEquipTech can help you find the right financing solution.

      HeavyEquipTech has partnered with APPROVE to provide customized financing options designed to fit your unique business needs. These flexible financing programs allow you to acquire the equipment you need while preserving your cash flow.

      At HeavyEquipTech, we understand the unique requirements of customers purchasing equipment for large businesses, municipalities, and government projects. Our team is experienced in supporting organizations that require dependable equipment and streamlined purchasing processes.

      We are committed to making the buying experience simple and efficient, ensuring that your equipment orders are handled smoothly from start to finish.

      When you purchase an attachment from HeavyEquipTech, you can expect reliable products backed by strong manufacturer warranties. We work with trusted manufacturers that stand behind the quality and durability of their equipment.

      Most skid steer attachments come with a one-year manufacturer warranty from the date of purchase. Certain components such as cutting edges, hydraulic cylinders, and piston motors may have different warranty periods depending on the manufacturer.

      If a warranty issue occurs, replacement parts are often shipped quickly—many times as soon as the next business day, depending on availability. Our team is always available to assist you with warranty support and help ensure your equipment stays up and running.
