FEATURES
- Choose from buckets widths of 60?, 66?, 72?, 78? and 84?
- 5 bucket profiles: low profile, dirt, utility, snow & light material, fertilizer and cotton seed
- Also available: Extreme Duty Skid-Steer Buckets
DESCRIPTION
Heavy Duty Bucket perfect for all types of applications

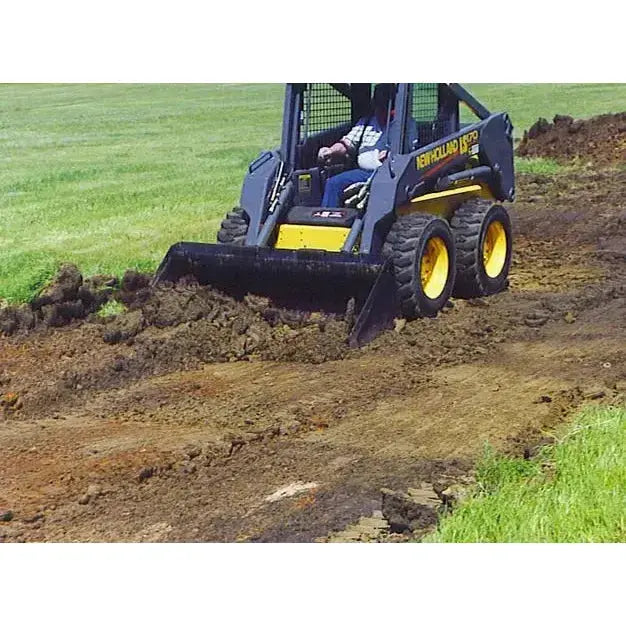

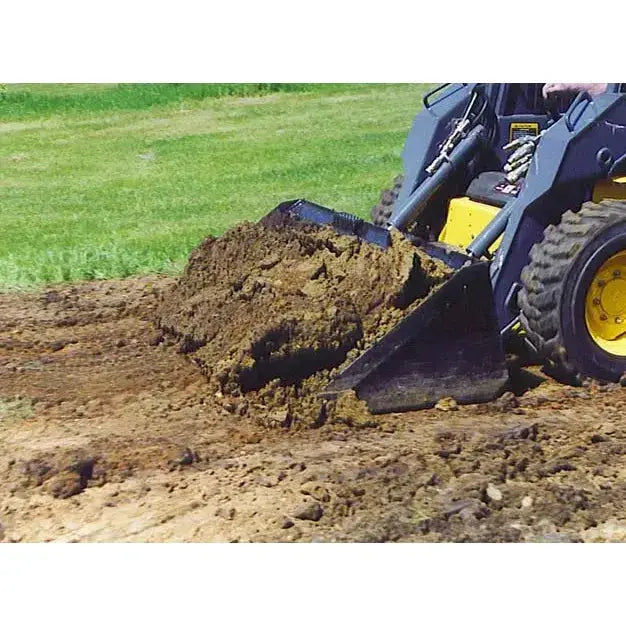

The Star Industry Heavy Duty Skid Steer Bucket is built to last. It’s constructed with extra heavy-duty steel, fully welded seams and reinforced hat section and side blades to strengthen and protect bucket sides. The bucket’s bottom is set close to the ground for level ‘back dragging’ (landscapers love it!).
-
Strong hat section: provides unyielding strength across the entire top of bucket.
-
Steel side blades: strengthens and protects bucket sides.
-
Seams Fully welded: continuous weld inside and outside of shell seams provides greater strength and longer life.
-

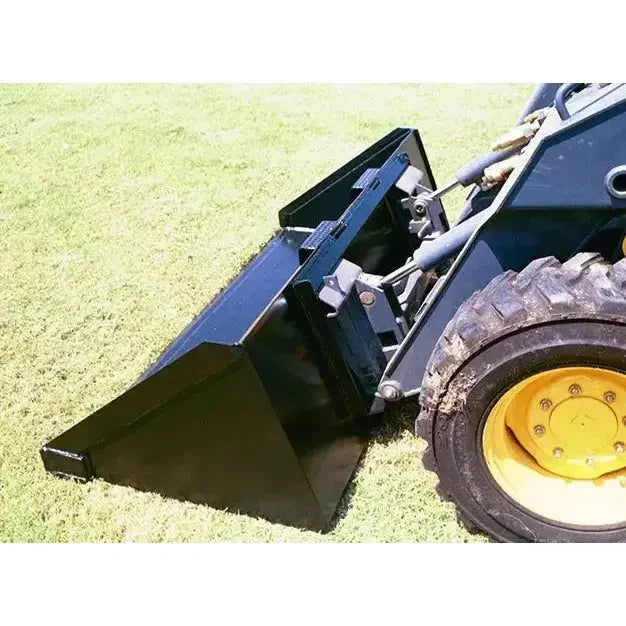

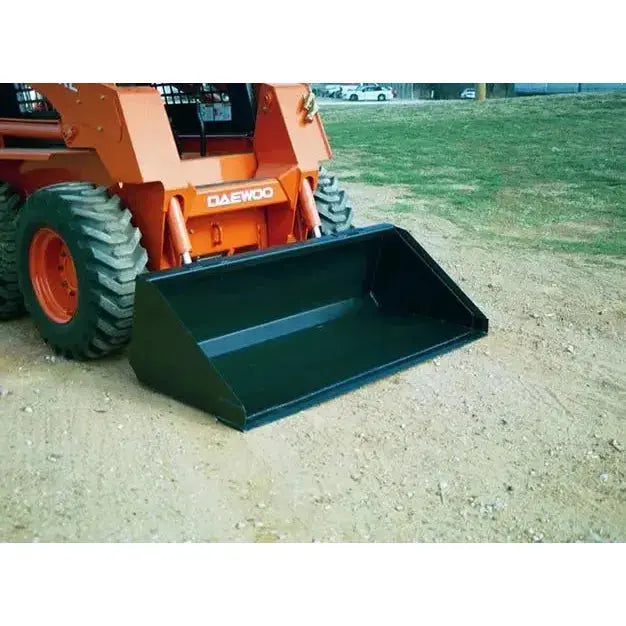

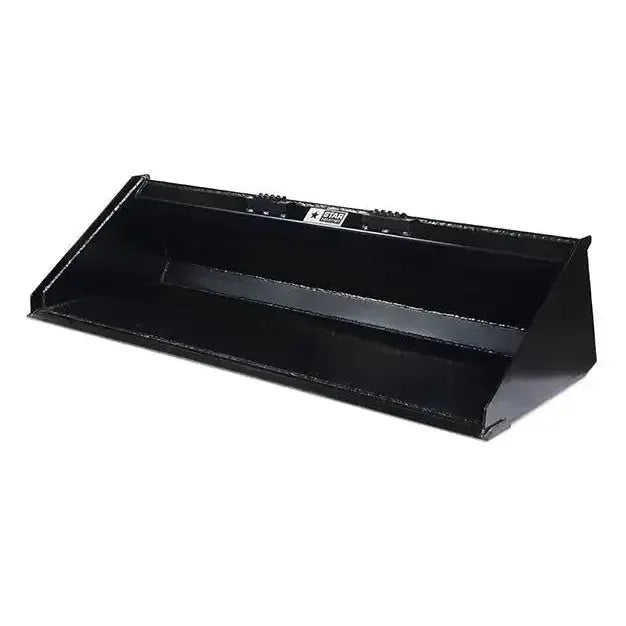

Low Profile design: operator can see the leading edge from the seat. Other profiles are also available.
-
Bevelled hard carbon steel punched blade: on leading edge ½” x 6” or ¾” x 6” depending on bucket width.
-
Buckets designed to fit each brand of loader: even though all new skid-steer loaders use a universal quick-tach they require different bucket profiles for proper operation. Star buckets are built to match your specific make & model of skid-steer loader.
-
Strong Universal Quick-Tach: constructed of 3/8” plate steel to stand up to the new more powerful skid-steer loaders.
-
Load Transfer Heavy (½” x 3”) scuff bars: three to five bars, depending on width, reinforce bucket bottom and protect from excessive wear.
- Integrated Safety Steps
- 5-year warranty - made in USA
Available options

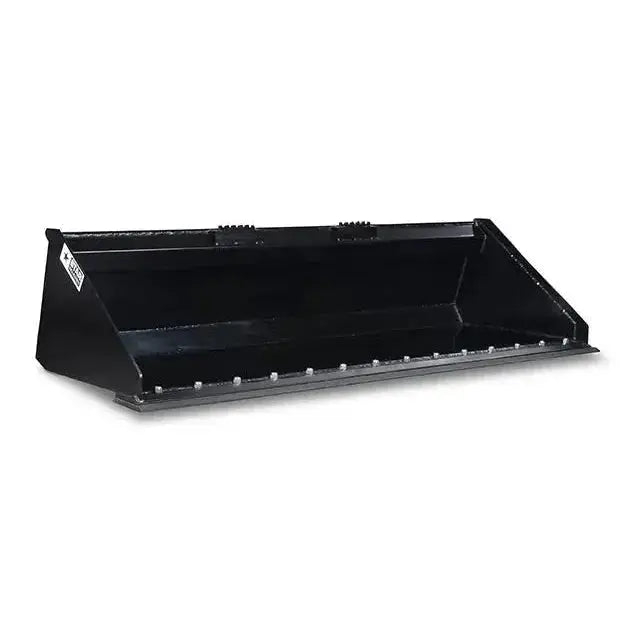

- Punched blade with bolt-on-blade: The reversible ?” x 8” bolt-on-blade gives 3 times the wear

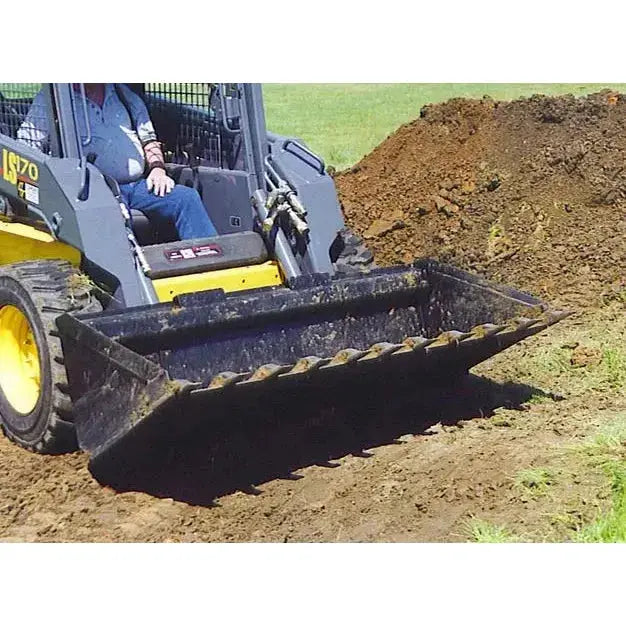

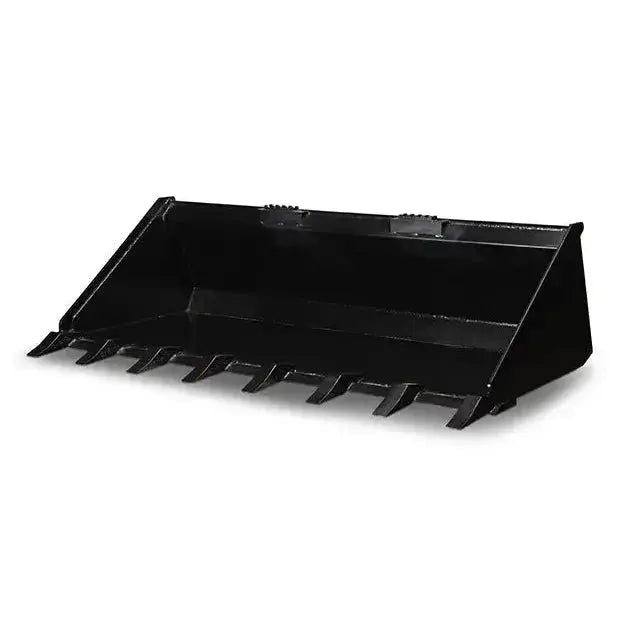

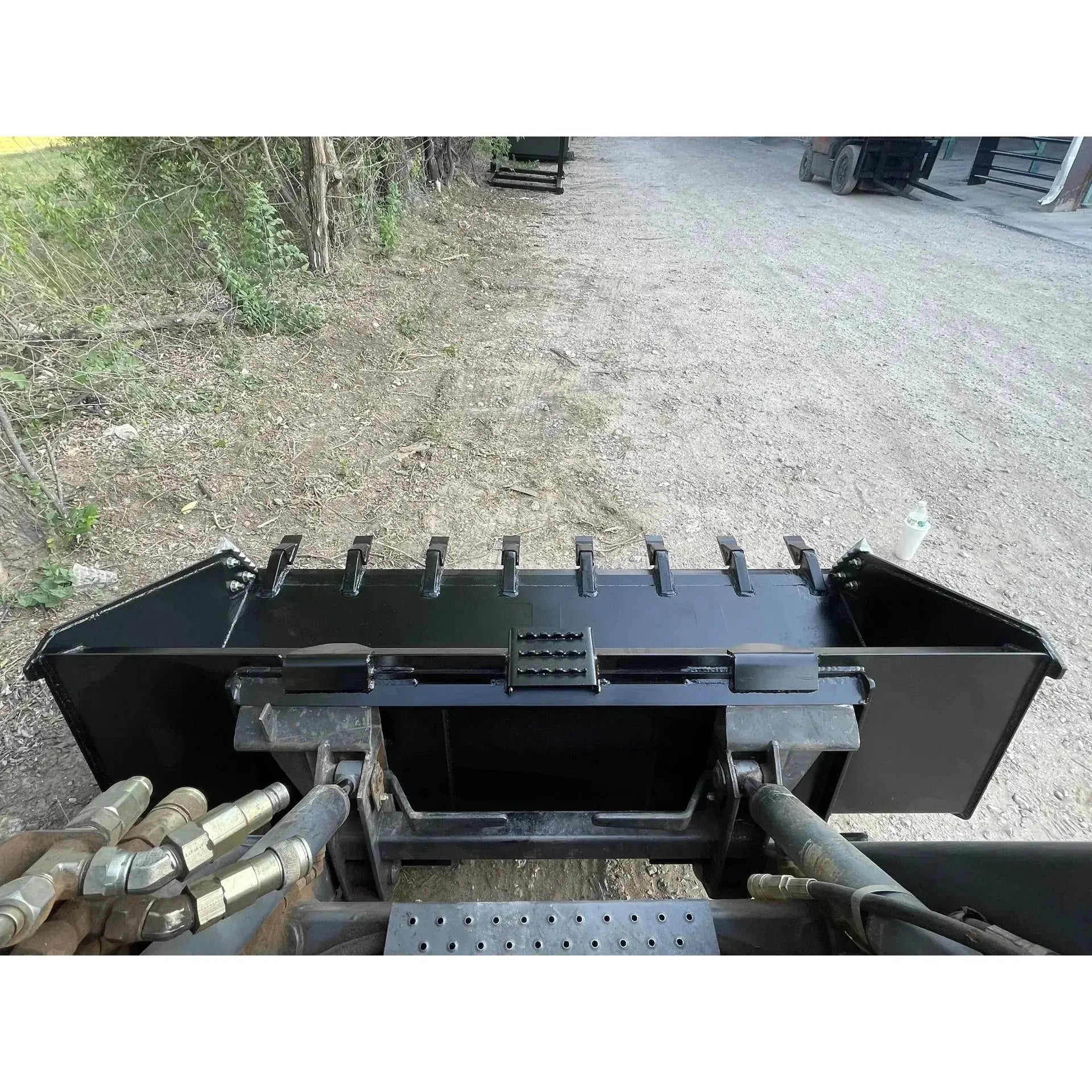

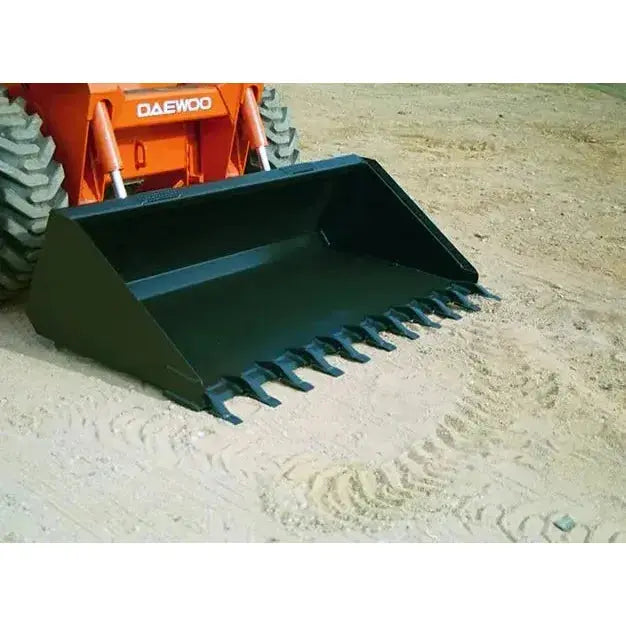

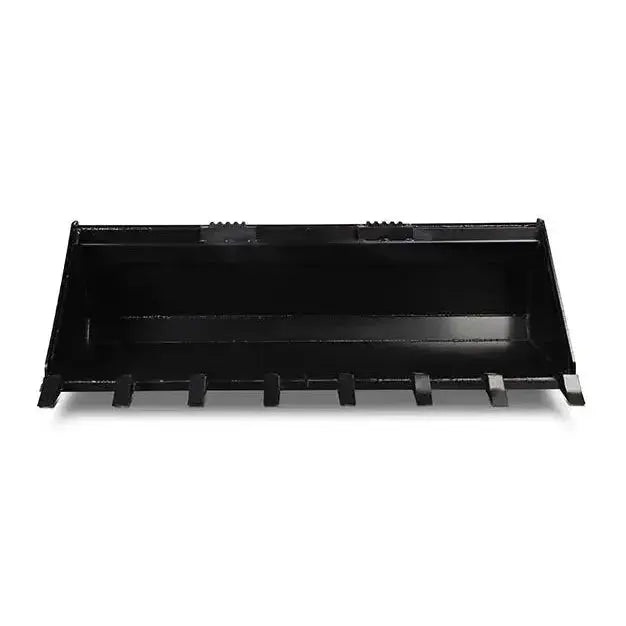

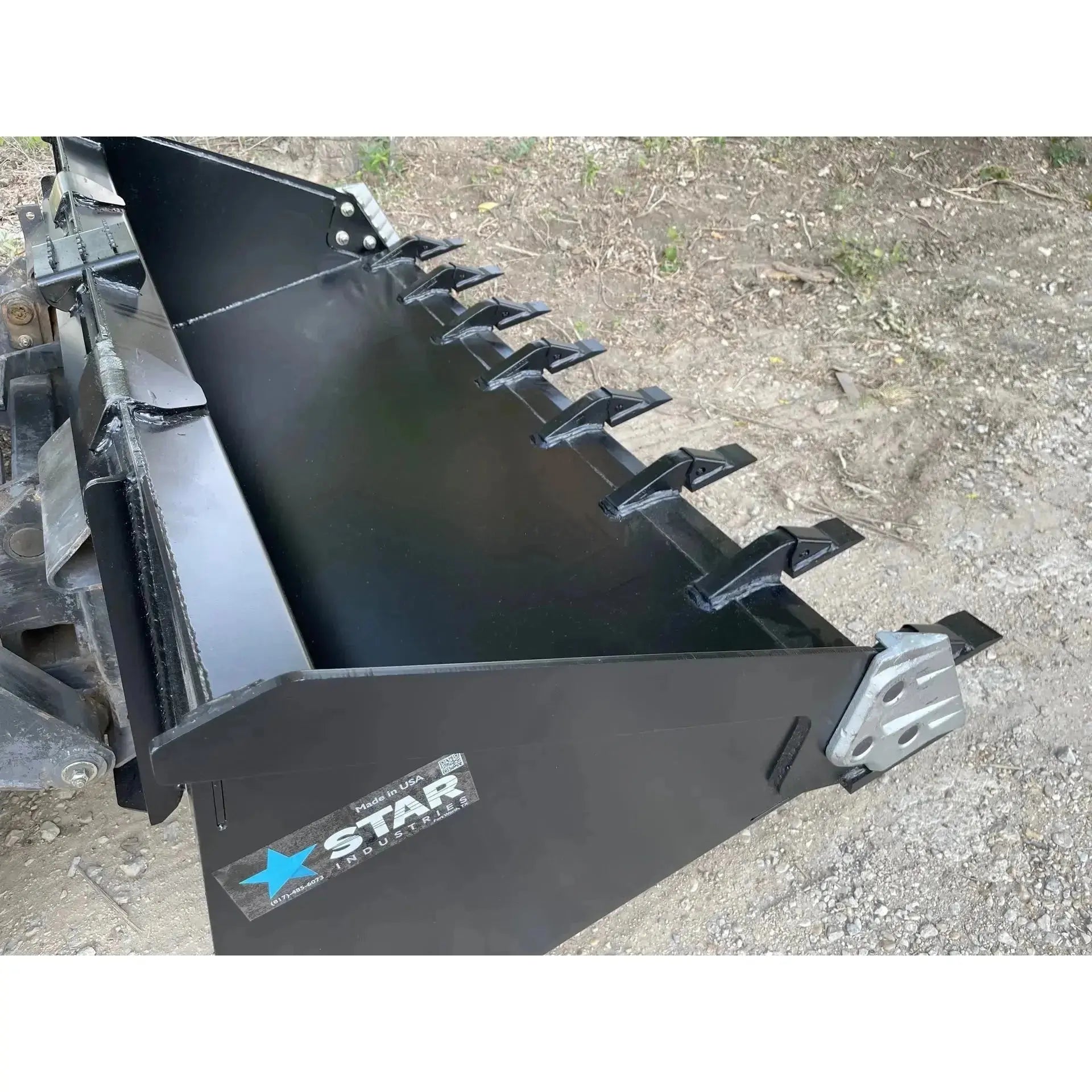

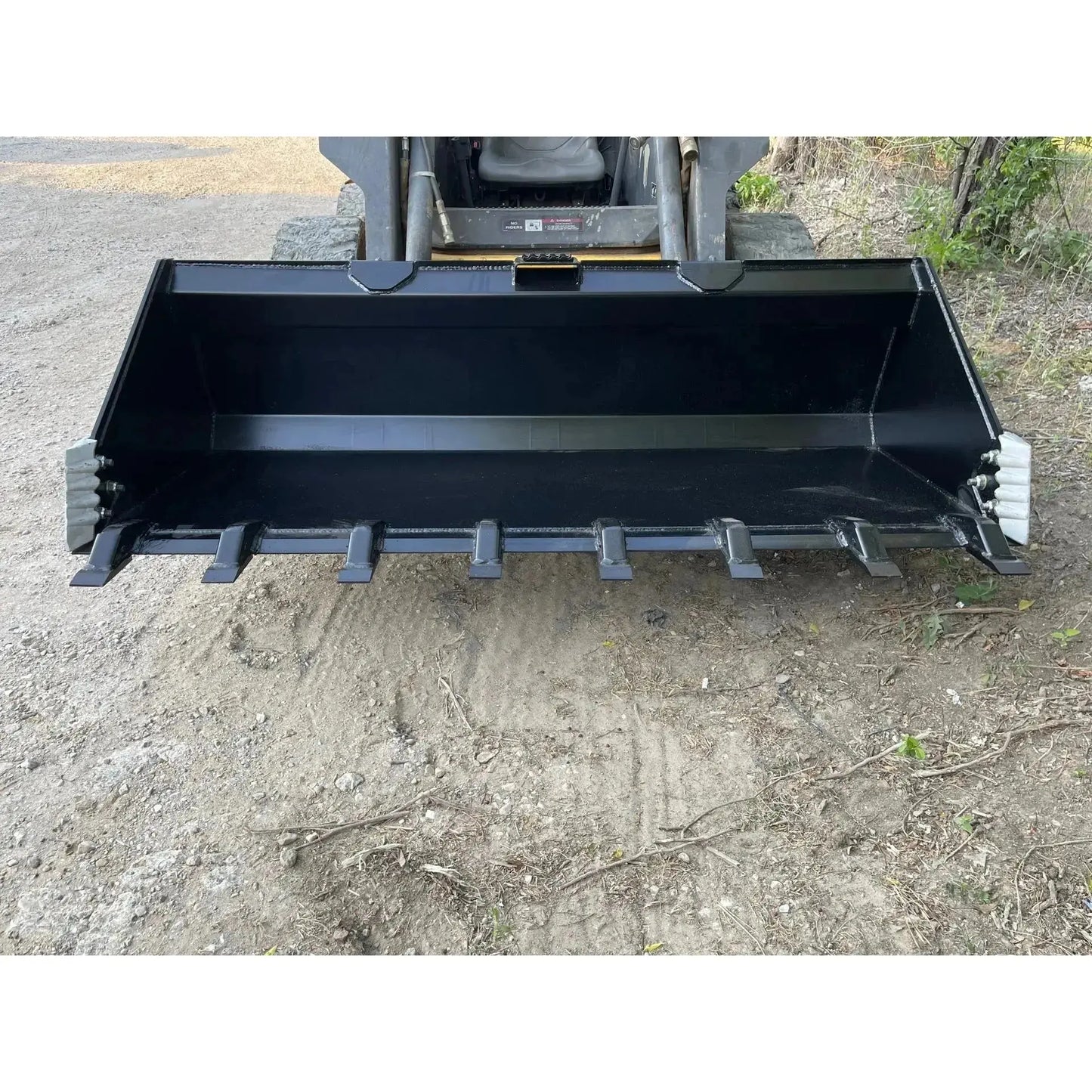

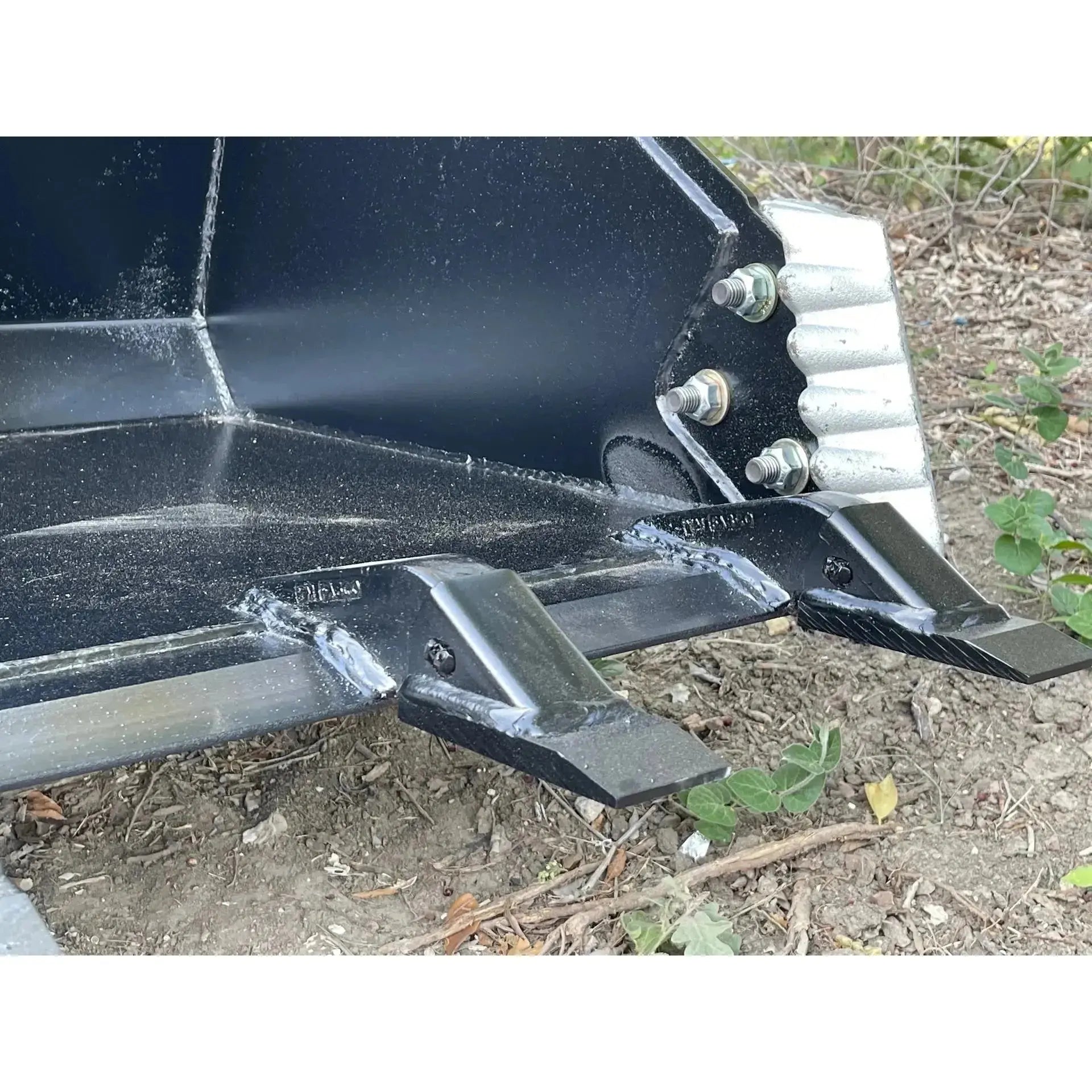

- Heavy-duty teeth: Features ‘pin-on’ series 23 teeth that measure 2¼ “across the point

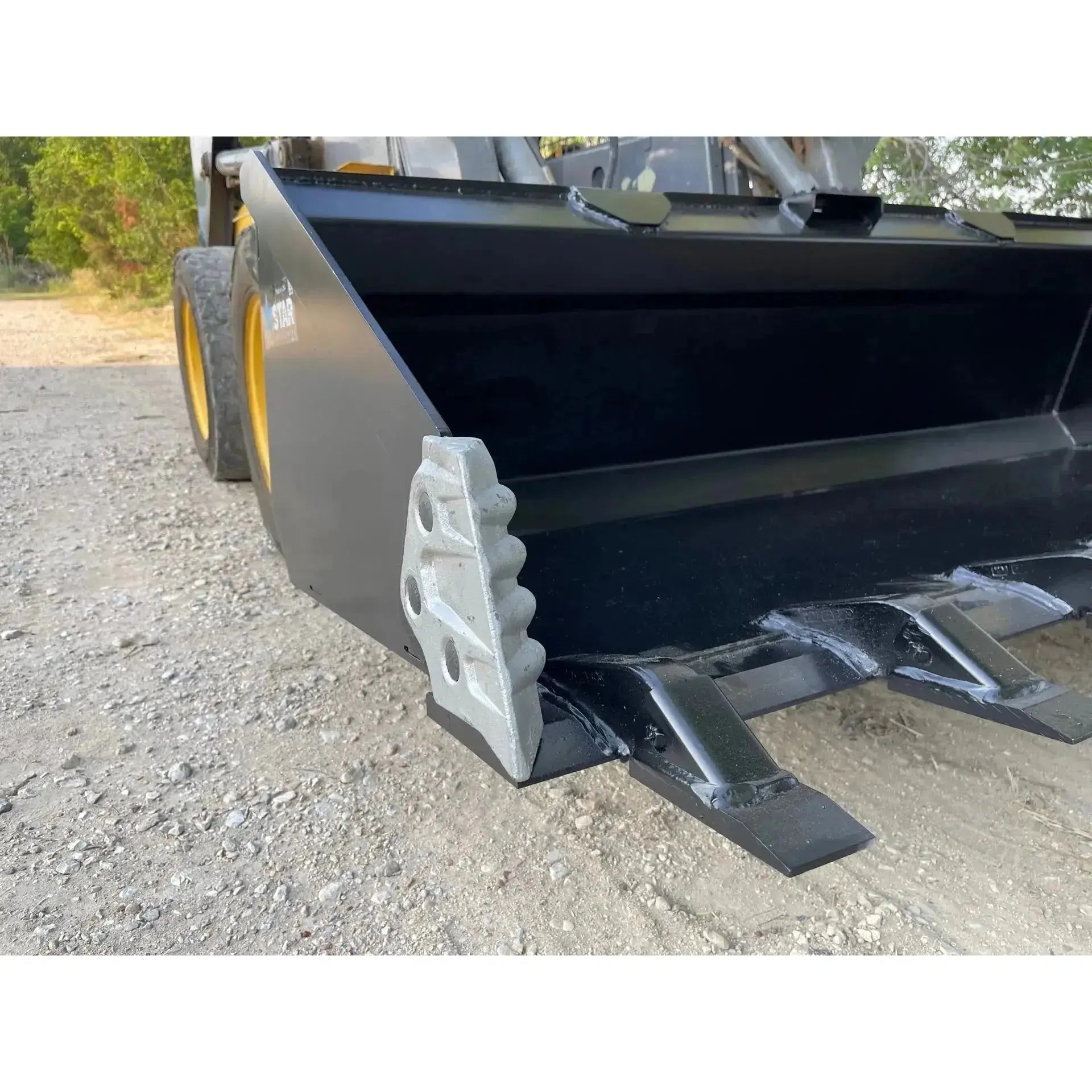

- Side Cutters: optional bolt-on
Operating manual/safety information available online and at 1-800-541-1797
Optional Bucket Profiles
SPECIFICATIONS
Heavy Duty Skid Steer Buckets
LOW PROFILE DIRT SKID-STEER BUCKETS |
Model No. |
Width ID inches |
Width OD inches |
Height OD inches |
Depth OD inches |
Capacity Heaped |
Weight |
LP22A-60 |
60” |
62 ?” |
20 ¼” |
34” |
15.0 cuft. |
435 lbs. |
LP22A-66 |
66“ |
68 ?” |
20 ¼” |
34“ |
16.5 cuft. |
510 lbs. |
LP22A-72 |
72“ |
74 ?” |
20 ¼” |
34” |
18.0 cuft. |
560 lbs. |
LP22A-78 |
78“ |
80 ?” |
20 ¼” |
34“ |
19.6 cuft. |
565 lbs. |
LP22A-84 |
84“ |
86 ?” |
20 ¼” |
34” |
21.0 cuft. |
600 lbs. |
LOW PROFILE DIRT SKID-STEER BUCKETS with BOLT on BLADE |
Model No. |
Width ID inches |
Width OD inches |
Height OD inches |
Depth OD inches |
Capacity Heaped |
Weight |
LP22A-60BOB |
60” |
62 ?” |
20 ¼” |
34” |
15.0 cuft. |
516 lbs. |
LP22A-66BOB |
66“ |
68 ?” |
20 ¼” |
34“ |
16.5 cuft. |
600 lbs. |
LP22A-72BOB |
72“ |
74 ?” |
20 ¼” |
34” |
18.0 cuft. |
658 lbs. |
LP22A-78BOB |
78“ |
80 ?” |
20 ¼” |
34“ |
19.6 cuft. |
673 lbs. |
LP22A-84BOB |
84“ |
86 ?” |
20 ¼” |
34” |
21.0 cuft. |
715 lbs. |
LOW PROFILE DIRT SKID-STEER BUCKETS with TEETH |
Model No. |
Width ID inches |
Width OD inches |
Height OD inches |
Depth OD inches |
Capacity Heaped |
Weight |
LP22A-60T |
60” |
62 ?” |
20 ¼” |
34” |
15.0 cuft. |
479 lbs. |
LP22A-66T |
66“ |
68 ?” |
20 ¼” |
34“ |
16.5 cuft. |
560 lbs. |
LP22A-72T |
72“ |
74 ?” |
20 ¼” |
34” |
18.0 cuft. |
610 lbs. |
LP22A-78T |
78“ |
80 ?” |
20 ¼” |
34“ |
19.6 cuft. |
621 lbs. |
LP22A-84T |
84“ |
86 ?” |
20 ¼” |
34” |
21.0 cuft. |
662 lbs. |
