Galvanized Work Platform - Telehandler - Haugen Attachments

Description:

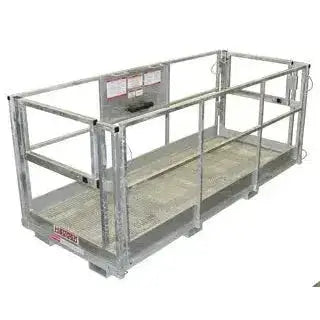

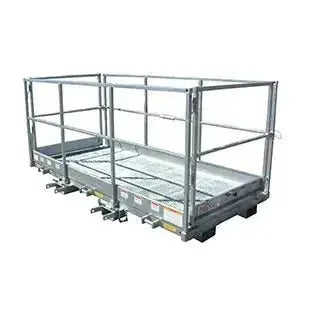

Haugen Galvanized Work Platform for Telehandlers: Elevate Safety and Efficiency

Haugen's Galvanized Work Platform, designed to fit telehandlers and forklifts, stands out as a robust and safe solution for various job site applications. This platform is meticulously crafted with quality steel in North Dakota, featuring a galvanized finish to prevent rust and ensure prolonged operational life. With a focus on safety, efficiency, and compliance with OSHA and CSA requirements, Haugen provides a top-notch work platform suitable for a range of tasks.

Key Features:

• Easy Assembly and Disassembly: Collapsible sides enable easy assembly and disassembly without the need for tools, ensuring efficient transportation and job site flexibility.

• Galvanized Finish: The steel is galvanized to eliminate rust, maintaining the platform's appearance and functionality for years.

Heavy-Duty Steel Mesh Floor:

• The heavy-duty mesh floor provides ample grip for safety during elevated tasks, ensuring a secure work area.

Safety Restraint Tie Downs:

• Standard safety restraint tie-downs are included, providing secure connection points for safety harnesses for all occupants.

Industrial Hinges and Latches:

• Industrial-grade hinges and latches are incorporated for strength and safety, enhancing the overall durability of the platform.

Spring-Loaded Doors:

• Spring-loaded doors are self-latching and self-closing, ensuring rigidity and sturdiness at all times.

Safety Pins:

• Premium safety pins are used to secure side railings, adding an extra layer of safety during operation.

ANSI/OSHA and CSA Standards Compliance:

• The platform meets and/or exceeds ANSI/OSHA B56.6-2016 and CSA B335-04 standards, emphasizing regulatory compliance.

Safety Features:

• Safety pins are standard for all doors and side rails, each attached with a cable to prevent loss.
• Door safety pins enhance door strength, ensuring rigidity at all times.
• Safety restraint tie-downs are standard, providing secure attachment points for safety harnesses.
• Optional end fork slots facilitate platform transportation during loading and unloading.
• Pins over fork tines, each chained to the platform, are suitable for most Telehandlers.

Platform Options:

• End fork slots for easy transportation (to be used for loading and unloading only).

Specifications:

• MWPG 4x4: 4x4, 1,000 lbs Capacity, 415 lbs Weight
• MWPG 4x6: 4x6, 1,000 lbs Capacity, 522 lbs Weight
• MWPG 4x8: 4x8, 1,000 lbs Capacity, 618 lbs Weight
• MWPG 4x116: 4x9'8", 1,000 lbs Capacity, 675 lbs Weight

Elevate safety and efficiency on your job site with Haugen's Galvanized Work Platform for Telehandlers—a quality solution made in the USA.

Downloads:

Galvanized Platform Brochure
