Fork Mounted Jib Boom - Star Industries 1360B

Description:

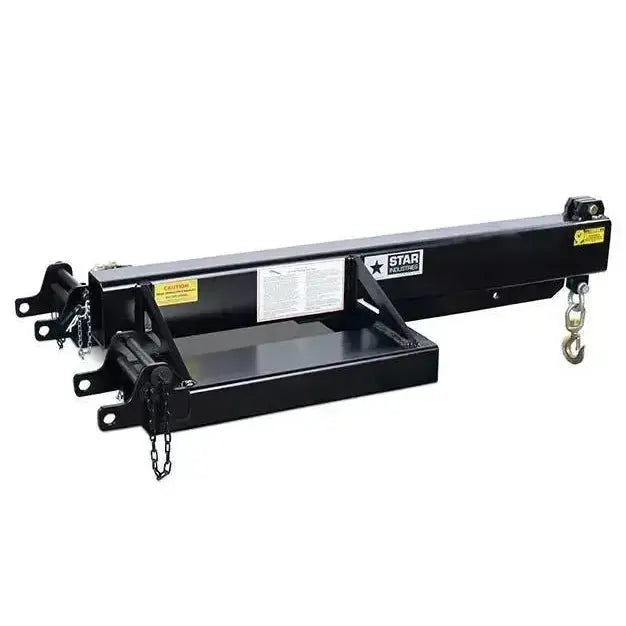

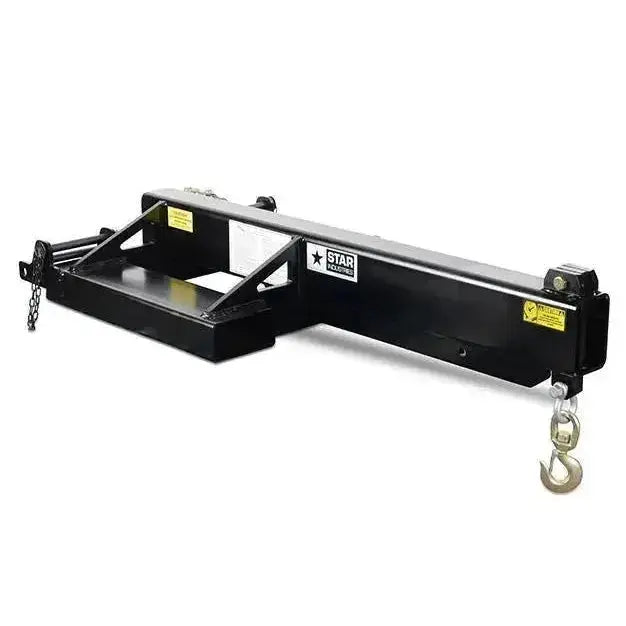

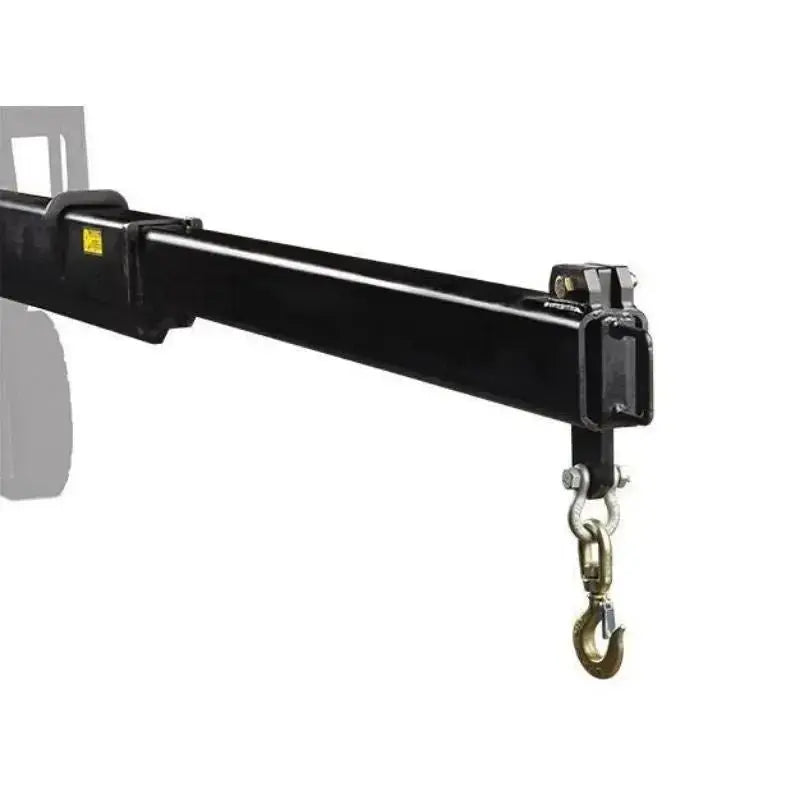

Fork Mounted Jib Boom by Star Industries

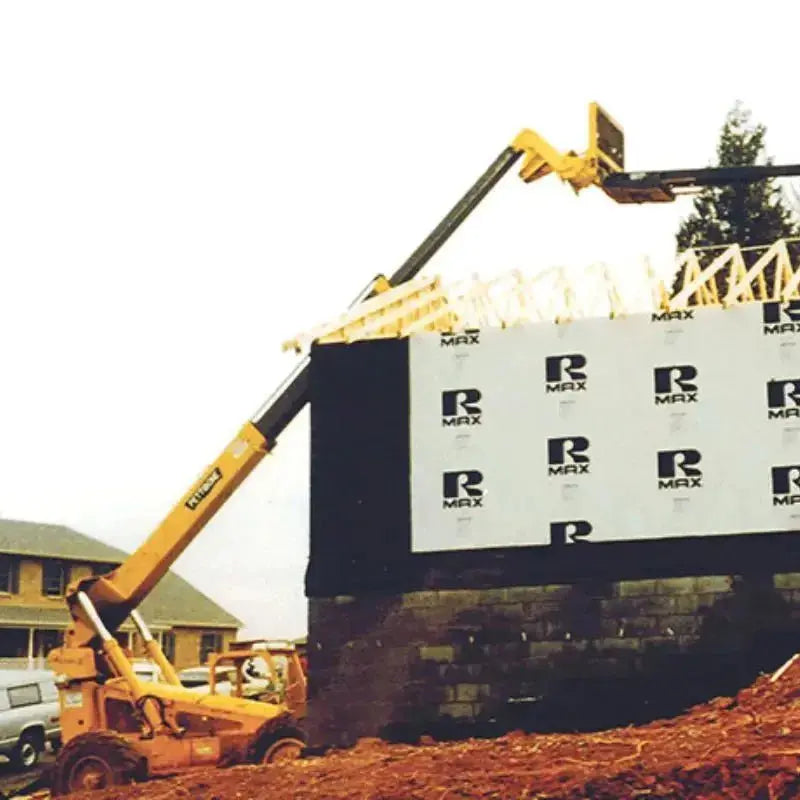

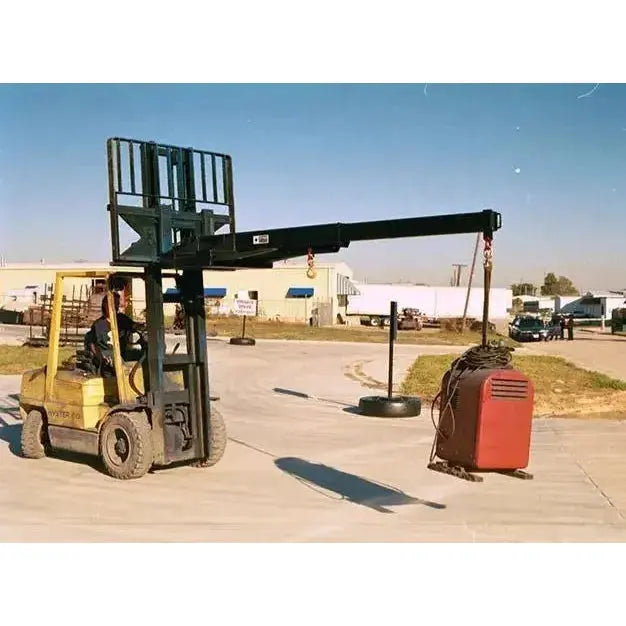

Star Industries presents the Fork Mounted Jib Boom, a heavy-duty solution designed to extend the reach of your forklift or Telehandler. This telescopic boom offers impressive reach, reaching up to a substantial 12 feet. It is an excellent choice for placing heavy loads over or under obstacles.

Key Features:

1. Telescopic Boom:

   • The boom telescopes with a pull spring-loaded pin.
   • The telescopic section can be locked in the desired position.
   • An internal stop prevents accidental overextension.

2. Secure Attachment:

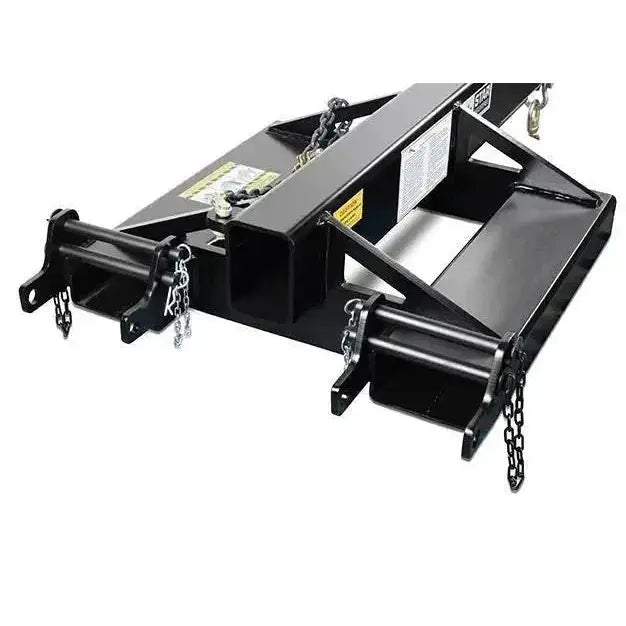

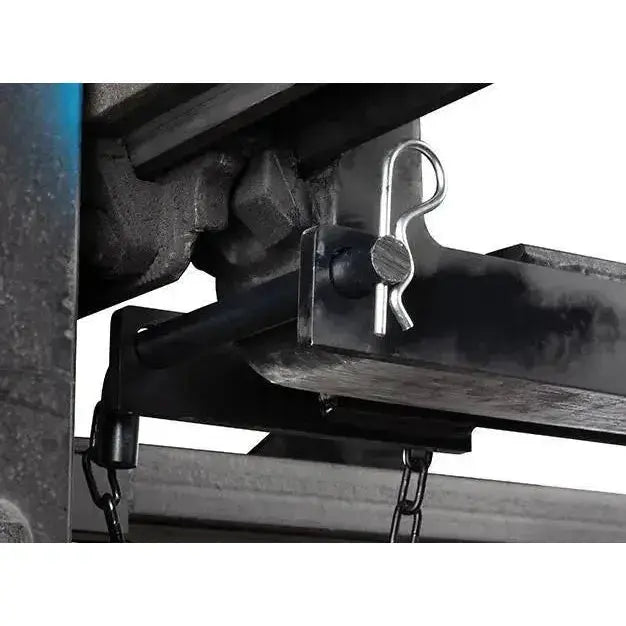

   • The jib slides on the forks and is pinned back at the heel for secure attachment to the forklift.
   • Universal fit design allows use on most forklifts.

3. Included Accessories:

   • One bolted shackle.
   • Swivel hook is included.

Model and Specifications:

• Model: 1360B
• Max Load Capacity: 6,000 lbs @ 4'
• Empty Weight: 585 lbs
• Extension Range: 7’ 0” to 12’ 0”

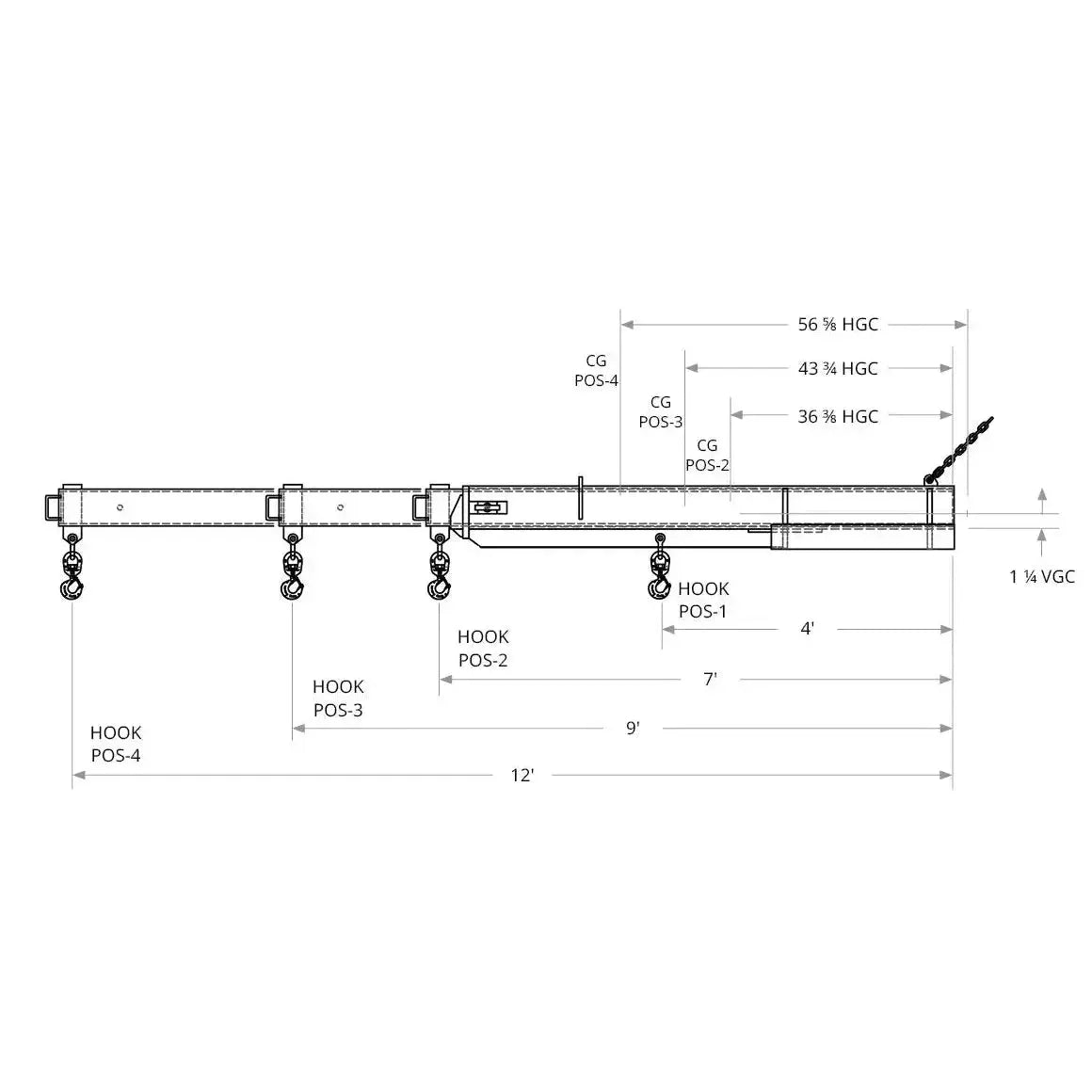

• Vertical Center of Gravity:
  • Centerline
• Horizontal Center of Gravity:
  • Fully retracted: 36 5/16″
• Extended midway: 43 ¾”

• • Fully extended: 54 7/16″
• Hook Positions:
  • 4 positions (12′ 0″, 9′ 0″, 7′ 0″, 4′ 0″)
• Maximum Load on a Single Hook:
  • Position 1: 6,000 lbs
  • Position 2: 4,000 lbs
  • Position 3: 3,000 lbs
  • Position 4: 2,000 lbs

Fixed Length JIB Options:

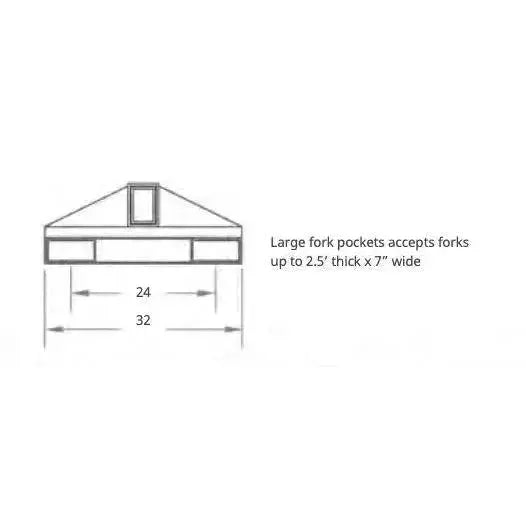

• Fork Pocket Size: 30″ long x 7½” x 3½” ID
• Center to Center of Fork Pockets: 24″ (Pocket Ends are open.)
• Additional Models:
  • 1360B-5FXL: 6,000 lbs capacity, 5′ (ft) reach
  • 1360B-6FXL: 5,000 lbs capacity, 6′ (ft) reach
  • 1360B-7FXL: 4,000 lbs capacity, 7′ (ft) reach

Enhance your forklift's capabilities with Star Industries' Fork Mounted Jib Boom. This versatile attachment offers flexibility and reach, making it a valuable addition for lifting and placing heavy loads. "Extend the reach of your forklift with Star Industries."

Downloads:

• Jib Boom Product Sheet
• 1360B - Dealer Drawing
• Jib Boom - Manual
