Description:

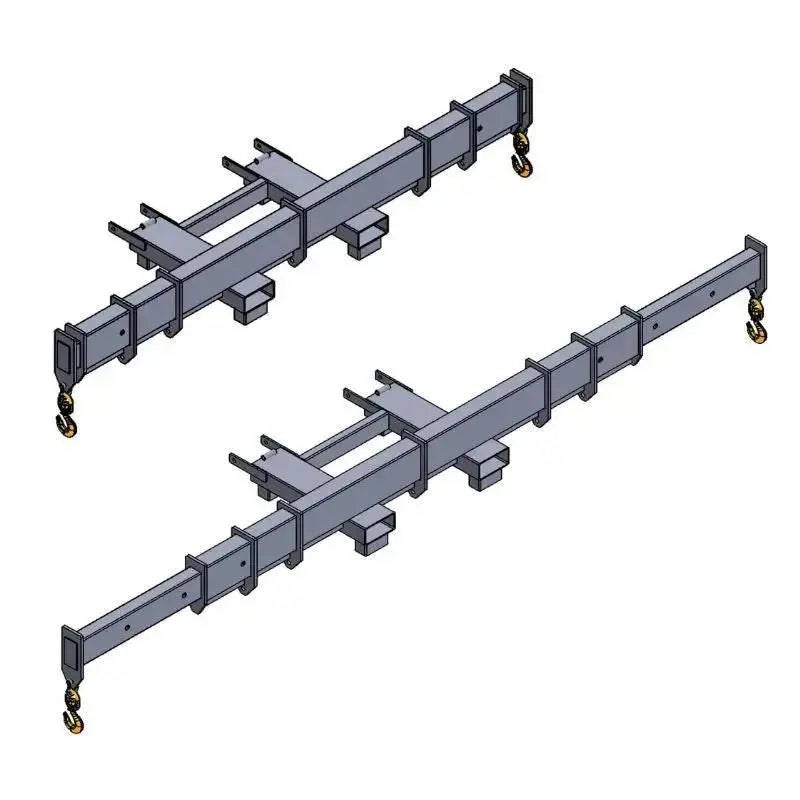

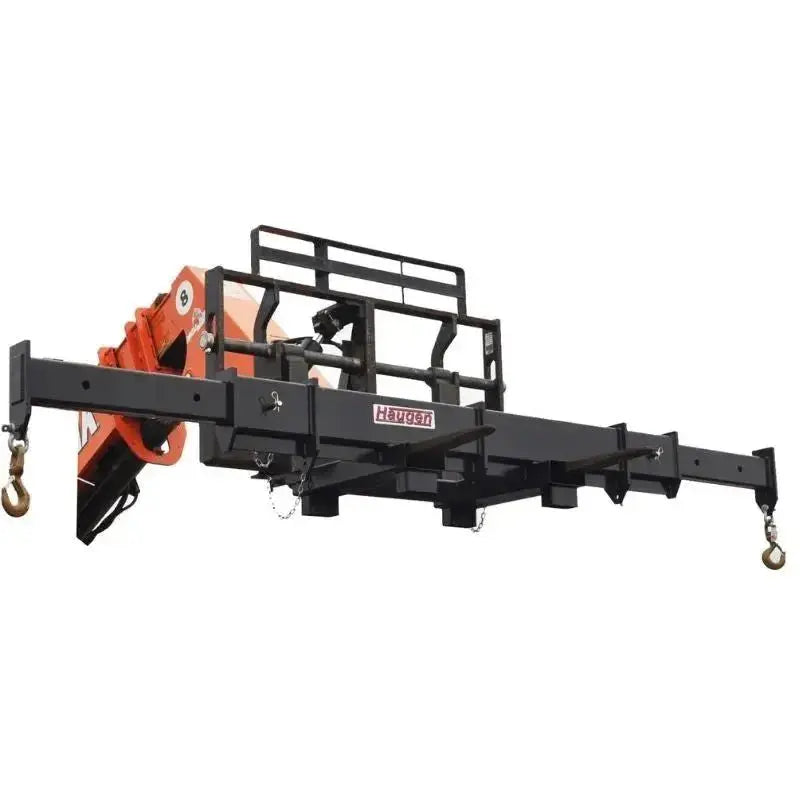

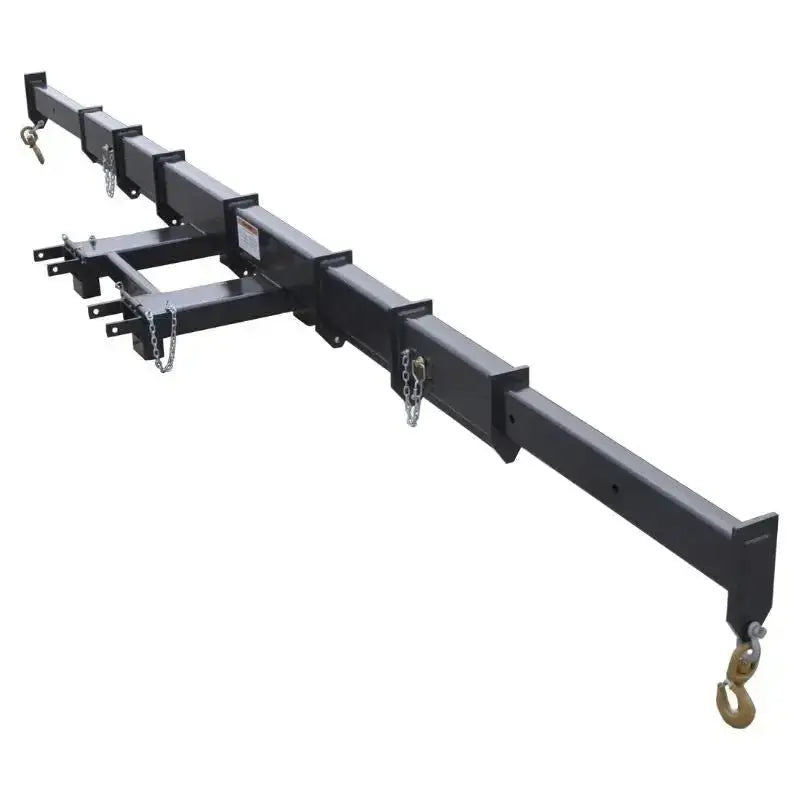

Haugen Fork-Mounted Adjustable Spreader Bar: Unmatched Versatility in Lifting Solutions

Haugen's Fork-Mounted Adjustable Spreader Bar stands as a pinnacle in lifting attachments, delivering exceptional versatility and robustness. This attachment is tailored for forklifts and Telehandlers, engineered with heavy-gauge steel and industrial hydraulic cylinders to handle heavy and awkward loads with ease. Safety and reliability are at the forefront of its design, ensuring dependable performance for a wide range of lifting applications.

Key Features:

• Exceptional Lift Capacity: Lifts loads with a remarkable capacity of up to 10,000 pounds, making it a robust solution for various lifting challenges.
• Fork Pocket Specifications: Fork pockets are designed to fit tines up to 3.5” by 7.5”, securely held in place with safety pins for added stability.

Adjustable Spread Sizes:

• Available in different sizes to cater to specific lifting needs, offering options in 8'-12', 10'-15', and 13’-20'.

Swivel Hooks for Secure Handling:

• Equipped with two 5-ton swivel hooks, ensuring a secure grip on the load during lifting operations.

Center Position and Point Load Precision:

• The center position accommodates single-point loads, with point loads varying based on the spread position for enhanced flexibility.

Strategic Fork Pocket Placement:

• Fork pockets strategically hold the spreader bar at 24" on center, contributing to increased stability during lifting.

Safety Pin Assurance:

• Securely attached to fork tines with safety pins, providing an additional layer of safety throughout the lifting process.

Durable Powder-Coated Finish:

• Entirely coated with a rust-resistant powder finish, ensuring durability and longevity in challenging conditions.

Proudly American-Made:

• Manufactured in the USA, reflecting a commitment to quality, safety, and supporting local craftsmanship.

1-Year Warranty for Confidence:

• Backed by a 1-year warranty, assuring the attachment's quality, durability, and performance.

Specifications for Each Model:

MASPR 812:

• Spread: 8'-12'
• Lifting Capacity: 10,000 lbs
• Weight: 580 lbs
• Center Position - Single Point Load: 10,000 LBS
• Point Loads @ 65.375" spread position: 5000 x 2 = 10,000 LBS
• Point Loads @ 97.88" spread position: 4000 x 2 = 8,000 LBS
• Point Loads @ 121.88" spread position: 3500 x 2 = 7,000 LBS
• Point Loads @ 145.88" spread position: 3000 x 2 = 6,000 LBS

MASPR 1015:

• Spread: 10'-15'
• Lifting Capacity: 10,000 lbs
• Weight: 685 lbs
• Center Position - Single Point Load: 10,000 LBS
• Point Loads @ 65.375" spread position: 5000 x 2 = 10,000 LBS
• Point Loads @ 89.00" spread position: 5000 x 2 = 10,000 LBS
• Point Loads @ 120.00" spread position: 4000 x 2 = 8,000 LBS
• Point Loads @ 150.00" spread position: 3500 x 2 = 7,000 LBS
• Point Loads @ 180.00" spread position: 3000 x 2 = 6,000 LBS

MASPR 1320:

• Spread: 13'-20'
• Lifting Capacity: 10,000 lbs
• Weight: 875 lbs
• Center Position - Single Point Load: 10,000 LBS
• Point Loads @ 65.375" spread position: 5000 x 2 = 10,000 LBS
• Point Loads @ 110.00" spread position: 4000 x 2 = 8,000 LBS
• Point Loads @ 162.00" spread position: 3500 x 2 = 7,000 LBS
• Point Loads @ 201.00" spread position: 3000 x 2 = 6,000 LBS
• Point Loads @ 240.00" spread position: 2250 x 2 = 4,500 LBS

Choose the Haugen Fork-Mounted Adjustable Spreader Bar for unparalleled lifting capabilities, safety assurance, and durable construction. With a range of sizes and features, this American-made attachment is your go-to solution for efficient and reliable lifting operations.
