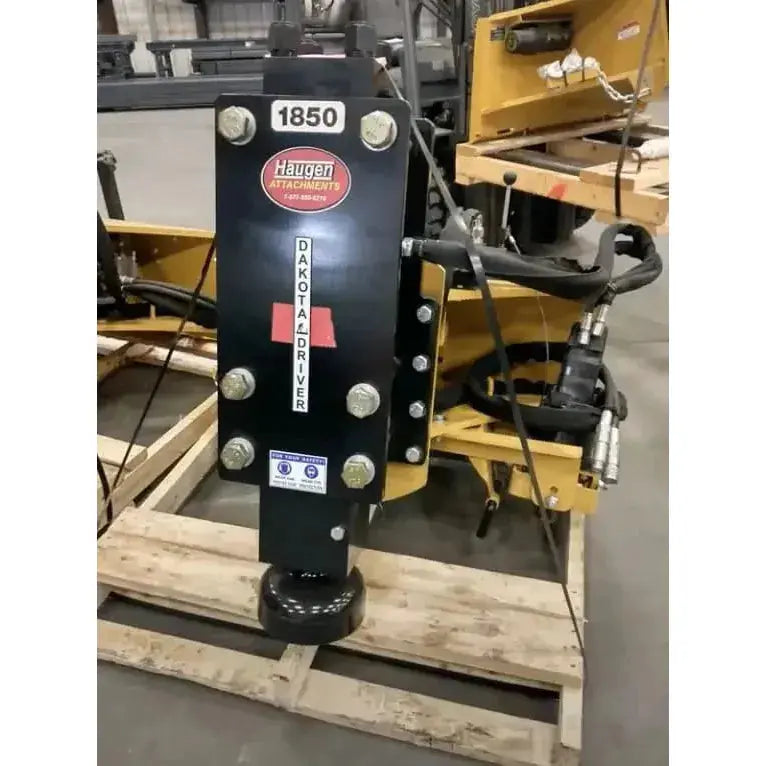

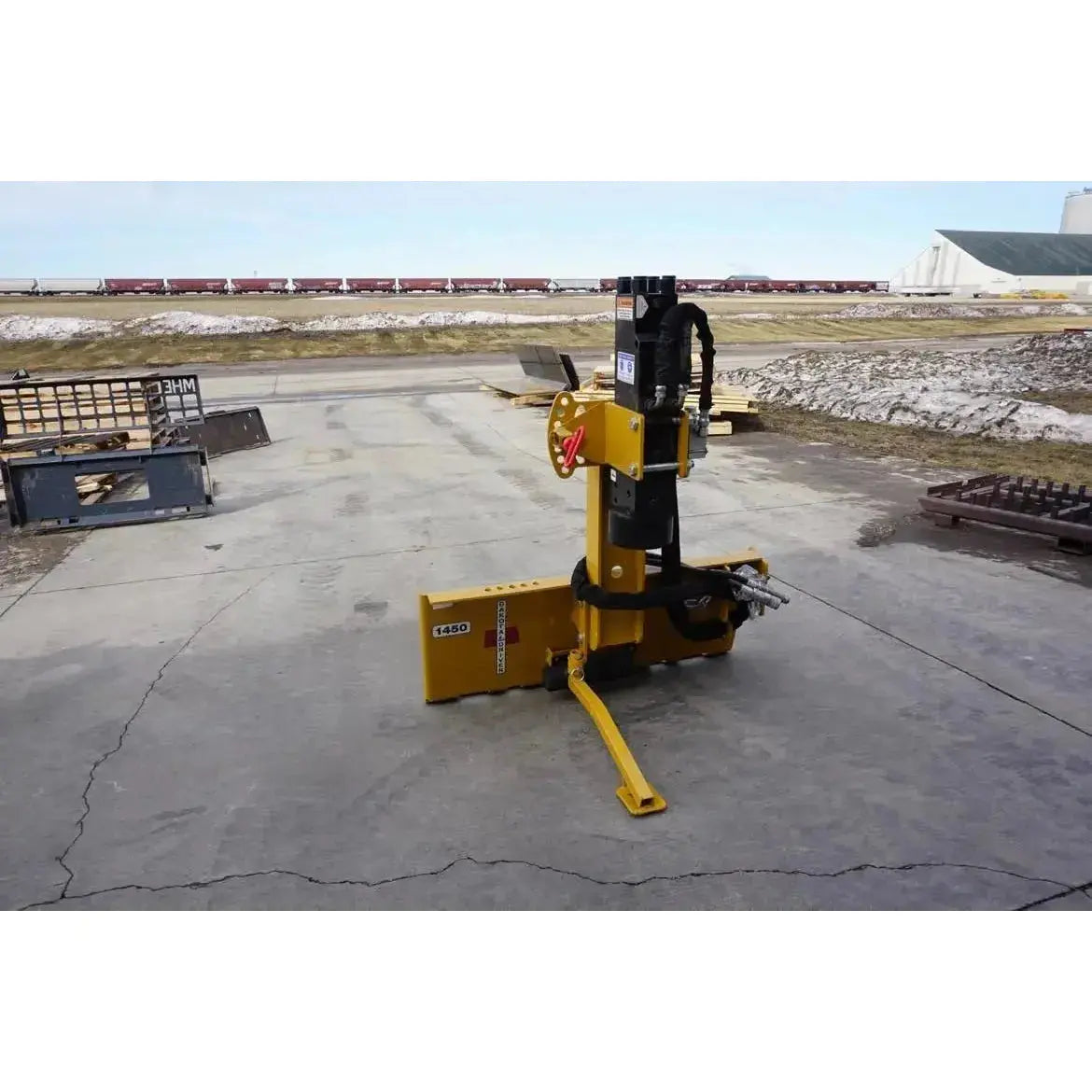

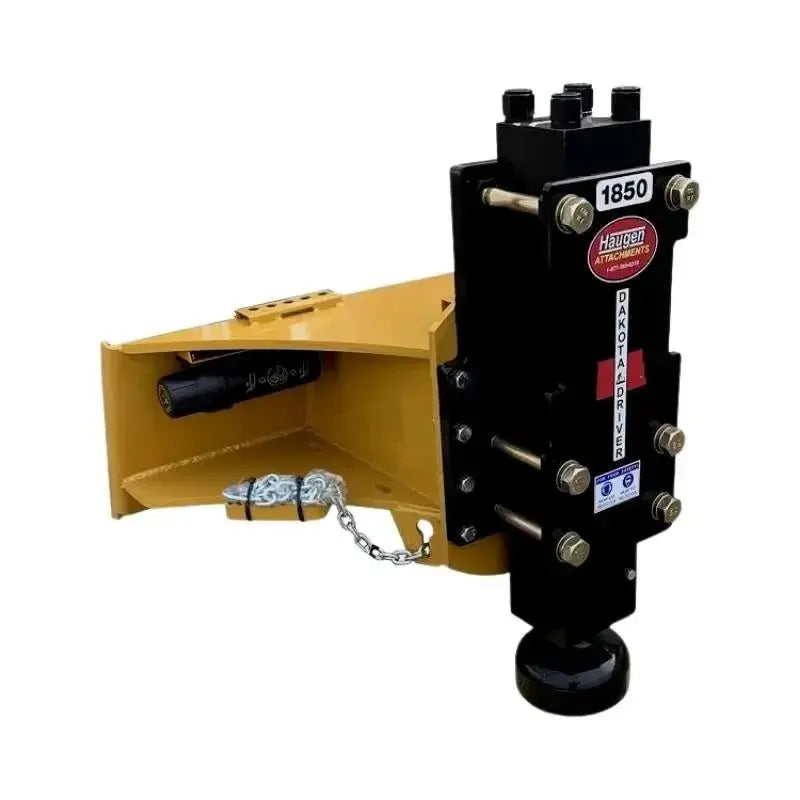

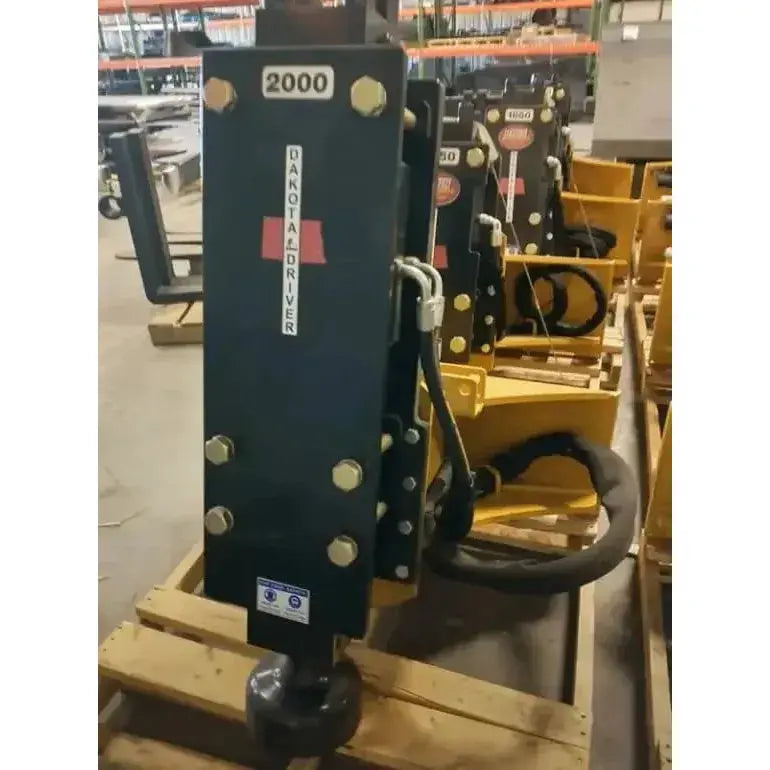

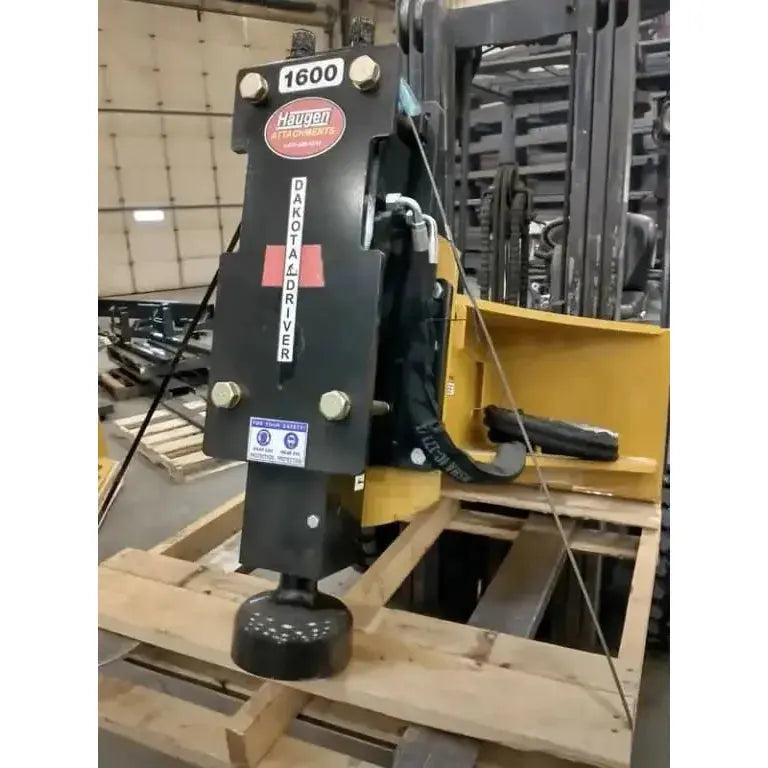

Dakota Post Driver: A Robust Solution for Precision and Versatility

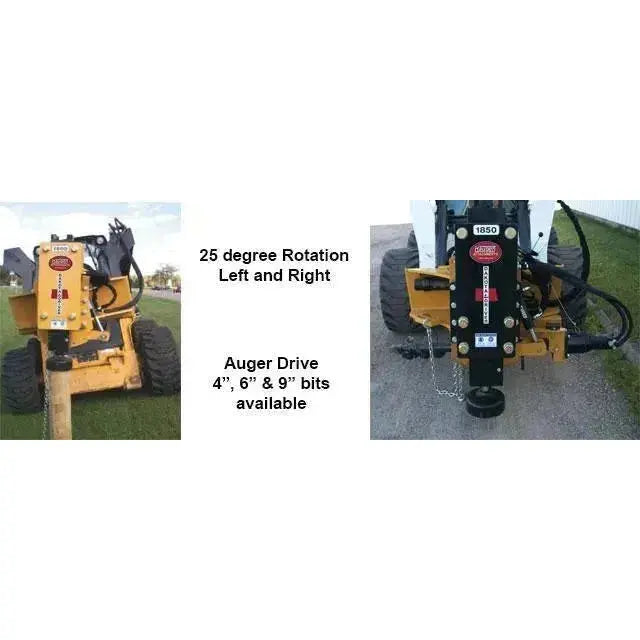

The Dakota Post Driver has gained immense popularity, standing out for its superior build quality and exceptional performance. Crafted with a 3/4-inch heavy-duty mounting plate, this Post Driver ensures longevity and durability, making it a trusted choice in the market. Equipped with standard features such as a plumb bob chain and depth gauge, it guarantees accurate post-driving. For those tackling challenging terrains with uneven ground, the optional tilt mount provides additional flexibility.
Rental companies favor this post driver due to its user-friendly design and minimal maintenance requirements, ensuring peak performance at all times. Utilizing hydraulic flow from your machine, the Dakota Post Driver safely vibrates posts into the ground. But wait, there's more – it's not just a post driver; it seamlessly converts into a concrete breaker with a simple head switch.
Featuring the Long Rock Spike, this Driver effortlessly tackles rock soil by fracturing obstacles in its path. All models are readily available, and our attachment experts are ready to assist with any inquiries. Remember our mantra: "Think Quality - Think Safety - Think Haugen."
Key Features:
Effortless Post Driving: Simplifies the post driving process, ensuring efficiency and precision.
Versatile Post Compatibility: Safely vibrates wood or steel posts into the ground with ease.
Ideal for Rental Applications: Designed for easy operation, making it perfect for rental use.
Heavy-Duty Mounting Plate: Boasts a 3/4-inch thick mounting plate for robust and enduring performance.
Standard Tools for Accuracy: Comes with a standard plumb bob chain, depth gauge, and post puller chain for precise post installation and removal.
Various Models and Options: Four models are available, with several options and tools to cater to diverse needs.
1-Year Warranty: Backed by a 1-year warranty, assuring reliability and performance.
Specifications:
Model
PD 2000
PD 1850
PD 1600
PD 1450
Operating Weight
1700 lbs
1325 lbs
1150 lbs
315 lbs
Striking Frequency (BPM)
400-800
400-800
500-900
700-1200
Hydraulic Flow Required
15-45 GPM
13-24 GPM
11-18 GPM
5-8 GPM
Working Pressure
2200 PSI
2200 PSI
2000 PSI
2000 PSI
Energy Class
1400 lbs
1150 lbs
750 lbs
-
Tool Diameter
3.25"
2.9"
2.7"
-

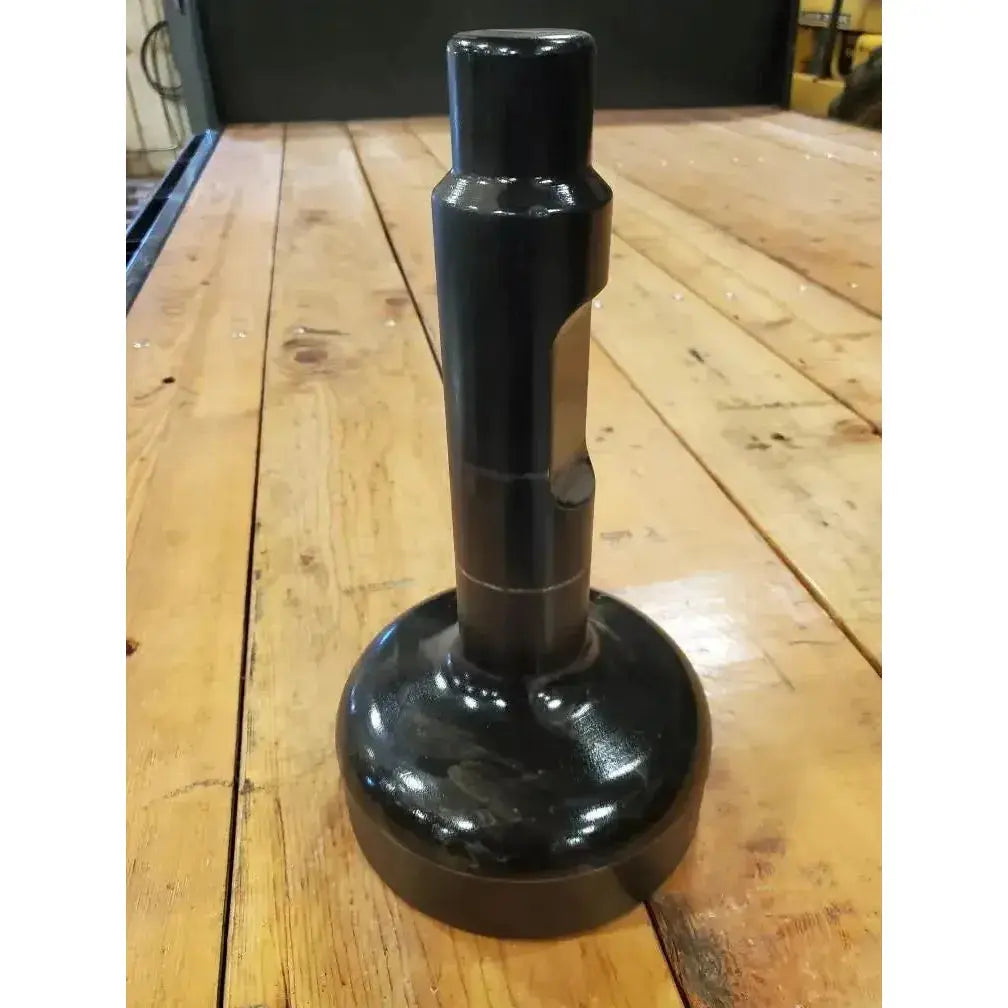

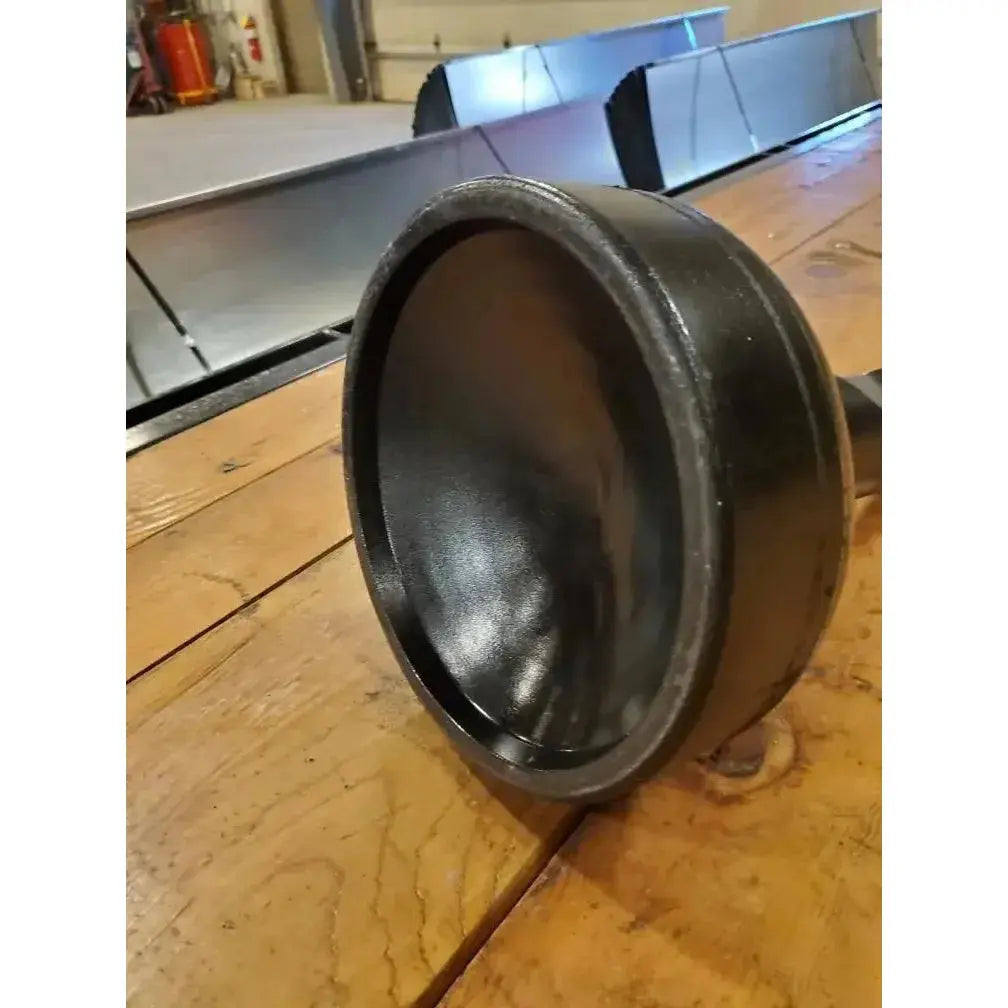

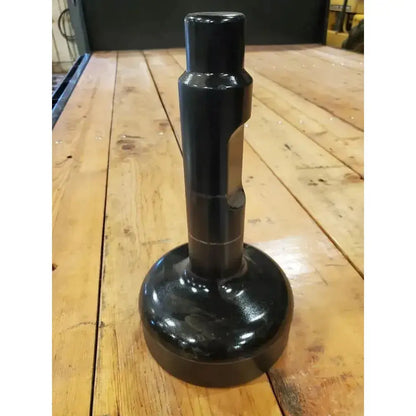

Post Driving Tool OD Diameter
9"
9"
8"
5"
Post Driving Tool ID Diameter
8 1/4"
8 1/4"
7 1/8"
4 1/2"
Warranty
1 Year
1 Year
1 Year
1 Year
Choose the Dakota Post Driver for precision, versatility, and the durability to withstand the test of time.
