Bale Spears | Top Dog Attachments

Description:

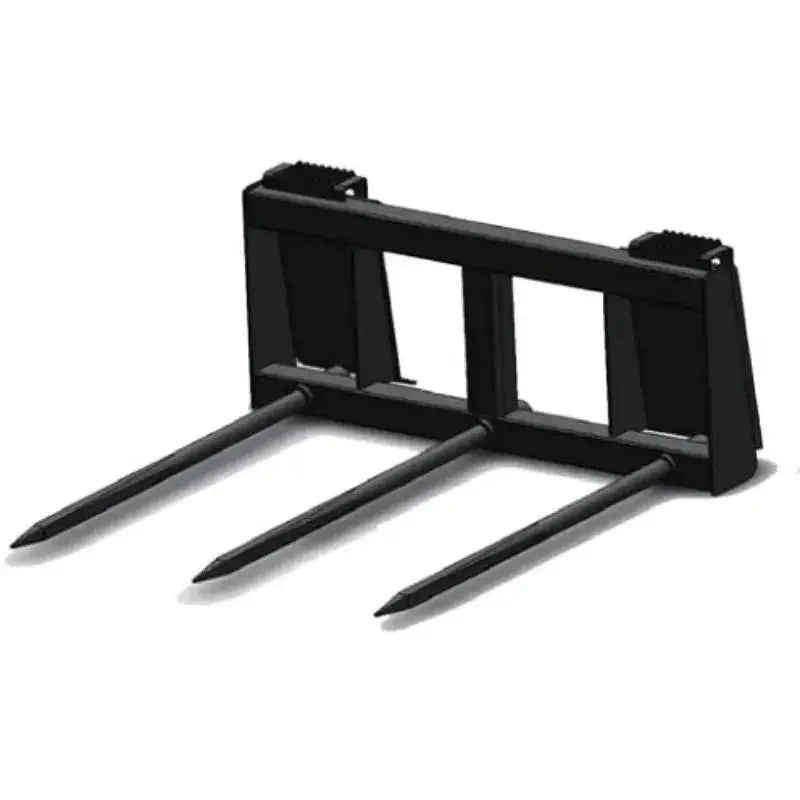

Top Dog Attachments Bale Spears: Versatile Solutions for Efficient Bale Handling

Top Dog Attachments offers a range of Bale Spears designed to streamline the process of transporting and loading bales from the ground onto trailers or into bale feeders. With a focus on versatility and robust construction, these attachments are ideal for various bale-handling applications.

Key Features:

1. Available in 4 Variants:

   • Top Dog Attachments provides a selection of four variants to cater to different bale-handling needs. Whether you require a Double Bale Spear, Triple Bale Spear, Square Bale Spear, or RB3 Bale Spear, these attachments are designed for efficiency.

2. Proudly Made in the USA:

   • The Bale Spears from Top Dog Attachments are proudly manufactured in the USA, ensuring quality craftsmanship and attention to detail.

Specifications:

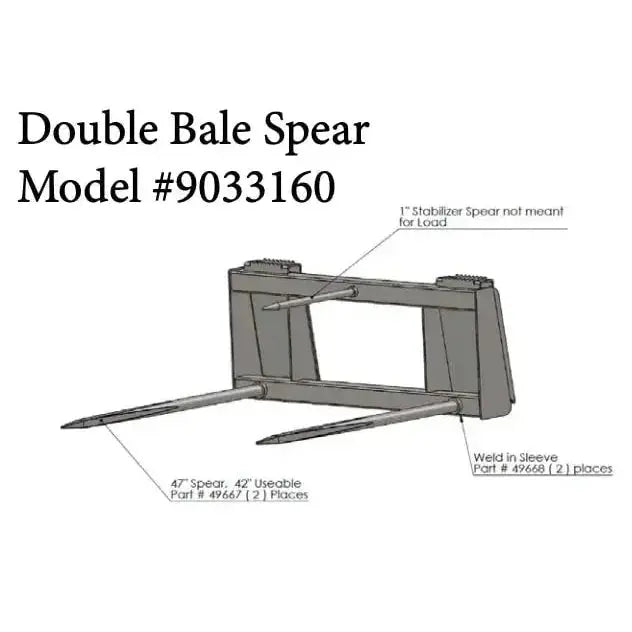

1. Double Bale Spear:

   • Width: 46”
   • Height: 20”
   • Overall Depth: 50”
   • Width Between Spears: 36”
   • Top Spears: 47” Spear (Bolt-in Spear, 42” Usable Length)
   • Bottom Spears: 47” Spear (Bolt-in Spear, 42” Usable Length)
   • Max Lift: Total Max Load 3000 lbs
   • Weight: 265 lbs

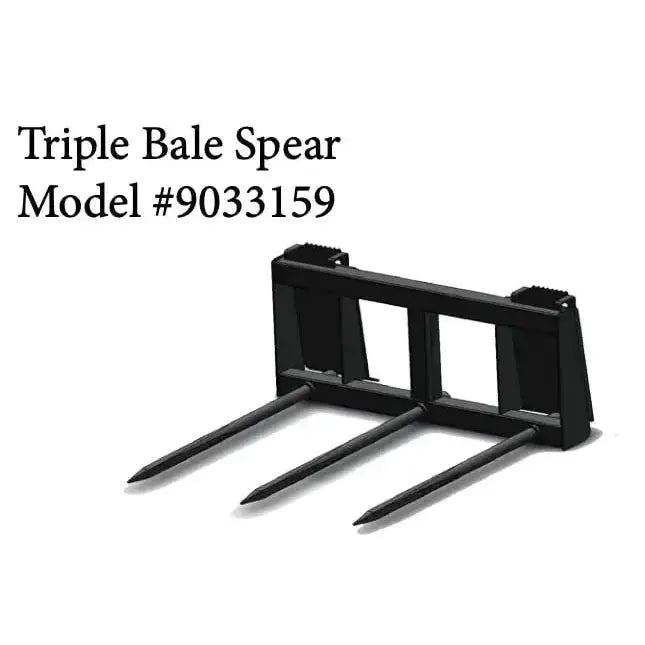

2. Triple Bale Spear:

   • Width: 46”
   • Height: 20”
   • Overall Depth: 50”
   • Width Between Spears: 36”
   • Top Spears: 47” Spear (Bolt-in Spear, 42” Usable Length)
   • Bottom Spears: 47” Spear (Bolt-in Spear, 42” Usable Length)
   • Max Lift: Total Max Load 3000 lbs
   • Weight: 224 lbs

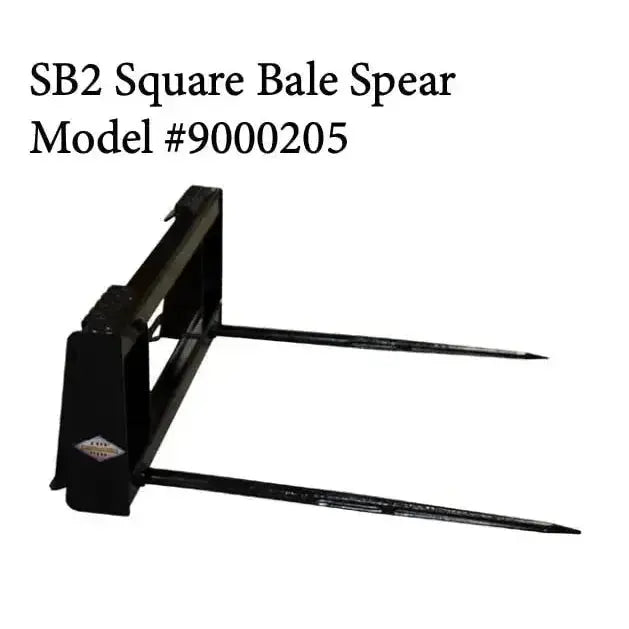

3. Square Bale Spear:

   • Width: 46”
   • Height: 20”
   • Overall Depth: 50”
   • Width Between Spears: Not specified
   • Top Spears: 47” Spear (Bolt-in Spear, 42” Usable Length)
   • Bottom Spears: 47” Spear (Bolt-in Spear, 42” Usable Length)
   • Max Lift: Total Max Load 3000 lbs
   • Weight: 180 lbs

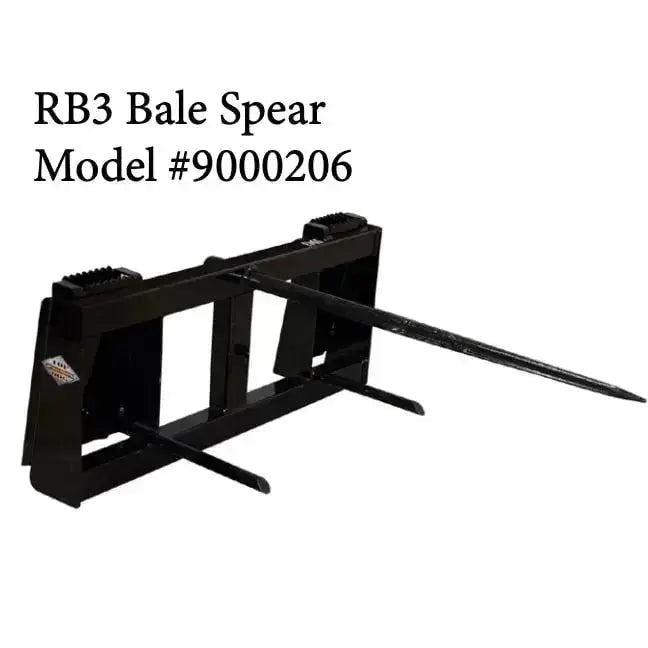

4. RB3 Bale Spear:

   • Width: 45.75”
   • Height: 19.5”
   • Overall Depth: 49.9”
   • Width Between Spears: Not specified
   • Top Spears: 41.10” Spear (Useable Length), 47” Overall Length
   • Bottom Spears: Not specified
   • Max Lift: Total Max Load 3000 lbs
   • Weight: 275 lbs

Note: Specifications are subject to change, and users are advised to refer to the latest product information.

Top Dog Attachments Bale Spears offer reliability and efficiency, making them valuable tools for agricultural and hay-handling tasks. Their sturdy construction and thoughtful design make them a dependable choice for skid steer operators seeking quality bale-handling solutions.
