Description:

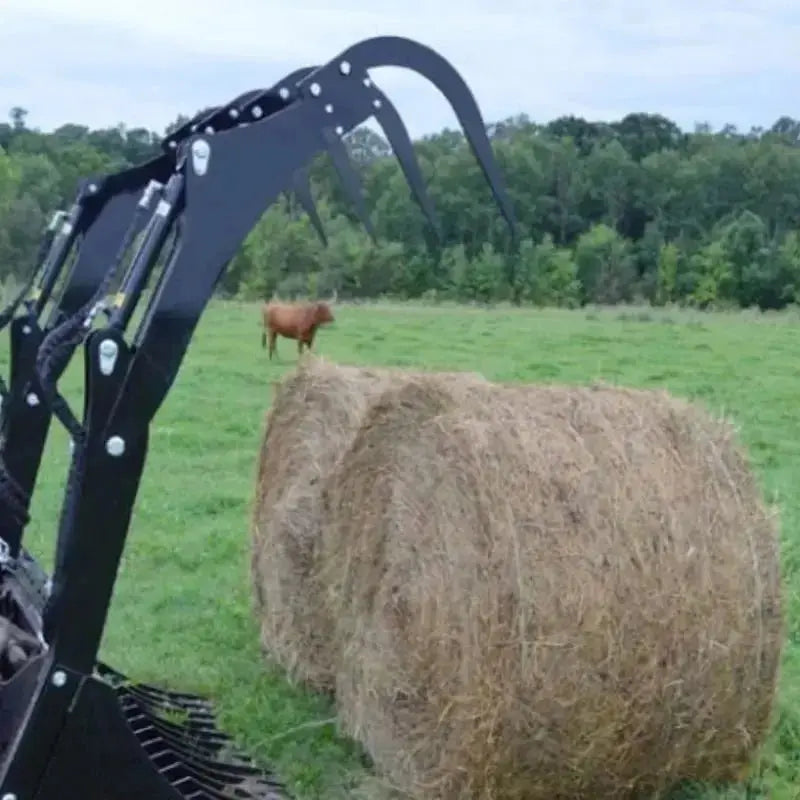

Top Dog Attachments Bale Grapple

The Bale Grapple from Top Dog Attachments is a robust and efficient tool designed to handle and transport large, loose round bales, as well as perform various tasks suited to a skeleton grapple. This attachment is crafted to enhance job efficiency and make challenging tasks more manageable.

Key Features:

1. Variants:

   • Choose from three variants: 72″, 79″, and 82″, allowing flexibility to match specific requirements.

2. Grapple Only Option:

   • Available as a grapple-only option, providing versatility in its use.

3. Maximum PSI:

   • With a maximum PSI of 3,000, it ensures powerful and reliable operation.

4. Grade 50 Tines:

   • Tines are constructed with Grade 50 material at 3/8″, ensuring durability and strength.

5. Made in the USA:

   • Proudly manufactured in the USA, ensuring quality craftsmanship.

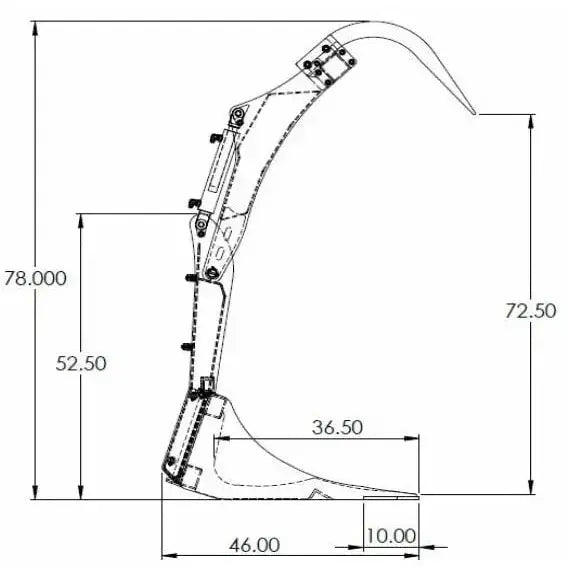

Specifications:

• Width:

  • 72″
  • 79″
  • 82″

• Overall Height - Closed:

  • 55″ (for all variants)

• Overall Height - Open:

  • 78″ (for all variants)

• Overall Depth:

  • 60″ (for all variants)

• Grapple Opening:

  • 73″ (for all variants)

• Depth of Bucket:

  • 40″ (for all variants)

• Tines:

  • 3/8″ Grade 50 (for all variants)

• Cutting Edge:

  • 1/2″ x 10″ Grade 50 (for all variants)

• Top & Bottom Tube:

  • 3″ x 4″ x 1/4″ (for all variants)

• Grapple Tines:

  • 5/8″ T-1 Laser Cut (for all variants)

• Hydraulic Hoses:

  • 3/8″ (for all variants)

• Hydraulic Couplers:

  • Flat Face (for all variants)

• Cylinder:

  • 2 1/2″ x 12″ Welded Clevis (for all variants)

• PSI Max:

  • 3,000 PSI (for all variants)

• Pivot Points:

  • Grease Zerks (for all variants)

• Weight:

  • 72″: 1204 lbs
  • 79″: 1289 lbs
  • 82″: 1342 lbs

For precise and efficient handling of large round bales and other materials, the Top Dog Attachments Bale Grapple stands as a reliable and durable choice.
